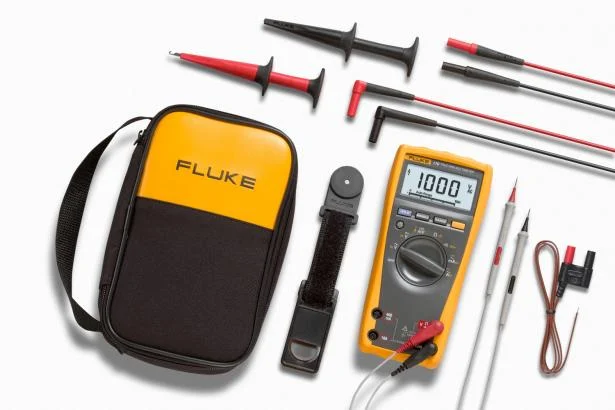

Fluke 179 Digital Multimeter and EDA2 Accessories Kit (FLUKE-179/EDA2)(DMM AND DELUXE ACCESSORY COMBO KIT)
Fluke 179 Digital Multimeter and EDA2 Accessories Kit
Model#: Fluke 179/EDA2 Kit
Part#: 2718166
UPC#: 0 95969 36279
Key features
- A full-featured, precision multimeter for troubleshooting electrical and electronic systems
- Delivers accurate true-rms ac current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
- SureGrip™ test leads, test probes and alligator clips
- Includes ToolPak magnetic meter-hanger for easy viewing when using two hand to make measurements
Product overview: Fluke 179 Digital Multimeter and EDA2 Accessories Kit
Industrial electricians work in tough environments. That's why the Fluke 179 True-rms Digital Multimeter is combined with an industrial-strength test lead probe kit in a compact lightweight soft case.
Heavy-duty electrical service
The Fluke 179 True-rms digital multimeter is the industry-standard troubleshooting tool for electrical and electronic systems. The included 80BK-A Integrated digital multimeter temperature probe eliminates the need to carry a separate thermometer. You can hang your meter where it’s easy to see with the TPAK ToolPak™ Magnetic Meter Hanger, included in the kit. The C35 soft carry case that keeps everything ready to take with you includes three SureGrip™ accessories
- TL224 Insulated Test Leads
- AC280 Hook Clips
- TL910 Electronic Test Probes
The right measurement functions
The 179 is a true-rms multimeter, providing accurate measurements up to:
- 1000 V ac/dc;
- 10 A ac/dc;
- Resistance to 50 MΩ;
- Capacitance to 10,000 μF,
- Frequency to 100 kHz;
- Temperature from -40 °C to 400 °C (-40 °F to 752 °F).
The meter offers both manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording. The large backlit digital display is easy to in dark areas and includes an analog bar graph to view trending or unstable signals.
Specifications: Fluke 179 Digital Multimeter and EDA2 Accessories Kit
| Specifications | ||
| Voltage DC | Accuracy1 | ±(0.09% + 2) |
| Max. resolution | 0.1 mV | |
| Maximum | 1000 V | |
| Voltage AC | Accuracy1 | ±(1.0% + 3) |
| Max. resolution | 0.1 mV | |
| Maximum | 1000 V | |
| Current DC | Accuracy1 | ±(1.0% + 3) |
| Max. resolution | 0.01 mA | |
| Maximum | 10 A | |
| Current AC | Accuracy1 | ±(1.5% + 3) |
| Max. resolution | 0.01 mA | |
| Maximum | 10 A | |
| Resistance | Accuracy1 | ±(0.9% + 1) |
| Max. resolution | 0.1 Ω | |
| Maximum | 50 MΩ | |
| Capacitance | Accuracy1 | ±(1.2% + 2) |
| Max. resolution | 1 nF | |
| Maximum | 10,000 µF | |
| Frequency | Accuracy1 | ±(0.1% + 1) |
| Max. resolution | 0.01 Hz | |
| Maximum | 100 kHz | |
| Temperature | Accuracy1 | ±(1.0% + 10) |
| Max. resolution | 0.1°C | |
| Range | -40°C / 400°C | |
| 1. Accuracies are best accuracies for each function | ||
| Environmental Specifications | ||
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -30°C to +60°C | |
| Humidity (without condensation) | 0% - 90% (0°C - 35°C) 0% - 70% (35°C -50°C) | |
| Safety Specifications | ||
| Overvoltage category | EN 61010-1 to 1000 V CAT III EN 61010-1 to 600 V CAT IV | |
| Agency approvals | UL, CSA, TÜV listed and VDE Pending | |
| Mechanical and General Specifications | ||
| Size | 43 x 90 x 185 mm | |
| Weight | 420 g | |
| Warranty | Lifetime | |
| Battery life | Alkaline ~200 hours typical, without backlight |
| Brand | Fluke |
