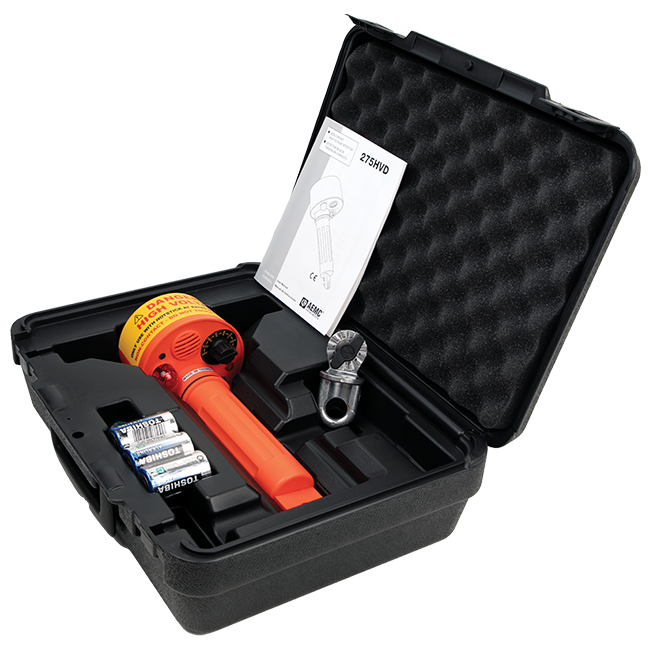

AEMC 275HVD Non-Contact High Voltage Detector Model 275HVD (240V to 275kV, Manual self-test) (2131.12)
Non-Contact High Voltage Detector Model 275HVD
The Model 275HVD is designed to detect the presence of high voltage without physical contact. An 8 position rotary switch selects the detection range. As the sensor is moved closer to the voltage carrying conductor, its sensor head picks up the radiated electric field. Once the threshold is reached, the buzzer sounds and a bright red warning light alerts the operator of live conductors.
The Model 275HVD is powered by three standard Alkaline C cell batteries and can be used both in- and out-of-doors. A universal spline on the back-end facilitates attachment to any standard hot stick. A self-test position ensures that all circuitry and annunciators are working properly before use.
| Detection Frequency | (45 to 70) Hz |
| Ranges | 240 V, 2 kV, 6 kV, 11 kV, 22 kV, 33 kV, 132 kV, 275 kV |
| Indicator | Bright red LED and audible buzzer |
| Detection | Non-contact. Selection range is detected at approximately 10 in (25 cm) from the voltage. Greater detection distances can be obtained at lower voltage positions. |
| Self-Test | User selectable |
| Power Source | (3) 1.5 V C cell batteries (included) |
| Weight | 1.3 lbs (590 g) with battery |
| Operation Temperature | (5 to 130) °F (-15 to 55) °C |
| Storage Temperature | (-4 to 150) °F (-20 to 65) °C |
| Relative Humidity | (0 to 93) % at 104 °F (40 °C) |
| Shock Test | IEC 68-2-29 |
| Vibration Test | EN 61010 clause 8.3 |
| Drop Test | EN 61010 clause 8.4 |
| Impact Test | EN 61010 clause 8.2 |
| Safety Compliance | CE Approved, EN 61326-1, EN 61000-4-2, EN 61000-4-3, EN 55011 |
| Ingress Protection | IP 65 |
Why Choose AEMC® Instruments Non-Contact High Voltage Detector?
Your safety is our concern. We know it’s critical for you to have the ability to save lives by safely detecting high voltages. That’s why we offer our non-contact High Voltage Detector model 275HVD. The Model 275HVD detects the presence of voltages from 80V up to 275kV without physical contact. The detector instrument can be used both indoors and outdoors.
Reliable Safety Sensor Indicators
Our instrument offers a self-test function that works through an actual sensing circuit, it does not just turn on a light and buzzer.
As the sensor is moved closer to the voltage carrying conductor, its sensor head picks up the radiated electric field. Once the threshold is reached, a loud buzzer sounds and a bright red LED voltage indicator light that is visible from a long distance, alerts the operator of live conductors. A self-test feature ensures all circuitry and annunciators are working properly.
Hot Stick Attachment
A universal spline on the instruments back facilitates attachment to any standard hot stick. Our durable handle will not come loose at the end of the hot stick when flexed.
Features
- Works on unshielded cables only
- Wide range of detection; finds 80V to 275kV; one instrument fits all applications
- Eight switch selectable voltage sensitivity ranges
- Lightweight, minimizes sway at the end of long hot sticks
- Audible and visual indication of live voltage
- Self-test position ensures that all system functions and indicators are working properly by energizing the complete system
- Designed for use with hot sticks incorporating a shotgun adapter
- Powered by three standard Alkaline C cell batteries
