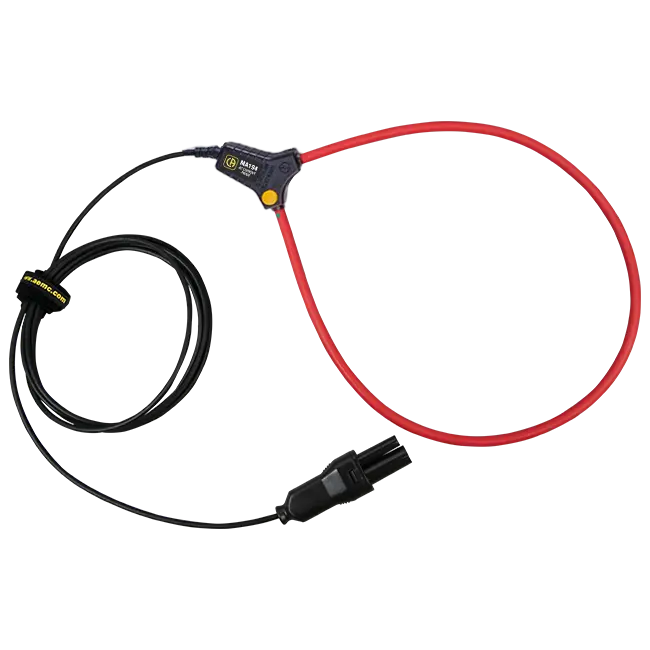

AEMC MA194-24-BK MiniFlex® Sensor Model MA194-24-BK for Models 3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series Replaces Cat #2140.78 (2140.80)

SKU: 2140.80 | MA194-24-BK

This combination does not exist.

AEMC Instruments

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

MiniFlex® Sensor Model MA194-24-BK (Replaces Cat. #2140.78)

MiniFlex® Sensor Model MA194-24-BK (Waterproof, IP67) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8435, 8436, and the PEL Series

Clamping Diameter	24 in (609 mm)
Current Range	3000 AAC
Measurement Range	0.1 to 3000 AAC (10,000 A peak)
Lead Length	10 ft (3 m)
Output Termination	Proprietary connector
Accuracy (Typical)	1%
Power Source	N/A
Compatibility	AEMC PowerPads and PELs (limited range with models 8220, 8230, 8435)
Operating Temperature	(14 to +131) °F (-10 to +55) °C; (10 to 85) % RH
Storage Temperature	(-40 to +158) °F (-40 to +70 ) °C; (10 to 90) % RH
Dimensions	(4 x 2.5 x 1.1) in (103 x 63 x 28) mm
Weight	1.94 oz (55 g)
Pollution Degree	2
Protection	IK 04, IP40
Safety Compliance	IEC 61010-1, EN/IEC 61010-2-032, 1000 V CAT III, 600 V CAT IV
