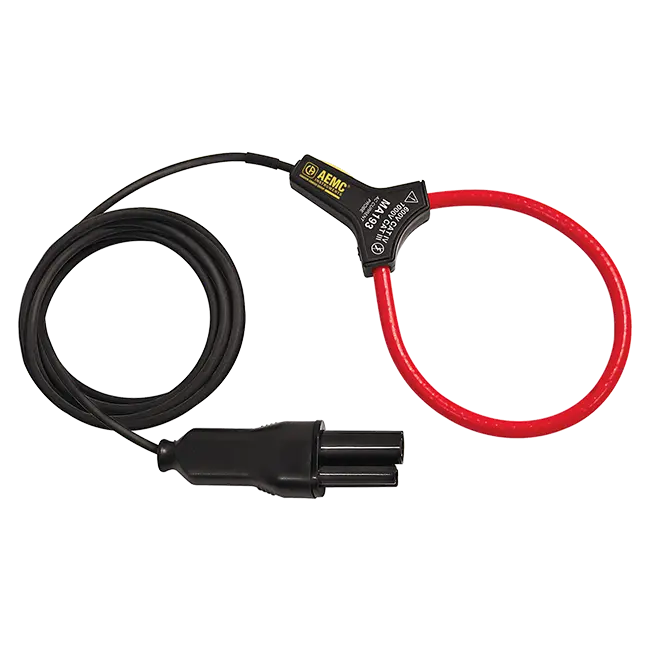

$ 368.50AEMC MA193-14-BK MiniFlex® Sensor Model MA193-14-BK for Models 3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series (2140.50)
SKU: 2140.50 | MA193-14-BK
MiniFlex® Sensor Model MA193-14-BK
MiniFlex® Sensor Model MA193-14-BK for Models 3945-B, 8220, 8230, 8333, 8335, 8336, 8435, and the PEL Series
Specifications
| Clamping Diameter | 2.75" (70mm) |
| Current Range | 3000AAC |
| Measurement Range | 0.1 to 3000AAC (10,000A peak) |
| Lead Length | 10 ft (3m) |
| Output Termination | Proprietary connector |
| Accuracy (Typical) | 1% |
| Power Source | N/A |
| Compatibility | AEMC PowerPads and PELs (limited range with models 8220, 8230, 8435) |
| Operating Temperature | 14° to +131°F (-10° to +55°C); 10 to 85% RH |
| Storage Temperature | -40° to +158°F (-40° to +70 °C); 10 to 90% RH |
| Dimensions | 4 x 2.5 x 1.1” (103 x 63 x 28mm) |
| Weight | 1.94 oz (55g) |
| Pollution Degree | 2 |
| Protection | IK 04, IP40 |
| Safety Compliance | IEC 61010-1, EN/IEC 61010-2-032, 1000V CAT III, 600V CAT IV |
User Manuals
Current Probes and Sensors for Power Quality Meters
Brochures
AEMC® Instruments Product Line Brochure
AEMC® Instruments Product Line Brochure (FR CAN)
Comparison Charts
Current Probe Selection Chart - English
Power Quality Analyzers and Loggers Sensor Compatibility
Application Notes
Rogowski Coil Primer
| Brand | AEMC |
