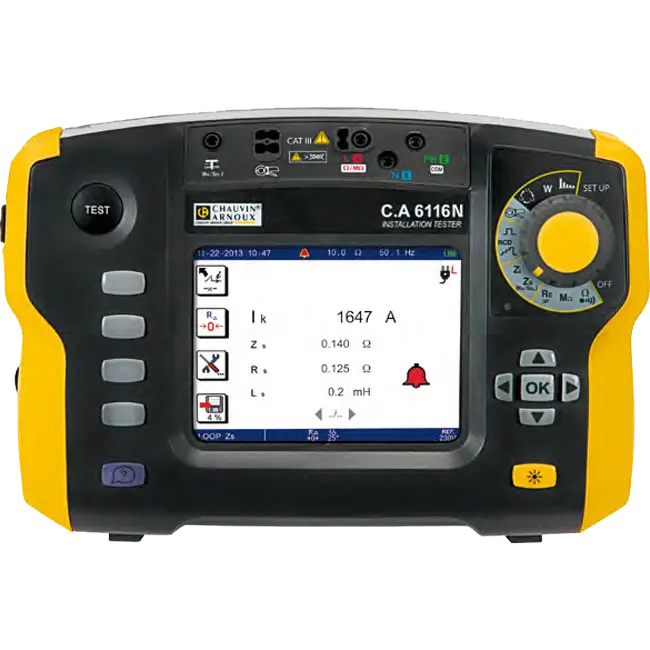

AEMC Multi-Function Installation Tester Model C.A 6116N Kit (US) (includes C177A, DataView® Software)(2138.10)
SKU: 2138.10 | C.A 6116N Kit
Multi-Function Installation Tester Model C.A 6116N
The C.A 6116N is a multi-function instrument for testing electrical installations for compliance with national and international standards (IEC 60364-6, NF C 15-100, VDE 100, FD C 16-600, and others). It features advanced design, ergonomics, simplicity, performance, speed, and accuracy. Suitable for all neutral systems (TT, TN, IT), the instrument is ideal for all sectors including industrial, residential, and others. It measures continuity, resistance, insulation, earth and selective earth, loop impedances, type A and AC RCDs, as well as voltage, frequency, current (via a clamp), active power, harmonics, and phase rotation. The instrument can store up to 1,000 tests, which can be downloaded and processed with the included DataView® data analysis software.
Specifications
| CONTINUITY / RESISTANCE | |
| I Rated • Range • Resolution | I > 200 mA • 39.99 Ω • 0.01Ω ± (1.5 % of R + 2 cts) 12 mA • (39.99 and 399.9) Ω • (0.01 and 0.1) Ω •± (1.5 % of R + 5 cts) with beep |
| Range • Resolution • Accuracy | 4 kΩ • 1 Ω • ±(1.5 % of R + 5 cts) (40 to 400) kΩ • (10 - 100) Ω • ±(1.5 % of R + 2 cts) |
| INSULATION | |
| Rated Voltage | U test: (50, 100, 250, 500, and 1000) VDC |
| Range • Resolution • Accuracy | 0.01 MΩ to 2 GΩ • 0 kΩ to 1 MΩ • ± (5 % of R + 3 cts) |
| Short Circuit Current | ≤ 3 mA |
| 3P GROUND | |
| Range • Resolution • Accuracy | (0.50 to 40) Ω • 0.01 Ω • ± (2 % of R + 10 cts) (40 Ω to 15 kΩ) • (0.1 to 1) Ω • ± (2 % of R + 2 cts ) (15 to 40) kΩ • 10 Ω • ± (10 % of R + 2 cts ) |
| Others | Measurement of resistance of auxiliary stakes RH & RS (up to 40 kΩ) |
| Ufk | Complies with SEV 3569 |
| 1P SELECTIVE GROUND | |
| Range Resolution Accuracy | (0.20 to 39.99) Ω (40 to 399.9) Ω (0.01 – 0.1) Ω ± (10 % of R + 10 cts) (ISel via clamp) |
| LOOP IMPEDANCE (Zs (L-PE0 AND Zi (L-N OR L-L) – 1P LIVE GROUND | |
| Live Ground Installation Voltage Frequecy | (90 to 500) V (15.8 to 17.5) Hz (45 to 65) Hz |
| High-current mode with TRIP Zs (L- PE) & Zi (L- N or L - L) Range • Resolution • Accuracy | Max. test current: 7.5 A (0.100 to 0.5) Ω • 0.001 Ω • ± (10 % of R + 20 cts) (0.5 to 3.999) Ω • 0.001 Ω • ± (5 % of R + 20 cts) (3.999 to 39.99) Ω • 0.01 Ω • ±(5 % of R + 2 cts) (39.99 to 399.99) Ω • 0.1 Ω • ± (5 % of R + 2 cts) |
| NO TRIP mode (Zs (L – PE) Only) Range • Resolution • Accuracy | Test current (6, 9,and 12) mA (as required) (0.20 to 0.99) Ω • 0.01 Ω • ± (15 % of R + 10 cts) (1.00 to 1.99) Ω • 0.01 Ω • ± (15 % of R + 3 cts) (2.00 to 39.99) Ω • 0.01 Ω • ± (10 % of R + 3 cts) (40.00 to 399.9) Ω • 0.1Ω • ± (5 % of R + 2 cts) (400 to 3999) Ω • 1 Ω • ± (5 % of R + 2c ts) |
| Calculation of IK short circuit current (PFC (Zs), I Sc PSCC (Zi) | Fault current and short-circuit current: (0.1 to 20) kA |
| Others | Measurement of the resistive and inductive components of Zs and Zi impedances |
| AC and type RCDs | |
| Installation Voltage Frequency | (90 to 500 ) V (15.8 to 17.5) Hz and (45 to 65) Hz |
| IΔn | 10/30/100/500/650/1000 (90 to 280) V or variable ramp and pulse test |
| N-Trip Test | At ½ IΔn – Duration 1000 ms or 2000 ms |
| Ramp Mode | 0.2 to 0.5 x IΔn(Uf) / 0.3 x IΔn to 1.06 IΔn increments of 3.3% x IΔn |
| Trip test: R: Range / Resolution / Accuracy | 0.2 to 0.5 x IΔn(Uf) / 0.5 x IΔn / 2 x IΔn(selective) / 5 x IΔn Pulse: 0 to 500ms/0.1 and 1ms / 2ms, Ramp mode: 0 to 200ms / 0.1ms / 2 ms |
| OTHER MEASUREMENTS | |
| Current by Current Probe C177A | 5.0 mA t0 199.9 A |
| Current by Current Probe MN77 | (1 mA*) 5.0 mA to 19.99 A |
| Voltage | 0 to 550 VAC/DC / DC and (158 to 500) Hz |
| Frequency | (10 to 500) Hz |
| Phase Rotation | (20 to 500) VAC |
| Active Power | (0 to 110) kW single phase – (0 to 330) kW three-phase Simultaneous display of voltage and current waveforms |
| Harmonics | Voltage and Current up to 50th order THD-F / THD-R |
| GENERAL SPECIFICATIONS | |
| Display | Large 5.7 inch backlit graphic color LCD 320 x 240 pixels |
| Storage/Communication | USB for data transfer to DataView® software (included) |
| Power Supply | Rechargeable Lithium-Ion 10.8 V, 5.8 A • h |
| Battery Life | Up to 30 hours |
| Protection | IP 53 / IK04 |
| Dimensions Weight | (11 x 7.48 x 5.04) in (280 x 190 x 128) mm 4.85 lbs (2.2 kg) |
| EMC | IEC61326-1 |
| Electrical Safety | IEC61010-1 – 600 V CAT III 300 V CAT IV – IEC 61557 |
