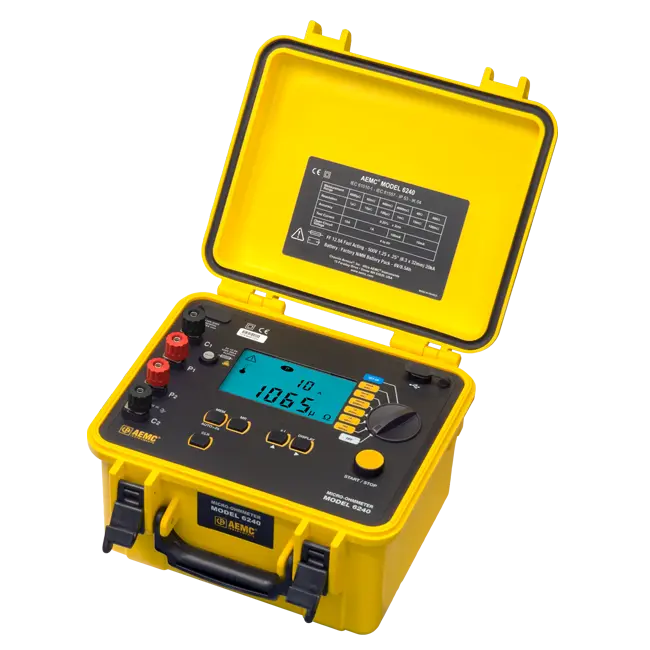

Micro-Ohmmeter Model 6240

The 10A Micro-Ohmmeter Model 6240 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method of testing, the Model 6240 Micro-Ohmmeter accurately measures very low resistance within 0.25%.

Resistance measurements are automatically calculated from 5 µΩ to 400 Ω with resolutions down to 1 µΩ. The Model 6240 has selectable test currents of 10 A, 1 A, 100 mA and 10 mA and includes a polarity reversal function. The Model 6240 is designed to conduct tests on both resistive and inductive material. Up to 99 measurements can be stored and printed directly to a printer or from a PC.

DataView ® (included) allows you to configure the instrument, temperature-compensate the test results, store data, and print reports.

Specifications

• Measurement Range: 5.0 to 3999 µΩ / 4.0 to 39.99 mΩ / 40.0 ­to 399.9 mΩ / 400 to 3999 mΩ / 4.0 to 39.99 Ω / 40.0 to 399.9 Ω
• Resolution: 1 µΩ / 10 µΩ / 100 µΩ / 1 mΩ / 10 mΩ / 100 mΩ
• Accuracy: ±(0.25%R + 2ct)
• Measurement Current: 10.2 A ±2% / 1.02 A ±2% / 102 mA ±2% / 10.2 mA ±2%
• Open Voltage: 4 to 6V
• Inductance: 0.5 H Max
• Measurement Range: 0.01 to 3.999 mV / 4 to 39.99 mV / 40 to 399.9 mV / 0.4 to 3.999 V / 4 to 4.70 V
• Resolution: 1 µV / 10 µV / 100 µV / 1 mV / 10 mV
• Measurement Range: 5.0 to 39.99 mA / 40.0 to 399.9 mA / 0.4 to 3.999 A / 4 to 11.00 A
• Resolution: 10 µA / 100 µA / 1 mA / 10 mA
• Storage Memory: 99 tests, supplied with DataView® software for download and reporting
• Automatic Storage of Test Results: Yes
• Battery: Rechargeable NIMH battery pack 6V, 8.5Ah.
• Battery Life: 10 A / ≥ 850 tests with a duty cycle of 5 seconds on and 25s off
• 1 A: ≥ 3500 tests with a duty cycle of 5 seconds on and 25s off
• 100 mA: ≥ 4500 tests with a duty cycle of 5 seconds on and 25s off
• 10 mA: ≥ 5000 tests with a duty cycle of 5 seconds on and 25s off
• In standby mode: Battery life 4 to 6 months
• Dimensions (L x W x H): 10.70 x 9.76 x 7.18” (272 x 248 x 182 mm)
• Operating Temperature: -10° to +55°C (14° to 131°F) & 10 to 85% RH
• Storage Temperature (without battery): -40° to +70°C (-40° to 158°F) & 10 to 90% RH
• Altitude Operating: 2000 m
• IP Rating: IP 54 per IEC 60529 cover closed
• Safety: IEC/EN 61010-1 category III 50V, Pollution Degree 2
• Weight: 10 lb (4.54 kg)
