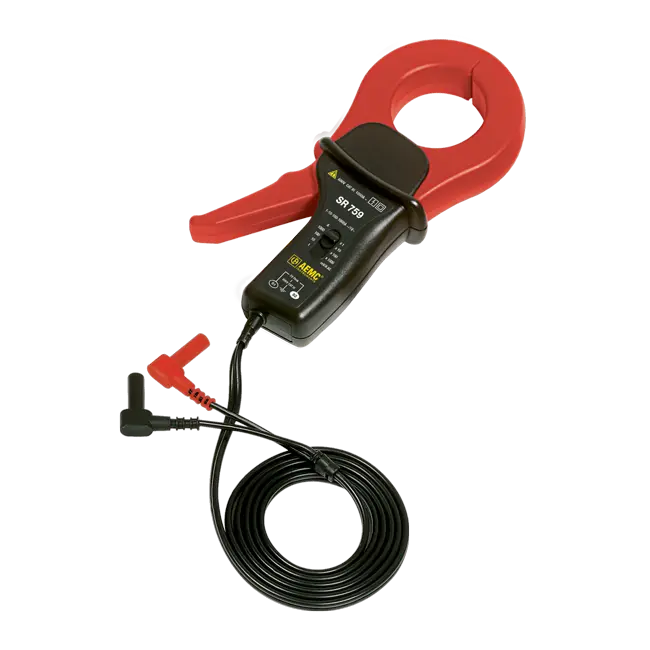

AC Current Probe Model SR759

The SR759 probe is a range selectable probe that offers four switch selectable ranges: 1, 10, 100 or 1000A. This probe has a voltage output proportional to the current measured in the jaw of the probe. The SR759 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs compatible with DMMs and other instruments. The high accuracy, high sensitivity and low phase shift makes this probe an excellent choice for use in a wide range of power quality applications, including very low or leakage current measurements.

Specifications

Maximum Conductor Size2.05 in (52 mm)
Current Range1 A, 10 A, 100 A, 1000 Arms AC
Measurement Range1 mA to 1.2 A, (0.01 to 12) A, (0.1 to 120) A, (1 to 1200) A
Output5 ft (1.5 m) lead with safety 4 mm banana plug
Transformation Ratio1:1, 10:1, 100:1, 1000:1
Output Signal1000 mV/AAC  (1V @ 1A),  100 mV/AAC  (1V @ 10A), 10 mV/AAC (1V @ 100A), 1 mV/AAC (1V @ 1000A)
Accuracy 50/60Hz0.7% ± 1 mV @ 1 A,  0.5 %  @ 10 A, 0.2 % @100 A, 0.2 % @ 1000 A
Frequency Range30 Hz to 3k Hz with current derating
Phase Shift at 50Hz1 ° @ 1000 A
Open Secondary Voltage8 V peak
Load Impedance10 MΩ, 100 kΩ min with derating
Overload1200 A for 15 min ON then 30 min OFF
Dimensions  (H x W x D)(4.37 x 8.50 x 1.77) in (111 x 216 x 45) mm
Weight 1.21 lbs (550 g)
Operating Temperature(14 to +122) °F  (-10 to +50) °C
Storage Temperature(-4 to +158) °F  (-20 to +70°) C
Operating Humidity90 % RH
Pollution Degree2
Ingress Protection (Ip)IP40
EMCEN 61326-1
Safety ComplianceEN/IEC 61010-1 600V CAT III, EN/IEC 61010-032
