AEMC SR752 AC Current Probe Model SR752 (1000A, 1mV/A, Lead)(2116.32)
SKU: 2116.32 | SR752

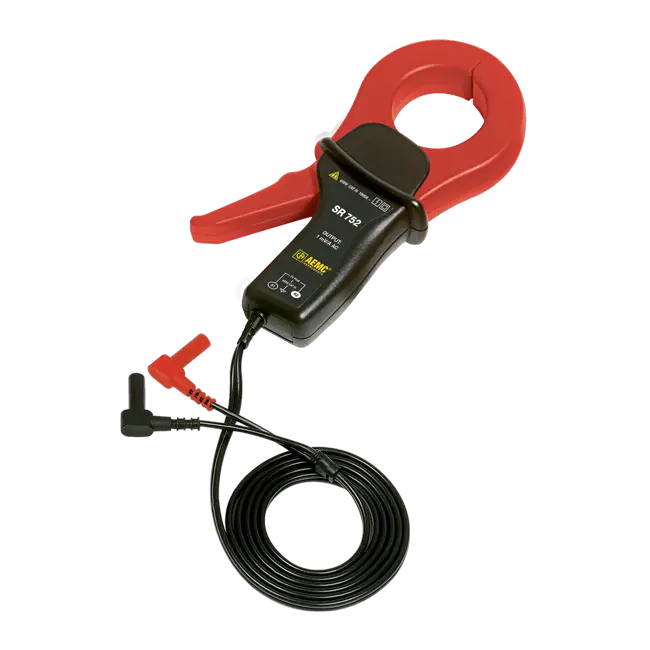

AC Current Probe Model SR752
The SR752 is a general purpose 1000 AAC current probe designed for use with DMMs, loggers and other instruments that have voltage inputs. It has a voltage output proportional at the rate of 1 mV per amp to the current measured in the jaw of the probe. The SR752 has an integral 5 ft (1.5 m) lead terminated by shrouded banana plugs.
Specifications
| Maximum Conductor Size | 2.05 in (52 mm) |
| Current Range | 1000 Arms AC |
| Measurement Range | (1 to 1200) A |
| Output | 5 ft (1.5 m) lead with safety 4 mm banana plug |
| Transformation Ratio | 1000:1 |
| Output Signal | 1 mV/AAC (1 V @ 1000 A) |
| Accuracy 50/60Hz | 0.3 % @ 1000 A |
| Frequency Range | 30 Hz to 5 KHz With current derating |
| Phase Shift at 50Hz | 0.7 ° @ 1000 A |
| Open Secondary Voltage | N/A |
| Load Impedance | 5 Ω max |
| Overload | 1200 A for 15 min, ON then 30 min OFF |
| Dimensions (H x W x D) | (4.37 x 8.50 x 1.77) in (111 x 216 x 45 mm) |
| Weight | 1.21 lbs (550 g) |
| Operating Temperature | (14 to 122) °F (-10 to 50) °C |
| Storage Temperature | (-4 to 158) °F (-20 to 70) °C |
| Operating Humidity | 90 % RH |
| Pollution Degree | 2 |
| Ingress Protection (IP) | IP40 |
| EMC | EN 61326-1 |
| Safety Compliance | EN/IEC 61010-1 600 V CAT III, EN/IEC 61010-032 |
User Manuals
Models SR751 and SR752
Datasheets
Model SR752 - English
Modelo SR752 - Español
Comparison Charts
Current Probe Selection Chart - English
Current Probe Selection Chart - Español
Application Notes
Glossary of Current Probe Terms
| Brand | AEMC |
