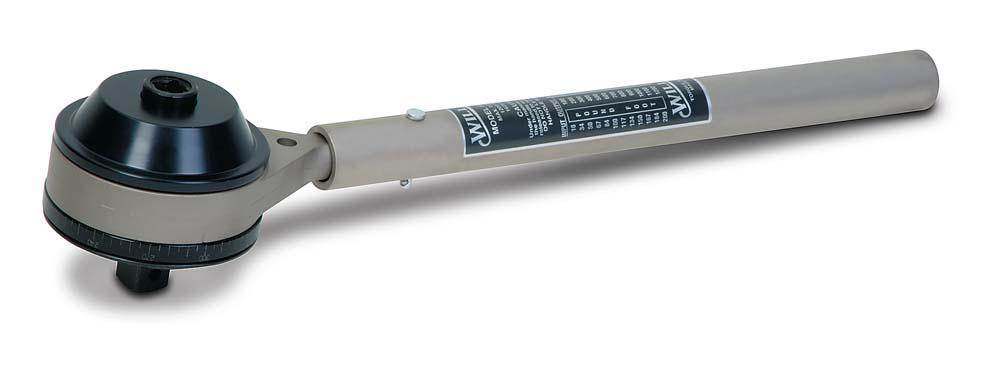

Williams Torque Multiplier 3200 ft-lb, Gear Ratio: 20.25:1, Torque Ratio: 18.5:1, Input: 1/2", Output: 1" (JHWTM-393)

Price:

$ 3,676.40

Williams Torque Multiplier 3200 ft-lb, Gear Ratio: 20.25:1, Torque Ratio: 18.5:1, Input: 1/2", Output: 1" (JHWTM-393)
  2. Shop
  3. Williams Torque Multiplier 3200 ft-lb, Gear Ratio: 20.25:1, Torque Ratio: 18.5:1, Input: 1/2", Output: 1" (JHWTM-393)
Klein Journeyman™ Compact Cable Cutter (J63215)
Klein Journeyman™ Compact Cable Cutter (J63215)
$ 26.99
$ 26.99
Williams Torque Multiplier 750 ft-lb, Gear Ratio: 4:1, Torque Ratio: 3:1, Input: 1/2", Output: 3/4" (JHWTM-290)
Williams Torque Multiplier 750 ft-lb, Gear Ratio: 4:1, Torque Ratio: 3:1, Input: 1/2", Output: 3/4" (JHWTM-290)
$ 772.80
$ 772.80

Williams Torque Multiplier 3200 ft-lb, Gear Ratio: 20.25:1, Torque Ratio: 18.5:1, Input: 1/2", Output: 1" (JHWTM-393)

https://www.etisupply.com/web/image/product.template/883777/image_1920?unique=4f05a6d

SKU: JHWTM-393

$ 3,676.40 3676.4 USD $ 3,676.40 $ 6,565.00

Not Available For Sale

($ 3,676.40 / Units)
  • Brand

This combination does not exist.

Williams Industrial 3200 ft-lb 18.5:1 1/2" Drive 1" Output
Contact Us
Williams


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

Torque Multiplier with Planetary-gear Mechanism with Max Output 3200 ft-lb

SKU: JHWTM-393

Overview

  • Designed where high torques are necessary for fastening or breaking out stubborn fasteners
  • Allows operator safe and easy means of producing torque for job requirements
  • Precision planetary gear multiplies the operator's input from standard torque wrenches
  • Can also multiply the torque from air-driven (non-impact) wrenches

Specifications

  • Max Output: 3200 ft-lb
  • Input Capacity: 173 ft-lb
  • Gear Ratio: 20.25:1
  • Torque Ratio: 18.5:1
  • Input Female Square: 1/2"
  • Output Square Size: 1"
  • Overall Length: 19-39/64"
  • Head Height (Sq. to Top): 6-1/2"
  • Head Diameter: 4-1/16"
Note: Technical changes and errors reserved.
Brand Williams
