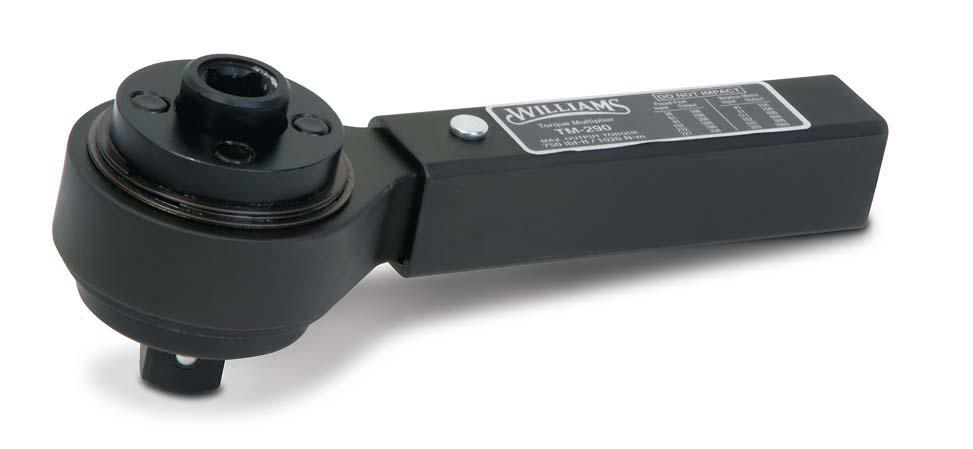

Torque Multiplier with Planetary-gear Mechanism with Max Output 750 ft-lb

SKU: JHWTM-290

Overview

  • Designed where high torques are necessary for fastening or breaking out stubborn fasteners
  • Allows operator safe and easy means of producing torque for job requirements
  • Precision planetary gear multiplies the operator's input from standard torque wrenches
  • Can also multiply the torque from air-driven (non-impact) wrenches

Specifications

  • Max Output: 750 ft-lb
  • Input Capacity: 227 ft-lb
  • Gear Ratio: 4:1
  • Torque Ratio: 3:1
  • Input Female Square: 1/2"
  • Output Square Size: 3/4"
  • Overall Length: 8-1/2"
  • Head Height (Sq. to Top): 3-1/4"
  • Head Diameter: 2-13/16"
Note: Technical changes and errors reserved.


Brand Williams
