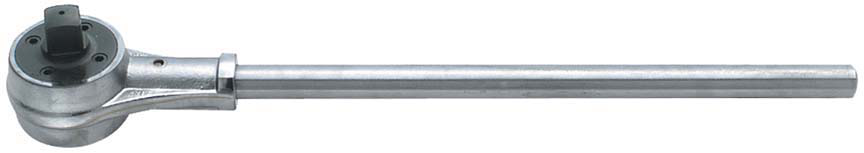

Williams Torque Multiplier w/Handle 12000 ft-lb, Ratio: 5.4:1, Input 1", Output 2-1/2" (JHWTM-2500)

Price:

$ 6,812.40

Williams Torque Multiplier w/Handle 12000 ft-lb, Ratio: 5.4:1, Input 1", Output 2-1/2" (JHWTM-2500)
  2. Shop
  3. Williams Torque Multiplier w/Handle 12000 ft-lb, Ratio: 5.4:1, Input 1", Output 2-1/2" (JHWTM-2500)
Milwaukee 2123-21HD M18™ Utility Remote Control Search Light Kit w/ Portable Base
Milwaukee 2123-21HD M18™ Utility Remote Control Search Light Kit w/ Portable Base
$ 1,636.05
$ 1,636.05
Williams Torque Multiplier 2200 ft-lb, Ratio: 15:1, Input: 1/2", Output: 1", Plate Reaction (JHWTM-492)
Williams Torque Multiplier 2200 ft-lb, Ratio: 15:1, Input: 1/2", Output: 1", Plate Reaction (JHWTM-492)
$ 6,434.40
$ 6,434.40

Williams Torque Multiplier w/Handle 12000 ft-lb, Ratio: 5.4:1, Input 1", Output 2-1/2" (JHWTM-2500)

https://www.etisupply.com/web/image/product.template/883771/image_1920?unique=b8edf94

SKU: JHWTM-2500

$ 6,812.40 6812.4 USD $ 6,812.40 $ 12,165.00

Not Available For Sale

($ 6,812.40 / Units)
  • Brand

This combination does not exist.

Williams Industrial 12000 ft-lb 5.4:1 1" Drive 2-1/2" Output
Contact Us
Williams


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

Torque Multipler with Handle with Max Output 12000 ft-lb

SKU: JHWTM-2500

Overview

  • Provides the operator with nut-turning power that requires only a fraction of the force required when using conventional tools
  • Input and output rotation is in the same direction
  • Reaction bar rotation is opposite to input direction and must rest securely against a rigid object to withstand the generated reaction force
  • By removing 4 screws, heads may be easily disassembled for inspection, cleaning, and lubrication

Specifications

  • Max Output: 12000 ft-lb
  • Multiplication Ratio: 5.4:1
  • Approx. Input Required for Max Output: 2200 ft-lb
  • Input Female Square: 1"
  • Output Male Square: 2-1/2"
  • Head Thickness (Including Tang): 7-1/4"
  • Head Diameter: 7-1/4"
  • Overall Length (Including Reaction Bar): 30"
Note: Technical changes and errors reserved.
Brand Williams
