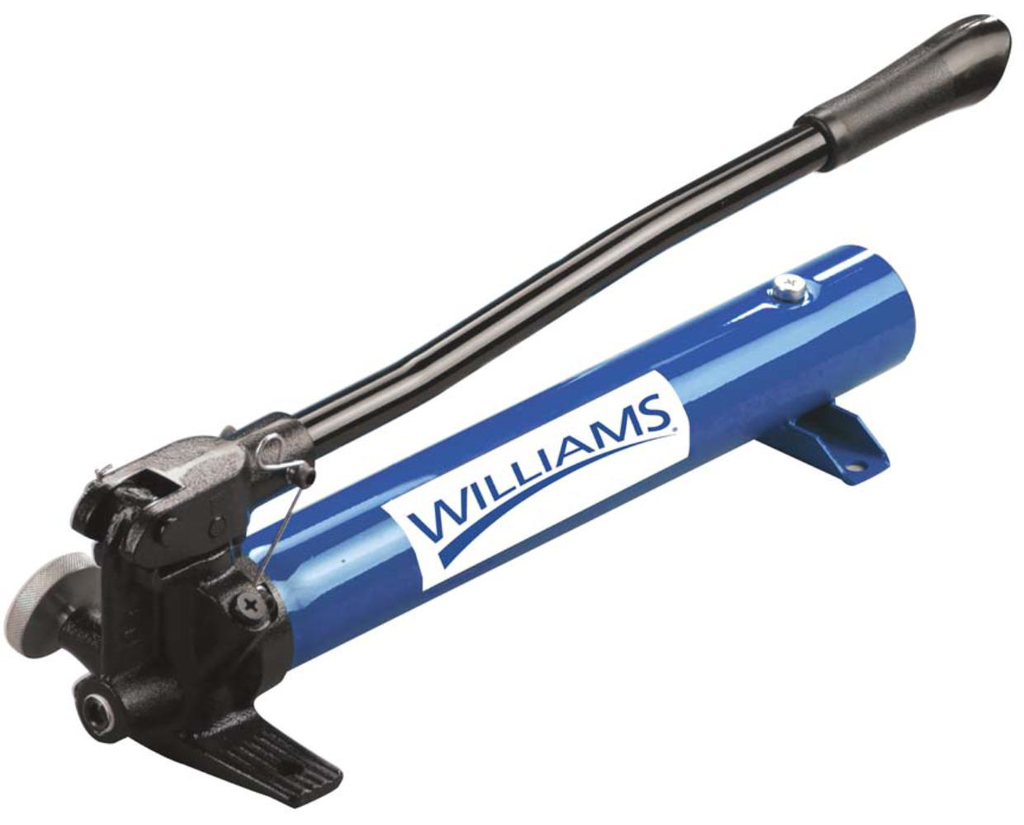

Williams SINGLE SPEED HAND PUMP (JHW5HS1S60)

Specifications

• Dimension J: 3.74 in
• Orientation: Horizontal
• Dimension A: 18.94 in
• Port Size: 3/8 NPTF
• Dimension F: 1.26 in
• Max. Operating Force: 109 lbs
• Country of Origin: Taiwan
• Usable Oil Capacity: 36.5 in³
• Dimension K: 14.45 in
• Handle Type: Lever
• Dimension E: 1.57 in
• Dimension C: 19.53 in
• Primary Material: Steel
• Used With Cylinder: Single Acting
• Piston Stroke: .79 in
• Oil Outlet Port: 3/8"-18NPTF
• Dimension D: 15.35 in
• Pressure Rating, 2nd Stage: 10,000 psi
• Oil Displacement Per Stroke, 2nd Stage: .15 in³
• Dimension H: 5.2 in
• Pump Type: Single-Speed
