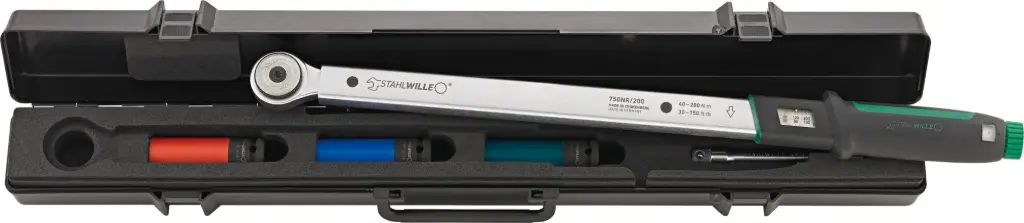

Stahlwille 1/2" Drive Wheel Change Set 750NR/200/3/1 Torque Wrench 40-200 Nm / 30-145 ft-lb (96507216)
Wheel change set
750NR/200/3/1
- Solid standard equipment for quick and stress-free wheel changes - ideal for use in workshops and for private use.
- With its SevenFiveZero torque wrench with 1/2" fine-tooth ratchet and 3 wheel nut sockets (size 17, 19, 21) with plastic sleeve, the set ensures maximum protection on sensitive alloy wheels.
- Clearly audible and tangible “click” when the target torque is reached, which can be conveniently and precisely adjusted via a rotary knob at the end of the handle (1 turn = 10 N·m).
- The extension and the wheel nut sockets with a ball lock ensure high power transmission, even for difficult or low-lying bolted connections.
- Sturdy plastic case with carrying handle and custom-fit inlay for safe transport and storage.
Product variants
| Product no. | Model | Measuring range N·m | Measuring range ft-lb | MA N·m | Nominal value N·m | Scale division N·m | Scale division ft-lb | Fine scale division | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Weight (g) | Number of tools | |
| 96507216 | 750NR/200/3/1 | 40-200 N·m | 30-150 ft·lb | 40 N·m | 200 N·m | 10 N·m | 20 ft·lb | 0,5 N·m | 1/2 | 680 mm | 81 mm | 66 mm | 2940 g | 5 |
Technologies and features
Spring mechanism with the 'click'
2-component handle
DIN EN ISO 6789-2
QuickSelect
Properties
- high-quality tool set specially designed for wheel changes
- with fixed, reversible 1/2" fine-tooth ratchet
- in a sturdy plastic box
- tactile with dual stop signal
- 60 teeth
- resilient, long-lasting spring mechanism
- fast, precise adjustment with QuickSelect quick adjustment
- trigger mechanism insensitive to continued loading after triggering, and loosening of already tightened joints (up to the maximum range limit of the torque wrench)
- locking of the specified torque setting
- dual scale N·m/ft·lb
- ready for operation again immediately after release
- calibration with perfectControl® calibration device No. 7791, 7794 or calibration system No. 7706
- for controlled clockwise tightening
- with 2-component handle
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- max. measurement error ± 4 %
- 1 torque wrench with ratchet 1/2" No. 750NR/200: measurement range: 40-200 N·m; 30-150 ft·lb
- 3 IMPACT wheel nut sockets No. 51IMP K: 17 mm (green); 19 mm (blue); 21 mm (red)
- 1 extension, 1/2" No. 509/5: L. 130 mm
Product highlights
Complete set for automotive wheel changes.
The set is a mobile and practical solution for various assembly work on car wheels. It consists of the mechanical torque wrench 750NR/200 with tactile cycle, resilient and durable spring mechanism and a fine-tooth ratchet. The 3 robust IMPACT wheel nut sockets with protective cover enable comfortable and damage-free working with the socket extension.
Relaxed tightening.
The 750NR features a resilient spring mechanism that ensures reliable and effortless screw tightening at all times. The release torque can be conveniently and precisely adjusted in 0.5 N·m increments using a rotary knob. An easy-to-read scale and tactile feedback ensure accurate and controlled application.
Gentle wheel changing.
The special IMPACT sockets with plastic sleeves enable gentle wheel changes, e.g. on sensitive alloy rims.
Color coding.
The protective sleeves of the IMPACT wheel nut sockets are colour-coded for immediate identification of the correct size.
Superior quality.
Our tool is made of high-quality and durable Chrome Alloy Steel. The durable and low-maintenance design ensures a long service life and reliable performance, even in demanding conditions.
Practical storage and transport.
Our tools are stored in a sturdy carrying case made of high-quality plastic. A foam insert secures the components during transport. The lightweight case has a practical carrying handle and is resistant to oil, grease and other chemicals typically found in a workshop environment.
