Stahlwille 1/2" Drive Wheel Assembly Set 721QR/20/3/1 Torque Wrench QUICK 40-200 Nm / 30-145 ft-lb (96507214)
Wheel assembly set
721QR/20/3/1 Quick
- Solid basic equipment for quick and stress-free wheel changes - ideal for use in workshops and for private use.

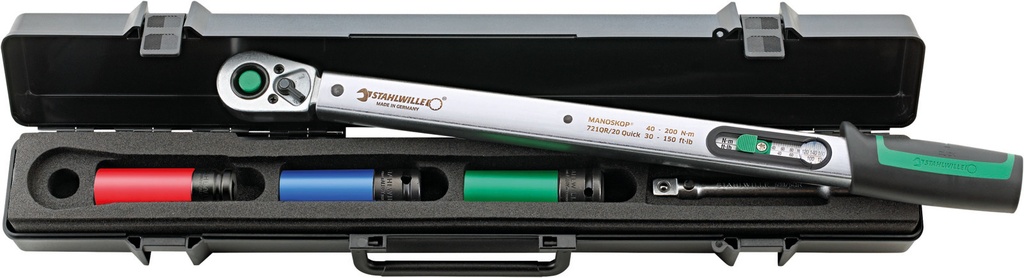

- The set includes a 721QR/20 quick torque wrench with a 1/2" fine-tooth ratchet and 3 wheel nut sockets (17, 19, 21 mm) with plastic sleeves for maximum protection on sensitive alloy wheels.
- The torque can be adjusted quickly and easily using an easy-to-operate clamping lever in the handle.
- The extension and wheel nut sockets with ball lock ensure high power transmission, even with difficult or deep bolted connections.
- In a sturdy plastic box with carrying handle and custom-fit insert for safe transport and storage.
Product variants
| Product no. | Model | Measuring range N·m | Measuring range ft-lb | MA N·m | Nominal value N·m | Scale division N·m | Scale division ft-lb | Length mm (L) | Width mm (b) | Height mm (h) | Weight (g) | Number of tools | |
| 96507214 | 721QR/20/3/1 Quick | 40-200 N·m | 30-145 ft·lb | 40 N·m | 200 N·m | 5 N·m | 5 ft·lb | 550 mm | 81 mm | 66 mm | 2818 g | 5 |
Technologies and features
QuickRelease
Low-wear bending beam system
2-component handle
DIN EN ISO 6789-2
Properties
- high-quality tool set specially designed for wheel changes
- in a sturdy plastic box
- clicking type with dual stop signal
- quick adjustment thanks to easy-to-operate locking lever in handle
- with permanently installed QuickRelease ratchet
- 36 teeth
- with QuickRelease safety lock
- no reset to '0' required
- the measuring element is only under load when a force is applied
- dual scale N·m/ft·lb
- non-slip adjuster with thumb recess for quick torque adjustment
- clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- easy adjustment without disassembly via 2 external adjustment screws
- for controlled clockwise tightening
- with 2-component handle
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
- 1 torque wrench standard MANOSKOP® with QuickRelease ratchet 1/2" No. 721QR/20 Quick: measurement range: 40-200 N·m; 30-150 ft·lb
- 3 IMPACT wheel nut sockets with hex 1/2" No. 51IMP K: 17 mm (green); 19 mm (blue); 21 mm (red)
- 1 QuickRelease extension 1/2" No. 509QR: L. 130 mm
Product highlights
Complete set for wheel changes on cars.
The set is a mobile and practical solution for various assembly work on car wheels. The mechanical torque wrench 721QR/20 Quick with tactile cycle indicator has a low-wear flexible rod system, which means that no reset to '0' is necessary, and is equipped with a fine-tooth ratchet. The 3 robust IMPACT wheel nut sockets with protective cover and socket extension enable comfortable and damage-free working.
Rapid adjustment.
Easy and quick adjustment of the torque is carried out by an easy-to-operate clamping lever in the handle. The scale can be moved quickly and safely with an ergonomically shaped, non-slip adjustment element with thumb recess.
Gentle wheel changing.
The special IMPACT sockets with plastic sleeves enable gentle wheel changes, e.g. on sensitive alloy wheels.
Color coding.
The protective sleeves of the IMPACT wheel nut sockets are color-coded for immediate identification of the correct size.
Superior quality.
Our tool is made of high-quality and durable Chrome Alloy Steel. The durable and low-maintenance design ensures a long service life and reliable performance, even in demanding conditions.
Practical storage and transport.
Our tools are stored in a sturdy carrying case made of high-quality plastic. A foam insert secures the components during transport. The lightweight case has a practical carrying handle and is resistant to oil, grease and other chemicals typically found in a workshop environment.
