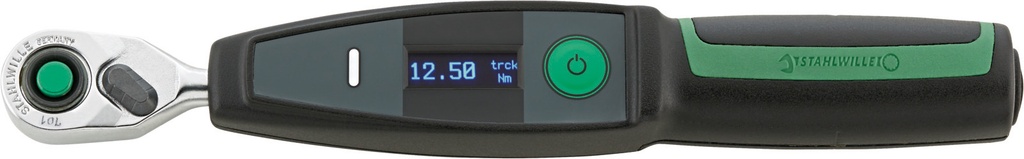

Stahlwille 1/4" Drive Electronic Torque Wrench SENSOTORK® 701/2 1–20 Nm (96504502)

SKU: 96504502 | 701/2 EAN: 4018754243693

  • Type: Electronic indicating torque wrench with fixed fine-tooth ratchet
  • Series / Model: SENSOTORK® 701/2
  • Application: Precision low-torque fastening
  • Drive: 1/4" square drive (fixed fine-tooth ratchet)
  • Torque Range: 1–20 Nm / 100–2000 cNm / 0.7–15 ft-lb / 9–180 in-lb
  • Nominal Value: 20 Nm
  • Minimum Setting (MA): 1 Nm
  • Accuracy: ±4%
  • Standard: DIN EN ISO 6789-2:2017
  • Measuring Units: Nm, cNm, ft·lb, in·lb
  • Display: Digital with acoustic, haptic, and visual (LED) feedback

Technologies and features

  • Indicating type Displays the applied torque in real time with acoustic, haptic, and optical evaluation of the achieved torque.
  • Force-independent measurement Measurements are independent of the point of force application.
  • Compact design Slim, compact shape ideal for low torques starting from 1 Nm and use in confined spaces.
  • Fine-tooth ratchet 80-tooth mechanism re-engages after only 4.5° for high precision in tight spaces.
  • SensoMaster 4 software support (free download) Additional functions include adjustable joints, evaluation of the tightening operation via colored LEDs / buzzer / vibration, adjustable calibration interval, and logging / documentation function.
  • Calibration Calibrated with perfectControl® No. 7794 or complete calibration system No. 7706. Readjustment possible without disassembly. Supplied with calibration certificate according to DIN EN ISO 6789-2:2017.

Properties

  • Electronic torque wrench for small measuring range 1–20 Nm
  • Displaying with acoustic, haptic, and optical evaluation of the achieved torque
  • Compact design with built-in fine-tooth ratchet for precise tightening in confined spaces
  • Measuring units: Nm, cNm, ft·lb, in·lb
  • Measurements independent of the point of application of force
  • Additional functions available via SensoMaster 4 software
  • Supplied with 3.6 V lithium battery (type 14500)
  • In sturdy plastic box
  • Accuracy ±4%

Specifications

  • Overall Length (L): 210 mm
  • Width (b): 22.6 mm
  • Height (h1): 26 mm / (h2): 10 mm
  • Calibration Length (LF): 160 mm
  • Weight: approx. 145 g (tool only)
  • Made in Germany

Note: Technical changes and errors reserved.
