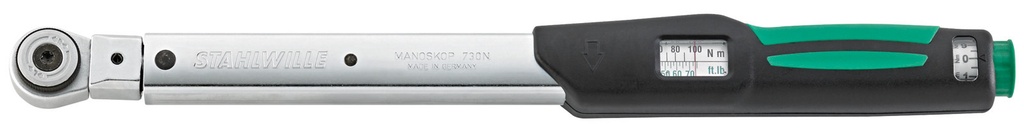

Stahlwille MANOSKOP® 730NR/10 Torque Wrench 1/2" Drive 15-75 ft-lb / 20-100 Nm (96503110)
SKU: 96503110
- clicking type with dual stop signal
- no reset to '0' required
- the measuring element is only under load when a force is applied
- with permanently installed fine-tooth ratchet
- fast, precise adjustment with QuickSelect quick adjustment
- dual scale Nm/ft-lb
- clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- easy adjustment without disassembly via 2 external adjustment screws
- in sturdy plastic box (size 65 in sheet steel box)
- with 2-component handle
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
96503110
Stahlwille MANOSKOP® 730NR/10 Torque Wrench 1/2" Drive 15-75 ft-lb / 20-100 Nm (96503110)
The haptic feedback and a clearly audible 'click' as a dual stop signal from the mechanical trigger reliably indicate that the target value has been reached.
The main and fine scale with fixed values enables quick, easy, and precise adjustment via the adjustment wheel - for maximum reliability in every application.
Specifications
- Product no.: 96503110
- Model: 730NR
- Size: 10 FK
- Measuring range: 20-100 Nm (15-75 ft-lb)
- MA Nm: 20 Nm
- Nominal value Nm: 100 Nm
- Scale division Nm: 10 Nm
- Fine scale division: 0.5 Nm
- Scale division ft-lb: 2.5 ft-lb
- External square drive (inch): 1/2
- Length mm (L): 420 mm
- b1: 28 mm
- b2: 33 mm
- Height mm (h1): 23 mm
- Height mm (h2): 24 mm
- LF: 336.5 mm
- Weight: 2.53 lb (1.146 kg)
Additional Information
