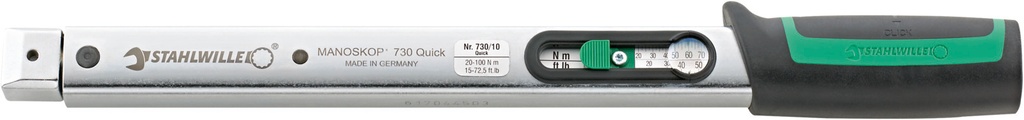

9x12 mm Insert Torque Wrench MANOSKOP® 730A/10 QUICK 20-100 Nm / 180-880 in-lb

SKU: 50584010 Model: 730a Quick/10 EAN: 4018754268986

  • Tool holder: 9 x 12 mm
  • Measuring range: 20-100 N·m
  • Measuring range: 180-880 in·lb
  • Scale division: 2.5 N·m
  • Scale division: 20 in·lb
  • Length (L): 370 mm
  • Width (b): 28 mm
  • Height (h): 23 mm
  • LF: 343 mm
  • SF: 17.5 mm
  • Weight: 934 g

Properties

  • Clicking type with dual stop signal
  • No reset to “0” required
  • Measuring element is only under load when a force is applied
  • Mount for interchangeable insert tools
  • With QuickRelease safety lock
  • Quick adjustment thanks to easy-to-operate locking lever in the handle
  • Ergonomically designed, non-slip adjuster with thumb recess
  • Optimised convex handle for strain-free working
  • Dual scale N·m / in·lb
  • Counter-clockwise tightening by turning the insert tools over
  • Any force applied after the click or in the opposite direction does not act on the trigger mechanism
  • Easy adjustment without disassembly via 2 external adjustment screws
  • Calibration certificate in accordance with DIN EN ISO 6789-2:2017
  • Accuracy ± 4%
Brand Stahlwille
