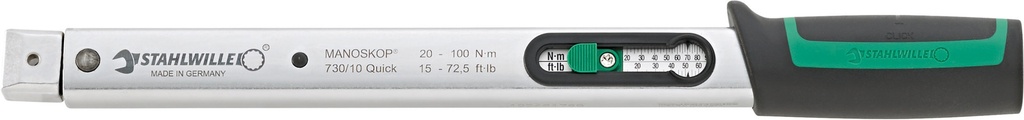

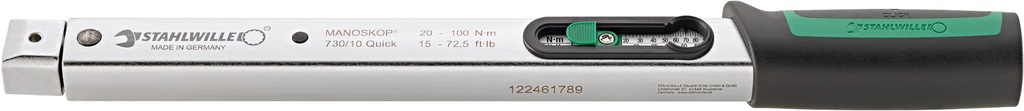

Stahlwille 9x12 mm Insert Torque Wrench MANOSKOP® 730/10 Quick 20–100 Nm / 15–72.5 ft-lb (50184010)

https://www.etisupply.com/web/image/product.template/356883/image_1920?unique=b45cf5d

SKU: 50184010

  • Locking lever for quick, precise torque adjustment
  • No reset to "0" required — low-wear bending beam release system
  • Dual scale Nm / ft-lb
  • Clicking type with dual stop signal
  • Accuracy ±4%; calibration certificate per DIN EN ISO 6789-2:2017
  • 9 x 12 mm insert tool holder; measuring range 20–100 Nm (15–72.5 ft-lb)
  • QuickRelease safety lock; 2-component non-slip handle
  • Made in Germany — MANOSKOP® 730 Quick

$ 558.80 558.801394 USD $ 558.80 $ 745.07

Not Available For Sale

($ 0.00 / Units)
  • Brand

This combination does not exist.

Insert Tool 9x12 locking lever no reset to 0 MANOSKOP® DIN EN ISO 6789-2:2017 15–72.5 ft-lb 20-100 Nm Stahlwille
Contact Us
Stahlwille


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

50184010

Stahlwille 9x12 mm Insert Torque Wrench MANOSKOP® 730/10 Quick 20–100 Nm (15–72.5 ft-lb)

Stahlwille MANOSKOP® 730 Quick setting torque wrench with holder for interchangeable insert tools. Patented low-wear flexible-rod release system — no reset to "0" after use. Quick adjustment via locking lever in the handle with dual Nm / ft-lb scale. Supplied with calibration certificate (DIN EN ISO 6789-2:2017). Accuracy ±4%.

Specifications

  • Product no.: 50184010
  • Size: 10
  • Model: 730 Quick
  • Measuring range: 20–100 Nm (15–72.5 ft-lb)
  • MA Nm: 20 Nm
  • Nominal value Nm: 100 Nm
  • Scale division Nm: 2.5 Nm
  • Scale division ft-lb: 2.5 ft-lb
  • Tool holder size: 9 x 12 mm
  • Length mm (L): 370 mm
  • Width mm (b): 28 mm
  • Height mm (h): 23 mm
  • LF: 343 mm
  • SF: 17.5 mm
  • Weight: 936 g (0.936 kg / 2.06 lb)

Additional Information

Data Sheet
User Guide
Product Page
STAHLWILLE
Brand Stahlwille
