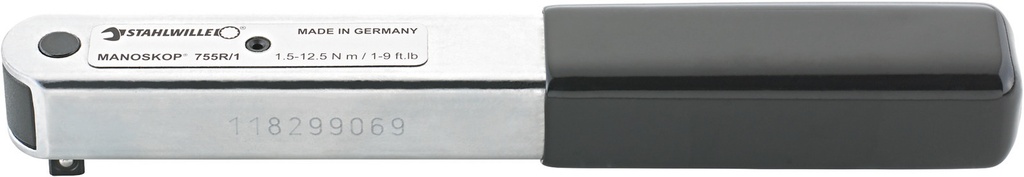

Stahlwille 1/4" Drive Torque Wrench MANOSKOP® 1.5-12.5 Nm / 1-9 ft-lb (50100001)
SKU: 50100001 | 755R/1
Torque wrench series MANOSKOP® with fixed ratchet
755R/1
Art. no. 50100001 | EAN 4018754096268
Product variants
| Product no. | Model | Measuring range N·m | Measuring range ft-lb | MA N·m | Nominal value N·m | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Weight (g) | |
| 50100001 | 755R/1 | 1,5-12,5 N·m | 1,0-9,0 ft·lb | 1.5 N·m | 12.5 N·m | 1/4 | 173,5 mm | 22 mm | 18 mm | 335 g |
Properties
- clicking type with dual stop signal
- for work on assembly lines or for repetitive production tasks.
- no adjustment scale; therefore adjustment with test equipment is required, e.g. with the STAHLWILLE test devices No. 7707 W, SmartCheck or the perfectControl® calibration system No. 7794, or calibration systems No. 7706. 7791)
- measurements are independent of the point of application of force
- for controlled clockwise tightening
- with permanently installed ratchet
- 22 teeth
- particularly slim design
- handle and shaft made of square steel pipe
- clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
- can be supplied pre-set at defined torque value and with certification (additional charge applies)
- accuracy ± 4%
| Brand | Stahlwille |
