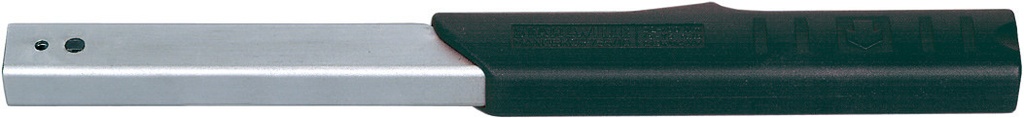

Stahlwille 9x12 mm Insert Torque Wrench MANOSKOP® 755/10 20–100 Nm / 15–74 ft-lb (50010010)

EAN: 4018754031627

  • Type: Click-type preset torque wrench with dual stop signal
  • Series / Model: MANOSKOP® 755, Size 10
  • Application: Assembly-line / repetitive production tasks
  • Tool Holder: 9 x 12 mm (interchangeable insert tools)
  • Torque Range: 20–100 Nm / 15–74 ft-lb
  • Nominal Value: 100 Nm
  • Minimum Setting (MA): 20 Nm
  • Accuracy: ±4%
  • Standard: DIN EN ISO 6789
  • Tightening Direction: Clockwise and counterclockwise (reverse insert tool)
  • Scale: None — preset only; must be set with test/calibration equipment
  • Trigger: Mechanical short-path click with audible and tactile dual stop signal
  • After-click / reverse load: Does not affect trigger mechanism (protected up to max range)
  • Preset option: Available pre-set to a defined value (additional charge)

Construction

  • Design: Particularly slim / lightweight
  • Handle and shaft: Square steel tube
  • Material: Steel

Dimensions & Weight

  • Overall Length (L): 318 mm
  • Width (b): 28 mm
  • Height (h): 24 mm
  • Calibration Length (LF): 289 mm
  • SF: 17.5 mm
  • Weight: 635 g

Notes

  • Insert tools not included
  • Adjustment requires Stahlwille testers (e.g. 7707 W, SmartCheck, perfectControl® 7794, or 7706 / 7791)
  • Made in Germany

Note: Technical changes and errors reserved.
