Stahlwille 9x12 mm Insert Torque Wrench MANOSKOP® 755/4 4–40 Nm / 3–30 ft-lb (50010004)

https://www.etisupply.com/web/image/product.template/356863/image_1920?unique=506efaf
SKU: 50010004 | 755/4

$ 294.56 294.556181 USD $ 294.56 $ 392.74

Not Available For Sale

($ 0.00 / Units)
  • Brand

This combination does not exist.

Insert Tool 9x12 3-30 ft-lb 4-40 Nm Stahlwille
Contact Us
Stahlwille


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

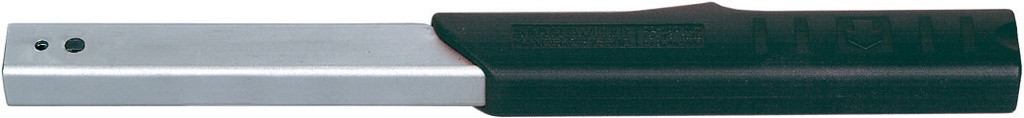

Torque Wrench — STAHLWILLE MANOSKOP® 755/4 4–40 Nm (3–30 ft·lb)

Part Number: 50010004 / EAN: 4018754031603

  • Type: Click-type preset torque wrench with dual stop signal
  • Series / Model: MANOSKOP® 755, Size 4
  • Application: Assembly-line / repetitive production tasks
  • Tool Holder: 9 x 12 mm (interchangeable insert tools)
  • Torque Range: 4–40 Nm (3–30 ft·lb)
  • Nominal Value: 40 Nm
  • Minimum Setting (MA): 4 Nm
  • Accuracy: ±4%
  • Standard: DIN EN ISO 6789
  • Tightening Direction: Clockwise and counterclockwise (reverse insert tool)
  • Scale: None — preset only; must be set with test/calibration equipment
  • Trigger: Mechanical short-path click with audible and tactile dual stop signal
  • After-click / reverse load: Does not affect trigger mechanism (protected up to max range)
  • Preset option: Available pre-set to a defined value (additional charge)

Construction

  • Design: Particularly slim / lightweight
  • Handle and shaft: Square steel tube
  • Material: Steel

Dimensions & Weight

  • Overall Length (L): 201 mm
  • Width (b): 22 mm
  • Height (h): 18 mm
  • Calibration Length (LF): 172 mm
  • SF: 17.5 mm
  • Weight: 500 g

Notes

  • Insert tools not included
  • Adjustment requires Stahlwille testers (e.g. 7707 W, SmartCheck, perfectControl® 7794, or 7706 / 7791)
  • Made in Germany

Note: Technical changes and errors reserved.
