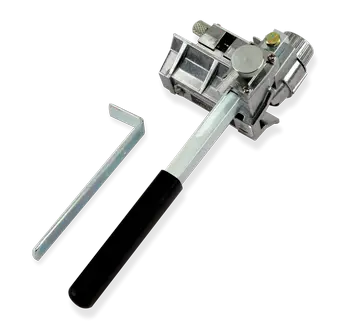

Speed Systems 1542-2CL-1 Speed Stripper with Wedge Blade installed and in spare compartment
SKU: 1542-2CL-1
1542-2CL Series Stripper
General Cable O.D. Range 1/2" - 1-3/4" (12.7 - 44.5 mm), but refer to kV/Conductor Guidelines in Features section
The 1542-2CL Series Stripper is designed to remove PE, XLP, EPR and other types of insulation from high voltage power cable.
| Model/Accessory | Description |
| 1542-2CL | Tool with Wedge Blade Installed, spare Straight Blade |
| 1542-2CL-1 | Tool with Wedge Blade installed, spare Wedge Blade |
| 1542-2CL-2 | Tool with Straight Blade installed, spare Straight Blade |
| 1562 | Replacement Wedge Blade |
| 1581 | Replacement Straight Blade |
| 1650X | Tool Stop for 1542 Series |
| 1590X | For cables 5/16 - 1/2 inch (8.0 - 12.7 mm) |
| 1646X | Scale Gauge Kit |
| 2689 | Scale Gauge/Chamfer Tool |
| Split Handle | Optional folding handle. Add S to catalog number (i.e. 1542-2C-1S) |
Features
Strips Cable insulation
Precise blade depth adjustment
Maximizes reliability of installation
Provides greater speed and increased safety
No bushings required
Includes 1646X Scale Gauge
kV Class / Conductor Size:
5kV / 1000 MCM and smaller
15kV / 750 MCM and smaller
25kV / 350 MCM and smaller
35kV / 3/0 and smaller
Videos
| Brand | Speed Systems |
