Sofamel 30902 ECBT-MPUBTH/35 (Earthing and short-circuit Ground Cluster) 4 - MPUBT/H flat bar clamps & 1 - TT-38A earthing clamp, Max. ICC 9KA/1s (Power Electronics)

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

659 ECBT-MPUBTH

Earthing and short-circuit equipment for low voltage electric panels.

The main aim for its installation is operator’s protection against an accidental commissioning or possible voltage return during repair operations.

The MPUBT/H clamps for low voltage are perfect to be fixed on flat bars.

According to IEC 61230 standard.

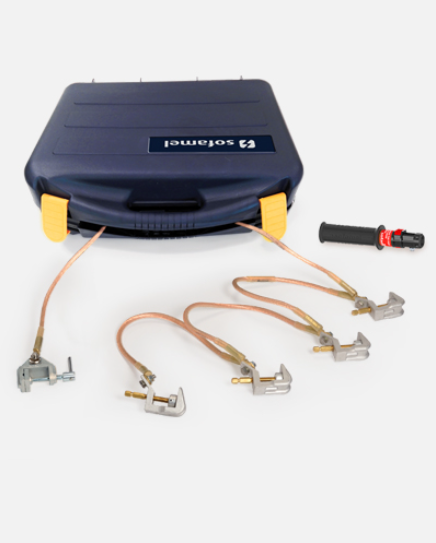

Composed of:

4 MPUBT/H aluminium alloy clamps with screw tighten.

1 insulated grip with polivalent head.

3 copper cables with PVC insulation of 35 mm² section and 0.6 m long.

1 copper cable with PVC insulation of 25 mm² section and 2 m long.

1 TT-38A milling earthing lathe.

1 plastic case to store and transport the equipment.

Brand

Sofamel

7-ET-ECBT-MPUBTH.pdf
