Sofamel 30902 ECBT-MPUBTH/35 (Earthing and short-circuit Ground Cluster) 4 - MPUBT/H flat bar clamps & 1 - TT-38A earthing clamp, Max. ICC 9KA/1s
659 ECBT-MPUBTH
Low voltage electric panels
Earthing and short-circuit equipment for low voltage electric panels.
The main aim for its installation is operator’s protection against an accidental commissioning or possible voltage return during repair operations.
The MPUBT/H clamps for low voltage are perfect to be fixed on flat bars.
According to IEC 61230 standard.

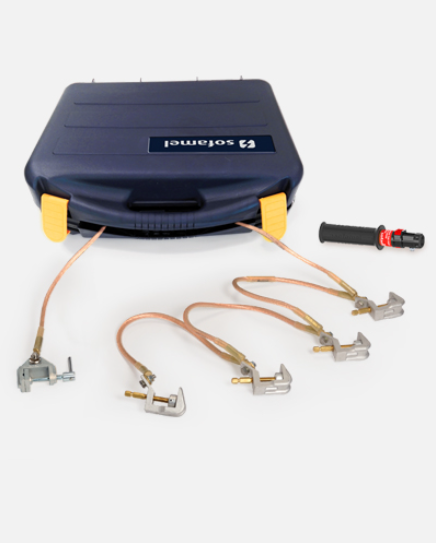

Composed of:
4 MPUBT/H aluminium alloy clamps with screw tighten.
1 insulated grip with polivalent head.
3 copper cables with PVC insulation of 35 mm² section and 0.6 m long.
1 copper cable with PVC insulation of 25 mm² section and 2 m long.
1 TT-38A milling earthing lathe.
1 plastic case to store and transport the equipment.
TECHNICAL SPECIFICATIONS ABOUT COPPER CABLES
Specifications
| Brand | Sofamel |
