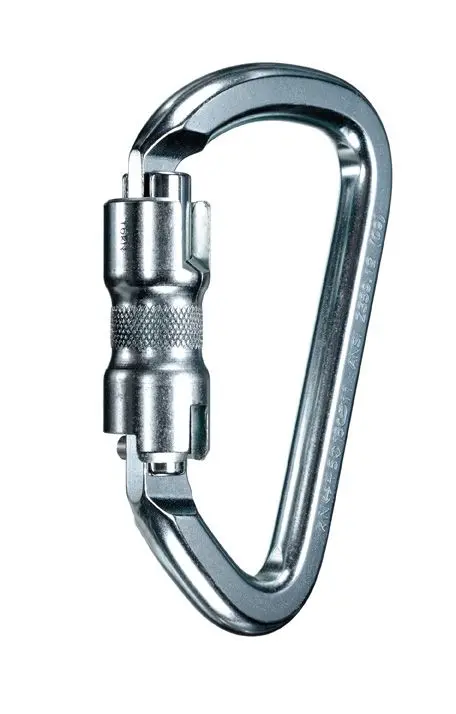

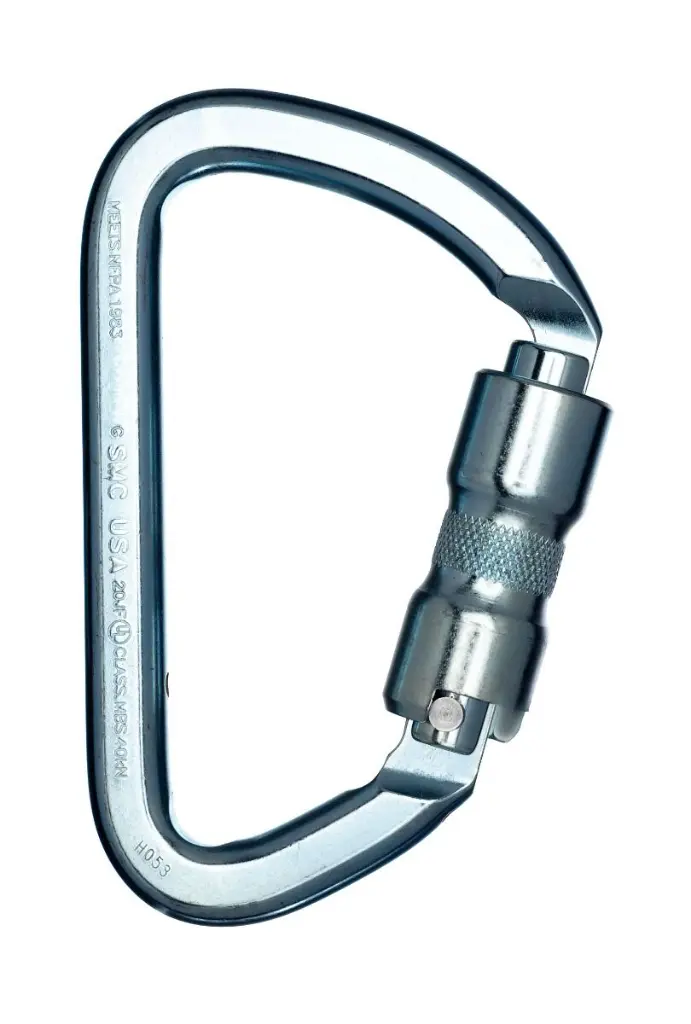

SMC NFPA102100-NC Steel Carabiner, ANSI FP, Bright without Keeper Pin
ANSI FP Carabiner w/o Captive Pin
SKU: NFPA102100-NC
Details
- Model #: NFPA102100-NC
- Material: Steel
- Alloy Finish: Zinc Plated
- Dimensions: 4.6” x 2.9”
- Gate opening: 1.0”
- Weight: 8.9 oz (254g)
- 3 Sigma test:
- Major axis– 45kN (10,116 lbf)
- Minor axis– 16 kN (3,600 lbf)
- NFPA 2500 (1983) 2022 ED G
- ANSI z359.12
- Certified Made In USA
Description
The SMC ANSI FP Lite Alloy is specifically designed for fall protection needs and is now available in two versions. For users who do not require a captive pin, The ANSI FP-NC (Part# NFPA102100-NC) is a great economical choice. It features a 1” gate opening, key lock, and dual-action auto-locking gates compliant with ANSI Z359.12 2009 edition standards. With a remarkable gate break strength of 16kN (3600 lbf) and a total MBS of 45kN (10,116 lbf), Weighing only 254 grams, The FP provides strength without sacrificing weight for all-day use at height. Each component undergoes meticulous hand-finishing for a smooth, free gate action – a hallmark of SMC carabiners. Additionally, every SMC carabiner is 100% hand-inspected for gate action and other functional characteristics before leaving the factory. FEATURES AND BENEFITS: • Certified to NFPA 1983 "G" General Use • Certified to ANSI Z359.12 • Manufactured using high quality Alloy Steel for optimal ratio of strength to weight. • Utilizes stainless steel internal parts insuring silky smooth and trouble-free performance for the life of the carabiner. • Auto-Locking Twist Lock sleeve is designed to be easily opened. • Made in the USA. Certifications Certified by Underwriter’s Laboratories to exceed the NFPA 1983 “G” - General Use requirement of 40kN.Certified to exceed the ANSI Z359.12 strength requirements.
Specifications
| Brand | SMC Gear |
