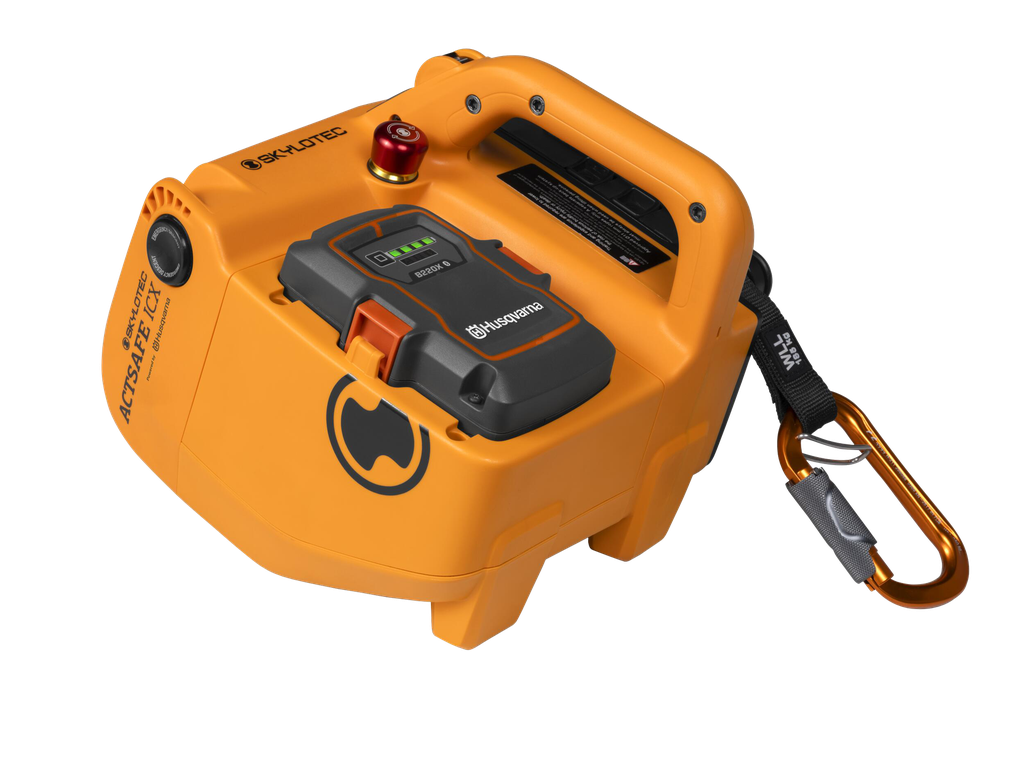

ACTSAFE ICX POWER ASCENDER

The ultra-lightweight, compact ActSafe ICX entry ascender was developed for the safe and efficient transport of people in hard-to-reach areas.

Specifications

• When used with a rope, the ActSafe ICX forms an incredibly flexible system for the easy and cost-effective cleaning and maintenance of complex structures.: Its intuitive operation is effortless thanks to a thumb wheel and enables precise work. Equipped with a high-performance battery
• "Husqvarna" 40-B220X: , the device achieves an ascent speed of 24 m/min.
• The battery’s maximum range is 230 m with a load of 100 kg and a temperature of 20°C. Thanks to its IP55 protection rating, the ActSafe ICX can be used in all weather conditions.: Loading the ropes is easy, which simplifies your workflow and saves valuable time. In addition, a second person on the ground can take control of the ActSafe ICX using a remote control.
• This allows for the automatic ascent or descent of the person operating the device if they are unable to do so themselves.: (Compatible battery models: Husqvarna BLi200, BLi200X, BLi300 and 40-B220X.)
• Operating and using the ActSafe ICX is quick and easy to learn through: user training
• .: Further information:
• Discover the POWER ASCENDERS product range. Find out more about the various models, their applications and their innovative features on our overview page – complete with interactive animations and videos.: more information
• PRODUCT: Application areas
• Work on roofs and facades, Arborists, Sailing & Yachting, Rope access: Battery range at 20° C & 100 kg load
• 230 m: Charging time
• 50 minutes: Emergency descent function
• Yes: Emergency stop function
• Yes: Energy source
• Removeable Battery: Remote control range
• 50 m: Underwater operations
• No: Water dust resistance
• IP 55: Working Load Limit
• 185 kg: Min. temperature
• -10 °C: Max. temperature
• 40 °C: Minimum compatible rope diameter
• 11.00 mm: Maximum compatible rope diameter
• 11.00 mm: Minimum descent speed
• 1 m/min: Maximum descent speed
• 24 m/min: Min. ascent rate
• 1 m/min: Max. ascent rate
• 24 m/min: Material
• Steel, Aluminium, Nylon: Number of Rechargeable Batteries
• 1: Regional Charger
• EU: Standards
• DIRECTIVE 2006/42/EC: Customs tariff number
• 84253100: Product length
• 49.60 cm: Product width
• 29.60 cm: Product heigth
• 28.00 cm: Colour
• Orange: Net weight
• 12.00 kg: Gross weight
• 12.00 kg: Documents
• Complementary products: SUPER STATIC 11.0 white
• White semi-static rope for high loads with high sheath abrasion resistance for rope access applications, compatible with ActSafe rope hoists and available in multiple lengths: Prices excl. VAT plus shipping costs
• Charger High Capacity Battery (HCB): Charger for ActSafe High Capacity Batteries for Power Ascenders, only compatible battery charger that can be connected directly to a socket
• Prices excl. VAT plus shipping costs: ActSafe Remote Control ICX
• Remote control enables safe control up to 50 m and rescue without complex systems: Prices excl. VAT plus shipping costs
• ActSafe ACX REMOTE Control: Replacement accessory, operate the ACX over a distance of up to 150 m with ACX REMOTE CONTROL
• Prices excl. VAT plus shipping costs: ACTSAFE EQUIPMENT LIFTING ROPE
• ActSafe Equipment Lifting Rope (ELR) 11 mm.  Approved in combination with the Skylotec ActSafe Power Acsenders as a Lifting system for moving heavy loads: Prices excl. VAT plus shipping costs
• ACTSAFE HIGH CAPACITY BATTERY IP55: High-performance battery for the ActSafe ACX Power Ascender,  integrated battery management system monitors system and charging cycles
• Prices excl. VAT plus shipping costs: Charger ICX
• Husqvarna Charger for ICX Battery: Prices excl. VAT plus shipping costs
