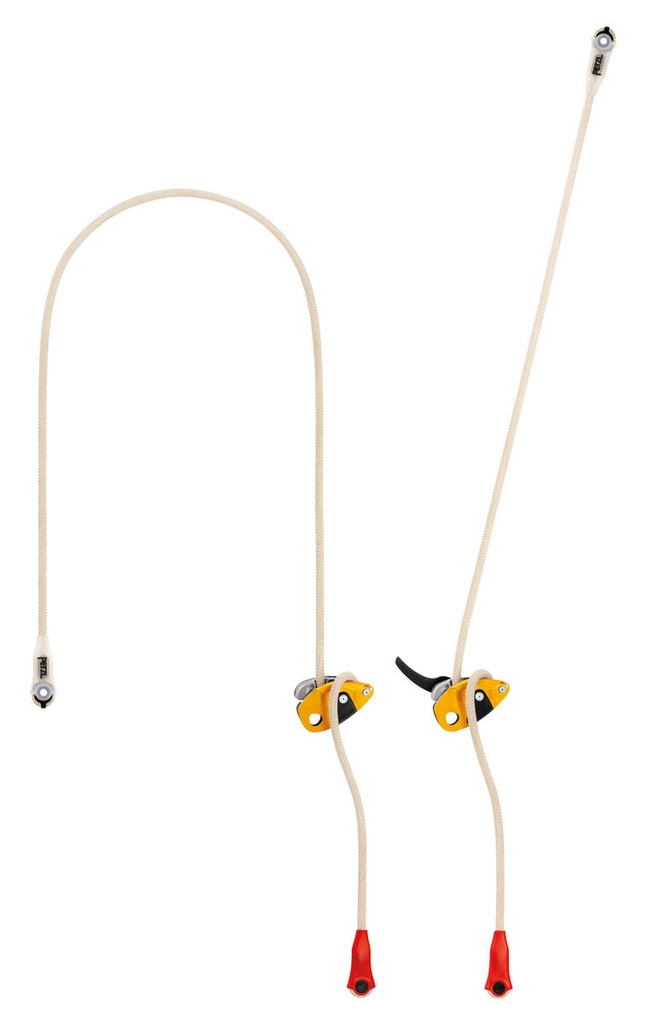

GRILLON PLUS

Adjustable work-positioning lanyard with high abrasion resistance

The GRILLON PLUS lanyard is used to make work-positioning systems, to complement a fall-arrest system. The length can be very easily and precisely adjusted as needed for comfortable positioning at the workstation. The aramid fiber rope provides excellent abrasion resistance. Depending on the configuration, it can be used in single or double mode. GRILLON PLUS is available in two lengths: 2 and 3 m, and is certified to North American, European and Russian standards.

Description

• Easy to use: the fine adjustment system allows length to be precisely adjusted for comfortable positioning at a workstation

• Aramid fiber rope provides excellent abrasion resistance

• Can be used in two ways:
  - Double mode (on the harness side attachment points) when the user works with weight on their feet, providing improved load distribution on the waistbelt; length is adjusted by pressing on the pivoting cam
  - Single mode (on the harness ventral attachment point) when the anchor is located above the user, so the load is comfortably distributed between the waistbelt and leg loops; length is adjusted by operating the handle while holding the free end of the lanyard

• Sewn terminations on both ends with plastic sheath to keep the connector in position and protect the rope from abrasion

• Available in two lengths: 2 and 3 m. Lanyard length is immediately identified by a color-coded label at the connector end

• User-repairable, the GRILLON PLUS has available spare parts to help extend its usable life

Specifications

• Material(s): Nylon, aramid, polyester, aluminum
• Certification(s): ANSI Z359.3, CSA Z259.11, CE EN 358, EAC, GB 24543/WQX
