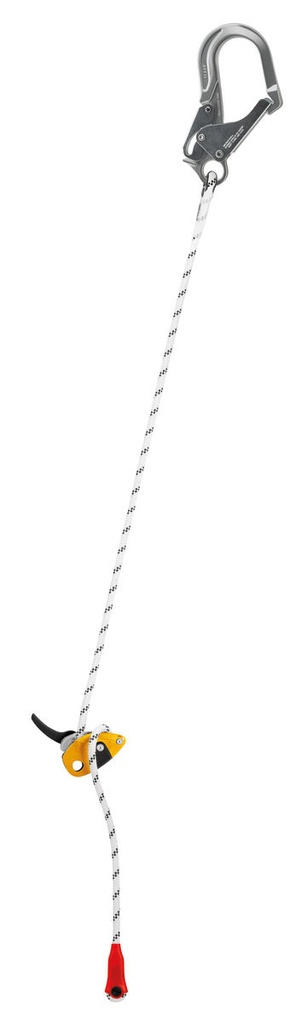

GRILLON MGO

Adjustable work positioning lanyard with MGO connector

The GRILLON MGO lanyard is used to make work positioning systems, to complement a fall-arrest system. Its length can be very easily and precisely adjusted as necessary for comfortable positioning at the work station. Connector with very large gate opening is ideal for connection to metal structures or to large-diameter cables and bars. GRILLON MGO is available in two lengths: 2 and 3 m, and is certified to North American and European standards.

Description

• Easy to use: the fine adjustment system allows length to be precisely adjusted for comfortable positioning at a work station

• Used in single mode on the harness ventral attachment point when the anchor is located above the user, so that the load is comfortably distributed between the belt and leg loops. Length is adjusted by operating the handle, while holding the free end of the lanyard

• Ends equipped with a plastic sheath that holds the connector in place and protect the rope from abrasion

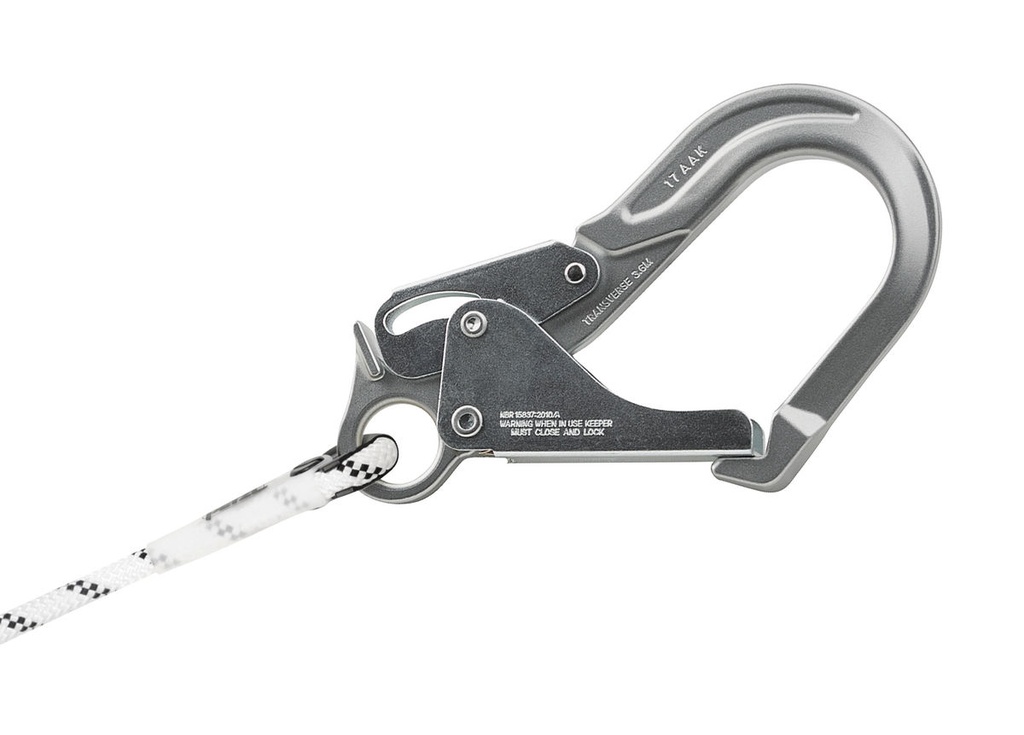

• Comes with an MGO connector with very large gate opening for connection to metal structures

• Available in two lengths: 2 and 3 m. Lanyard length is immediately identified by a color-coded label at the connector end

• Replacement ropes available

Specifications

• Material(s): nylon, polyester, aluminum
• Certification(s): ANSI Z359.3, CSA Z259.11, CE EN 358, CE EN 12841 type C, EAC, GB 24543/WQX

References

Technical information

Technical notice

• Download the PDF : technical-notice-GRILLON-3 - 6.38 MB
• Download the PDF : technical-notice-MGO 60S version internationale-1 - 1.60 MB
• Download the PDF : technical-notice-MGO-60-INT-1 - 2.00 MB

Declaration Of Conformity

• Download the PDF : UKCA-Declaration-M0026200-MGO 60 INT - 0.47 MB
• Download the PDF : UE-Declaration of conformity-L052XY-GRILLON - 0.83 MB
• Download the PDF : UKCA Declaration_GRILLON MGO_L052DAxx_220238_A_UKCA_220250 - 0.47 MB
