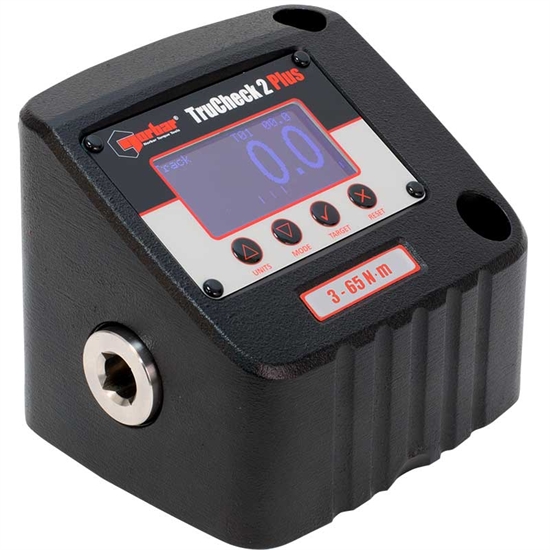

TruCheck 2 Plus, 3 - 65 N·m

TruCheck™ 2 is a cost effective torque wrench checker that has been redesigned to incorporate improved features whilst maintaining ease of use.

The TruCheck™ 2 aims to cut the cost of purchasing a torque wrench checking system and remove the reservations over the complexity of using such equipment.

• Part number: 43521
• EAN Bar Code: 5060207566551
• NATO number: -
• Accuracy: -
• Operates between: 3.00 - 65.00 N·m

Features

• Allows torque tool performance to be monitored and tools kept in peak condition.
• Allows a selection of torque units, three modes of operation (Click, Dial and Track), the ability to store up to 15 targets and select from 12 languages
• Allows operator to set a target value and tolerance
• Inbuilt Micro USB 2.0 port enables power from any USB power source. Plus versions allows for both power and data transfer simultaneously
• If you order a UKAS accredited calibration certificate (available at extra cost) this certificate will be provided in place of the traceable calibration certificate
• Software can be updated remotely, without the need to return the product to Norbar
• Supplied with traceable calibration certificate in clockwise direction. A counter-clockwise calibration is available at additional cost

Technical Specifications

• Weight: 2.6 Kg
• Accuracy: ±1% reading accuracy
• Display: LCD Display
• Temp Range - Operating: 0°C to +50°C
• Temp Range - Storage: -20°C to +70°C
• Auto Reset Hold Time: 3 seconds
• Power Consumption: 0.5W
• Environment: IP 40
• Electromagnetic Compatibility (EMC) Directive: Designed to comply with EN 61326-1
• Requires two Hexagon Socket Head Cap Screws ISO 4762 - M10 - 12.9 to fix in position (not included)
• Input: Integral 3/8” female square


Dimensions & Weights

• Tool Weight (kg): 6.50
• Packed Weight* (kg): 7.50
• Packed Width* (W) (mm): 620.00
• Packed Height* (H) (mm): 520.00
• Packed Depth* (D) (mm): 270.00

* Estimated
