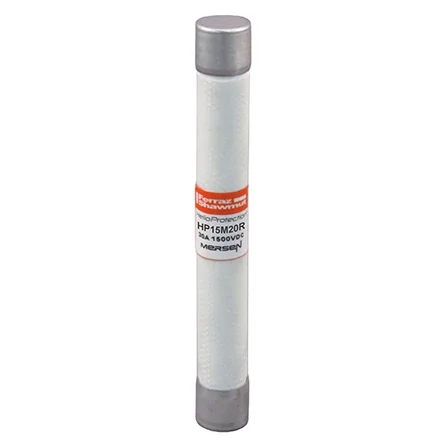

Mersen HelioProtection® HP15M20R 1500VDC Gen2 Photovoltaic Fuse gPV 10x85 20A
HP15M20R
Series: HelioProtection® HP15MxxR 1500VDC Solar Fuses Gen2
Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 10x85 20A With Ferrule For Clip
Mersen’s GEN2 of the HP15M photovoltaic (PV) fuse series is designed specifically to meet the severe temperature and current cycling of a PV system. Subjected to stringent cycle testing, the GEN2 provides enhanced reliability. These 1500VDC rated fuses are designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, which allows for safe circuit interruption under typical low fault current conditions. In addition to the standard ferrule terminal, parts are also available with Crimp Cap terminals for in-line fuse applications. The unique wire crimp terminal (CC option) permits solderless wire-to-fuse connection for overmold encapsulation of fuse and wiring. Protect your off-grid or grid tied PV system from unexpected line faults using Mersen’s HelioProtection® fuse line.
Technical Specifications
| Item number | HP15M20R |
| Description | Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 10x85 20A With Ferrule For Clip |
| EAN/UPC Code | 0782001502119 |
| Rated voltage DC UL | 1500 V |
| Rated voltage DC IEC | 1500 V |
| Ampere Rating | 20 A |
| ROHS Compliant | Yes |
| AC or DC | DC |
| Fuse Class | Photovoltaic |
| Speed/Characteristic | gPV |
| Fuse Size | 10x85 |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.41 in |
| Product Length | 3.34 in |
| Sell Pack Quantity | 5 EA |
| Sell Pack Weight | 0.15 lb |
| Sell Pack Width | 0.56 in |
| Sell Pack Length | 2.06 in |
| Sell Pack Height | 3.25 in |
| Product group | Special Purpose Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.03 lb |
| Power Dissipation at Intermediate Current Value | 1.77 @ 0.7 In W |
| Power Dissipation at Rated Current Value | 4.28 W |
Documentation
- Datasheets: DS-HP15MxxR-Mersen-EN
- Curves:
- Drawings: OUT-242136
- Compliances: COM-CE-20-0005-HP15M-Gen2-Mersen
