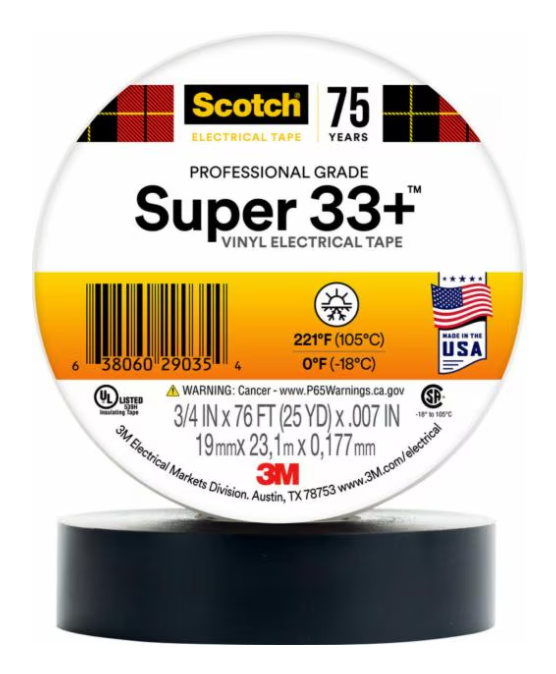

Scotch® Super 33+ Vinyl Electrical Tape, 3/4 in x 76 ft, 1 in Core, Black, 10 rolls/carton, 100 rolls/Case
SKU: 7100201470
Scotch® Super 33+ Vinyl Electrical Tape, 3/4 in x 76 ft, 1 in Core, Black, 10 rolls/carton, 100 rolls/Case
- Part Number 33+-3/4X76FT-1
- 3M ID 7100201470
- UPC 00638060290354
Highlights
- The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
- Resists UV rays, abrasion, moisture, alkalis, solvents and acids
- Flame-retardant and inhibits the corrosion of electrical conductors
- Made of durable PVC
- Compatible with rubber and synthetic splicing compounds
- Withstands a temperature range of 0 to 221 °F (-18 to 105 °C)
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Scotch® Super 33+ Vinyl Electrical Tape is a 7 mil thick, premium grade tape that provides electrical insulation for all wires and cables rated up to 600V. The flame retardant tape withstands a temperature range of 0 to 221 °F ( 18 to 105 °C). It is compatible with solid dielectric cable insulation, synthetic cable insulations, jackets and splicing compounds.
Scotch® Super 33+ Tape is designed for above/below grade, indoor/outdoor, low and high voltage applications and for harnessing cables. This tape offers electrical and mechanical protection with the combination of a pressure sensitive, rubber resin adhesive and elastic, PVC backing. It provides a protective jacket for high voltage cable splices. This electrical tape is highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Typical properties
Details
Adhesive Type | Rubber |
Application | Insulation |
Backing (Carrier) Material | PVC |
Brands | Super 33+™ |
Dielectric Strength | 1150 V/mil |
Elongation at Break | 250.0 % |
Flame Retardant | Yes |
Insulation Resistance | > 10^6 megohms |
Maximum Operating Temperature (Celsius) | 105 ℃ |
Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
Minimum Operating Temperature (Celsius) | -18 ℃ |
Minimum Operating Temperature (Fahrenheit) | 0 ℉ |
Product Color | Black |
Shelf Life | 5 Year |
Tape Grade | Professional |
Tensile Strength (Imperial) | 15.0 lb/in |
Tensile Strength (Metric) | 26 N/cm |
Total Tape Thickness without Liner (Imperial) | 7 mil |
Total Tape Thickness without Liner (Metric) | 0.178 mm |
Voltage Rating | 600 V |
eClass 14 Classification Group | 27144427 |
Dimensions and Classifications
Overall Length (Imperial) | 76 ft |
Overall Length (Metric) | 23.1 m |
Overall Width (Imperial) | 0.75 in |
Overall Width (Metric) | 19 mm |
| Brand | 3M, Scotch™ Brand |
