3M™ Cold Shrink Connector Insulator, WF103, conductor size, 350-500 kcmil
SKU: WF103 | 7100022240
3M™ Cold Shrink Connector Insulator, WF103, conductor size, 350-500 kcmil
- 3M ID 7100022240
- UPC 00051128595466
Details
Highlights
- UL listed for direct bury and submersible applications up to 2000 volts
- Seals tight, retains resiliency and pressure even after exposure
- Simple installation — no mastic, tape, or tools required to seal
- Good thermal stability
- Excellent wet electrical properties
- WATER-RESISTANT SEAL: Meets the water-resistant requirements of ANSI C-119.1
- WORK YOUR WAY: Accommodates a variety of cable sizes that can be used in direct burial or submersible applications
- LONG-LASTING: Maintains thermal stability, resiliency, and pressure for dependable performance

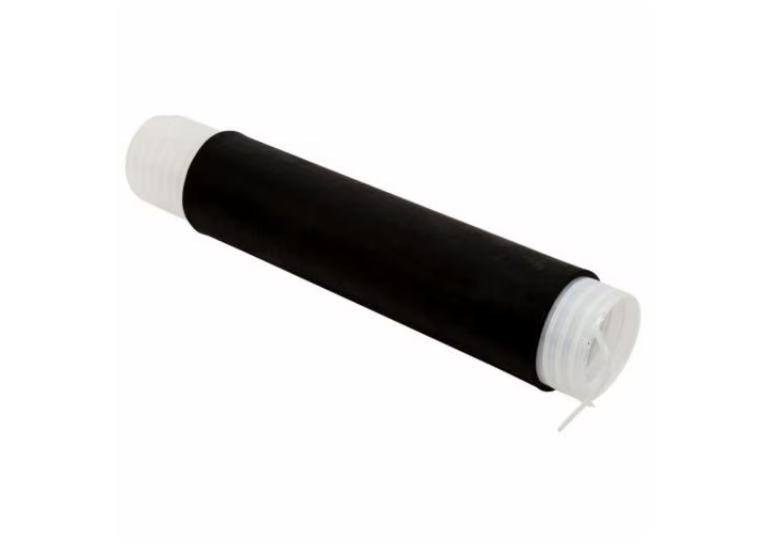

3M™ Cold Shrink Insulator WF Series is UL listed for direct bury and submersible applications in fresh or salt water environments for cable rated up to 2000 volts. The thick wall, open-ended, tubular, rubber sleeves are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal. The insulating tube is made of EPDM rubber.
3M has over 40 years of lab-tested and industry-proven results demonstrating the reliability of cold shrink technology. 3M™ Cold Shrink Quick Insulator WF Series and the other products in the cold shrink family are engineered with specially formulated materials that deliver a durable environmental seal and insulation. Six diameter sizes can accommodate cables up to 2000 volts, ranging from 4 AWG to 2000 kcmil for both copper and 4 AWG to 1500 kcmil for aluminum conductors. For applications with high UV exposure or where visual inspection isn't feasible, it is recommended to overwrap the tubing with Scotch® Super 33+™ Vinyl Electrical Tape or Scotch® Self-Fusing Silicone Rubber Electrical Tape 70.
Typical Properties
Details
Brands | 3M™ |
Cable Insulation Outside Diameter Range | 0.88-1.63 in |
Cable Type | Low Voltage Single Conductor Insulated Cable |
Case Quantity | 10 |
Insulation O.D. Range | 0.88-1.63 in |
Material | EPDM Rubber |
Maximum Operating Voltage | 2000 Volt |
Number of Conductors | 1 |
Product Type | Splice |
Voltage | 2000 V |
Dimensions and Classifications
Cable Insulation Outside Diameter Range (metric) | 23,3 - 42,0 mm |
Conductor Sizes (Imperial) | 350 kcmil, 400 kcmil, 450 kcmil, 500 kcmil, 350-500 kcmil |
Insulation O.D. Range (Metric) | 22.4-41.4 mm |
Maximum Conductor Size (Imperial) | 500 kcmil |
Maximum Conductor Size (Metric) | 240 mm² |
Maximum Operating Temperature (Celsius) | 90 °C |
Maximum Operating Temperature (Fahrenheit) | 194 °F |
Minimum Conductor Size (Imperial) | 350 kcmil |
Minimum Conductor Size (Metric) | 185 mm² |
Minimum Operating Temperature (Celsius) | -40 °C |
Minimum Operating Temperature (Fahrenheit) | -40 °F |
Similar products
| Brands | 3M™ | 3M™ |
| Cable Insulation Outside Diameter Range | 0.88-1.63 in | |
| Cable Insulation Outside Diameter Range (metric) | 23,3 - 42,0 mm | |
| Cable Type | Low Voltage Single Conductor Insulated Cable | Power Cable |
| Case Quantity | 10 | 10 |
| Conductor Sizes (Imperial) | 350 kcmil, 400 kcmil, 450 kcmil, 500 kcmil, 350-500 kcmil | 700 kcmil, 300 kcmil, 650 kcmil, 750 kcmil, 350 kcmil, 400 kcmil, 4/0 AWG, 500 kcmil, 2/0 AWG, 3/0 AWG, 1 AWG, 2 AWG, 250 kcmil, 1/0 AWG, 600 kcmil, 800 kcmil, 900 kcmil, 1250 kcmil, 1000 kcmil |
| Insulation O.D. Range | 0.88-1.63 in | 0.40-1.45 in, 0.71-2.25 in |
| Insulation O.D. Range (Metric) | 22.4-41.4 mm | 10.2-36.8 mm, 18.0-57.2 mm |
| Material | EPDM Rubber | EPDM Rubber |
| Maximum Conductor Size (Imperial) | 500 kcmil | 4/0 AWG, 400 kcmil |
| Maximum Conductor Size (Metric) | 240 mm² | 95 mm², 185 mm² |
| Maximum Operating Temperature (Celsius) | 90 °C | 90 °C |
| Maximum Operating Temperature (Fahrenheit) | 194 °F | 194 °F |
| Maximum Operating Voltage | 2000 Volt | |
| Minimum Conductor Size (Imperial) | 350 kcmil | 2 AWG (Aluminum), 250 kcmil (Copper), 250 kcmil (Aluminum) |
| Minimum Conductor Size (Metric) | 185 mm² | 35 mm² (Aluminum), 120 mm² (Copper), 120 mm² (Aluminum) |
| Minimum Operating Temperature (Celsius) | -40 °C | -40 °C |
| Minimum Operating Temperature (Fahrenheit) | -40 °F | -40 °F |
| Number of Conductors | 1 | 1 |
| Product Type | Splice | Splice |
