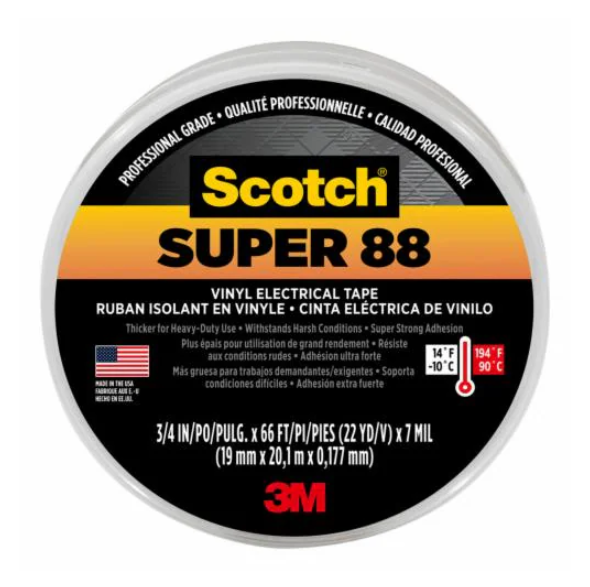

Scotch® Super 88 Vinyl Electrical Tape 6143-BA-10, 3/4 in x 66 ft x 0.0085 in (19 mm x 20,1 m x 0,215 mm), 10/case

• 3M ID 70006934403
• UPC 00054007061434

Highlights

• Polyvinyl chloride (PVC) backing
• Pressure-sensitive rubber-based adhesive
• Compatible with solid dielectric cable insulations
• Compatible with rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins
• Inhibits corrosion of electrical conductors
• For indoor or outdoor applications

Scotch® Electrical Tapes are stretchy, conformable, vinyl plastic. Insulates and protects against abrasion, water, solvent splashes and chemicals. Flame retardant and weather resistant. U.L Listed.

Scotch® Vinyl Electrical Tape Super 88 is a premium grade, 8.5-mil thick, all-weather vinyl insulating tape. It is designed to perform continuously in ambient temperatures up to 105°C (220°F). The tape is conformable for cold weather applications down to -18°C (0°F). It has excellent resistance to abrasion, moisture, alkalies, acids, corrosion and varying weather conditions. The combination of elastic backing and aggressive adhesive provides moisture-tight electrical and mechanical protection with minimum bulk. Scotch® Tape Super 88 is an Underwriters' Laboratories Listed and Canadian Standards Association Certified "Insulating Tape."

Specifications

• Minimum Operating Temperature (Celsius): -18.0
• Shelf Life: 1825
• Elongation at Break: 250
• Minimum Operating Temperature (Celsius) UOM: Degree
• Overall Width (Imperial) UOM: in
• Overall Width (Metric) UOM: mm
• Product Color: Black
• Voltage Rating: 600 V
• Overall Length (Imperial): 66.0
• Total Tape Thickness without Liner (Metric): 0.216
• Total Tape Thickness without Liner (Metric) UOM: mm
• Overall Length (Imperial) UOM: ft
• Maximum Operating Temperature (Fahrenheit): 220.0
• Shelf Life UOM: Year
• Maximum Operating Temperature (Fahrenheit) UOM: Degree
• Overall Length (Metric) UOM: m
• Country of Origin: United States
• Overall Width (Imperial): 0.75
• Specifications Met: CSA Certified, IEC 60454-3-1-7/F-PVC P/90, UL Listed, VDE Marks License
• Product Category: Electrical Tapes
• Tape Grade: Professional
• Maximum Operating Temperature (Celsius): 105.0
• Total Tape Thickness without Liner (Imperial): 8.5
• Application: Electrical Maintenance; Insulation
• Insulation Resistance: > 10^6 megohms
• Backing (Carrier) Material: PVC
• Adhesive Type: Rubber
• Maximum Operating Temperature (Celsius) UOM: Degree
• Overall Length (Metric): 20.0
• Total Tape Thickness without Liner (Imperial) UOM: mil
