Milwaukee 49-16-U600C 600 MCM Copper U Style Die
SKU: 49-16-U600C
- 100% Inspected for Critical Dimensions & Serialized: Ensures Crimp Quality
- Die Size Pressed into Connector, matches wire size: Eliminates cross Referencing
- Stainless Steel Finish: Protects against Corrosion
- Vivid Color Coding: Easiest Selection
- Wire Size Marked on Each Die: Easy Identification
49-16-U600C

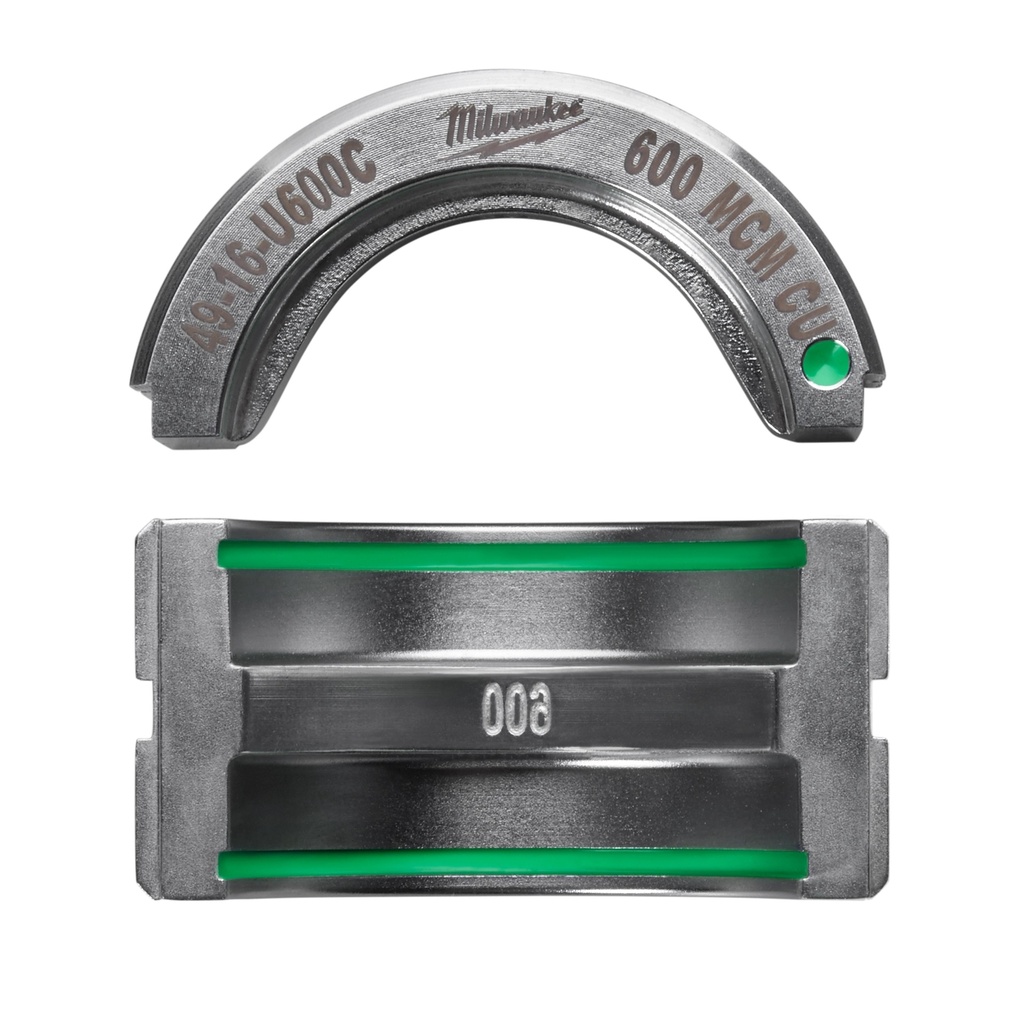

600 MCM Copper U Style Die
The M18™ FORCE LOGIC™ 600 MCM Crimper is the Most Accurate Way to Crimp producing cULus classified crimps according to the UL 486A-B classification standards for #8 - 600 MCM Cu and #8-350 MCM Dual Rated Anderson, Blackburn, Burndy, Ilsco, Panduit, Penn-Union and Thomas & Betts Connectors. Utilizing MILWAUKEE® U Style Dies that feature vivid wire size markings, industry standard color markings and imprint wire size onto the connector after crimp completion, Commercial Electricians benefit from its ease of use and easy inspection. For use with 2679-20, M18™ FORCE LOGIC™ 600 MCM Crimper and 49-16-U000 M18™ 600 MCM U Style Jaw Crimping Jaw.
Specifications
- Height: 1.3 in (3.3 cm)
- Length: 2.15 in (5.5 cm)
- Width: 2.05 in (5.2 cm)
- Weight: 0.265 lb (0.12 kg)
- Application Material: Electrical Wire and Cable Crimping
- Brand Model Compatibility: Milwaukee 2679-20
- Color: Green
- Conductor Type: Copper
- Die Size: 600 MCM
- Kit Type: Non-Kit
- Material Application: Multi-Purpose
- Number of Pieces Included: 1
- Warranty: No Warranty
- Size: 600 MCM
- Material Composition: Stainless Steel
| Brand | Milwaukee Tool |
