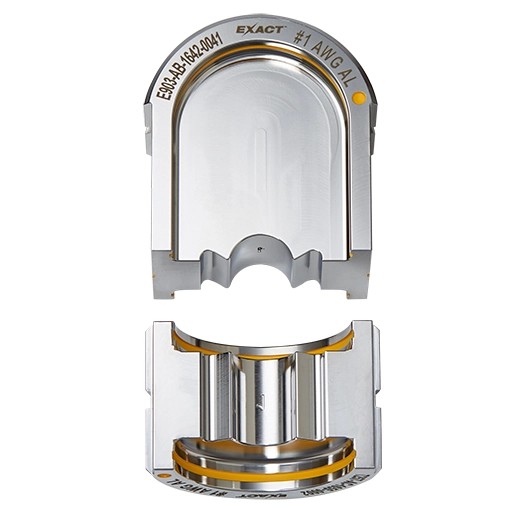

EXACT™ #1 Aluminum 12T U-Style Die

The M18™ FORCE LOGIC™ 750 MCM Crimper is the Easiest Way to Crimp, producing cULus classified crimps according to the UL 486A-B classification standards for #8 - 750 MCM Cu and Dual Rated Anderson, Blackburn® Burndy, Ilsco, Panduit, Penn-Union and Thomas & Betts Connectors. Milwaukee® EXACT™ 12T U-Style Dies are individually engineered both for quality crimps and for faster connections on all sizes with die lengths specific to each connector. In addition every EXACT™ 12T U-Style Die features vivid industry standard colors to indicate wire size and center alignment markings for easiest die selection and die alignment. All dies also eliminate cross-referencing by imprinting the wire size onto completed connectors and are the only dies that are 100% serialized and measured for greatest accuracy and easiest inspection.

Specifications

• Height: 1.65 in (4.2 cm)
• Length: 3.45 in (8.8 cm)
• Width: 2.15 in (5.5 cm)
• Weight: 0.855 lb (0.39 kg)
• Application Material: Electrical Wire and Cable Crimping
• Brand Model Compatibility: Milwaukee M18 Force Logic Crimper
• Color: Silver
• Conductor Type: Aluminum
• Die Size: #1
• Kit Type: Non-Kit
• Number of Pieces Included: 2
• Warranty: No Warranty
• Size: #1
• Material Composition: Stainless Steel
• Material Application: Electrical Wire and Cable Crimping
