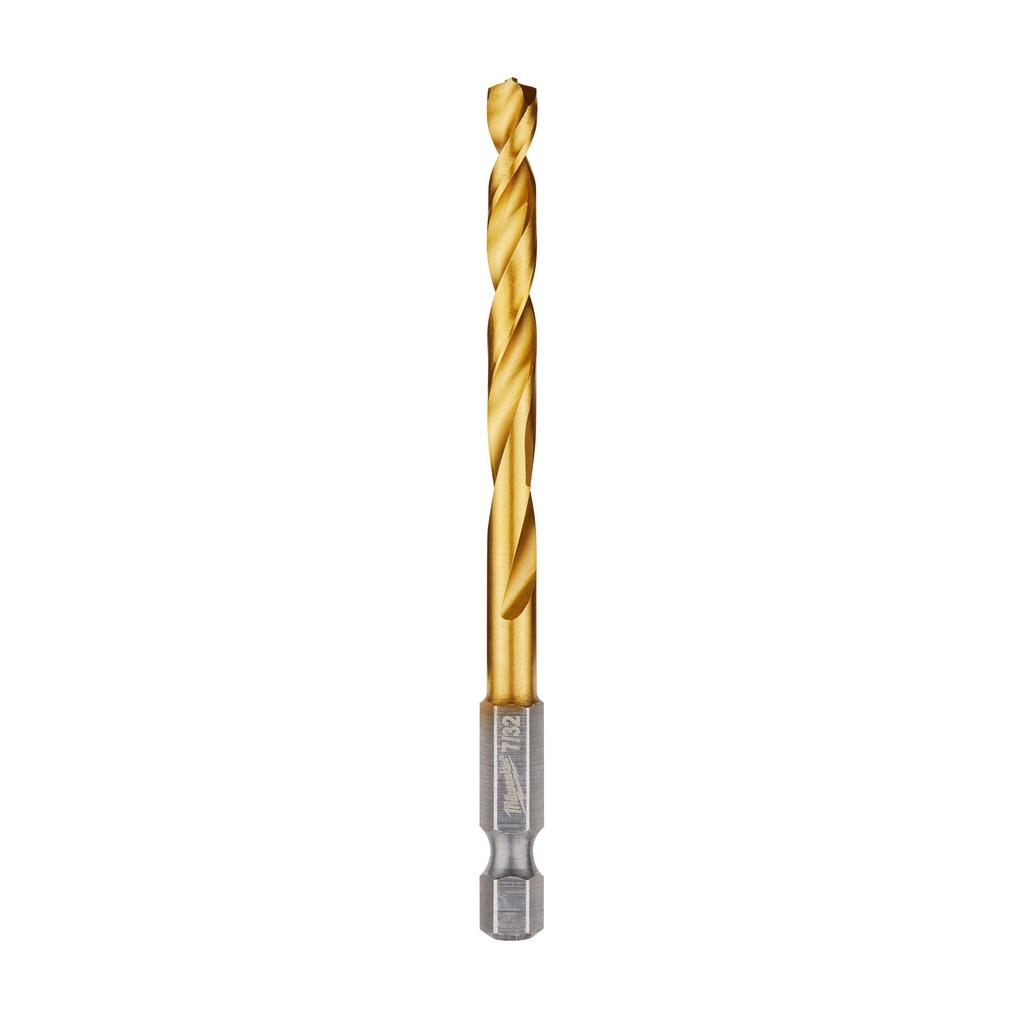

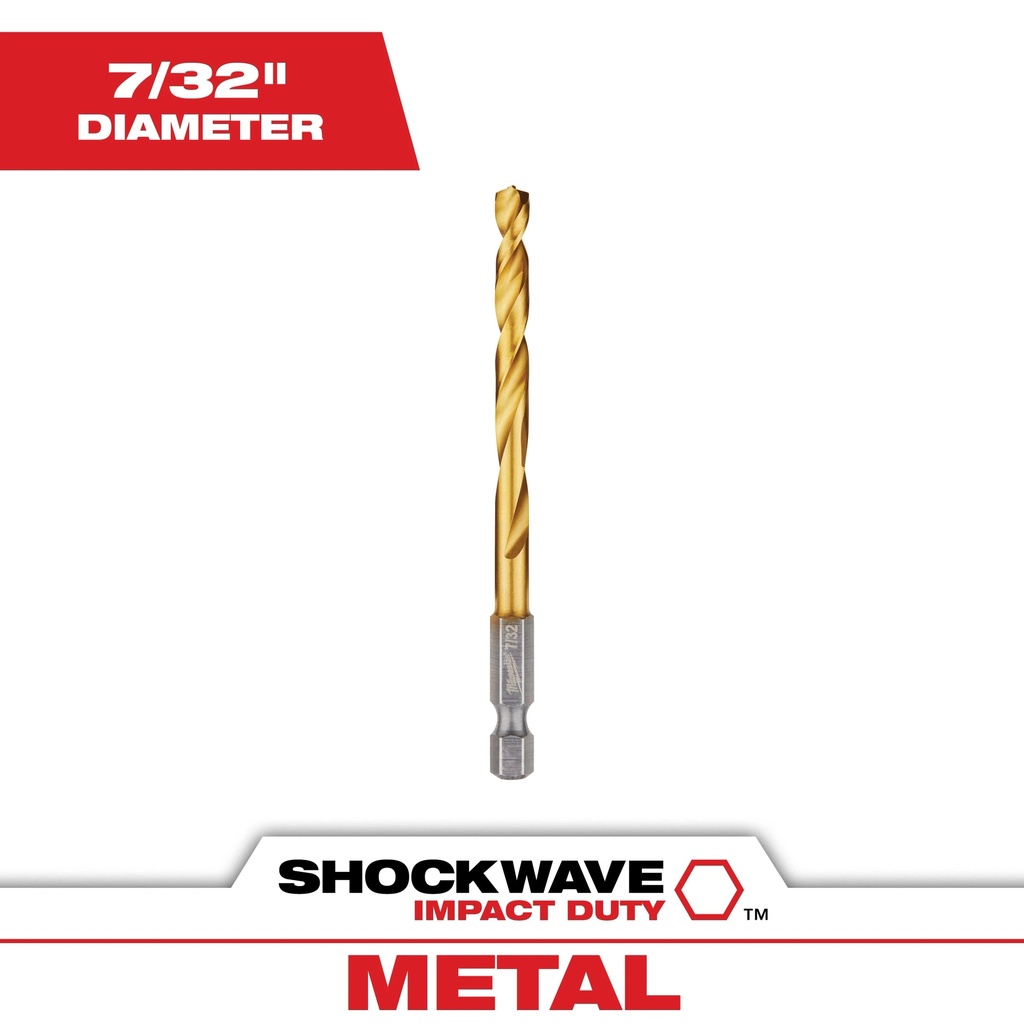

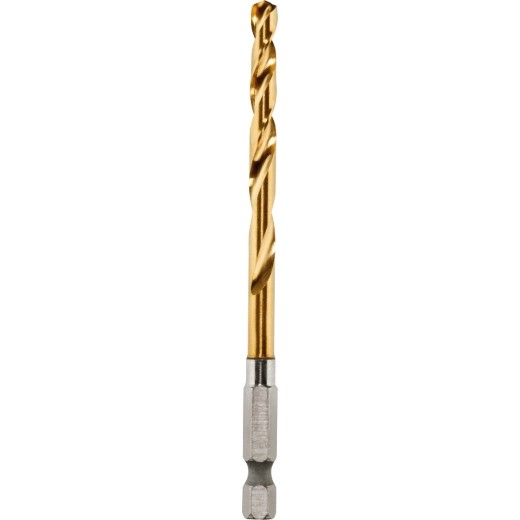

7/32" SHOCKWAVE™ Impact Duty RED HELIX™ Titanium Drill Bit

Our SHOCKWAVE™ RED HELIX™ Titanium Drill Bits are engineered for extreme durability and long life. The QUAD EDGE™ tip delivers a precision start and four cutting edges to create smaller chips for faster removal and less heat for longer bit life. The Variable Helix ™ design includes an aggressive 35° helical angle, which ends at 15°, these titanium drill bits with RED HELIX™ provide Rapid Chip Removal™ limiting heat buildup to Stay Sharper Longer™. The bits also feature an internal ENHANCED TAPERED WEB that greatly increases their strength, reducing premature breakage. Our titanium drill bits are ideal for various applications, including but not limited to wood, plastics, and metals. MILWAUKEE® Red Helix Titanium Drill Bits provide up to 5X life vs. black oxide drill bits.

Specifications

• Height: 0.22 in (0.6 cm)
• Length: 3.88 in (9.9 cm)
• Width: 0.22 in (0.6 cm)
• Weight: 0.05 lb (0.02 kg)
• Bit Diameter: 7/32"
• Bit Length: 4.09
• Bit Type: Twist
• Drill Bit Type: Twist
• Drilling Depth: 2.296875 in
• Flute Length: 2.3 in
• Kit Type: Non-Kit
• Material Application: Aluminum
• Number of Pieces Included: 1
• Overall Bit Length: 4.09375
• Shank Size: 1/4"
• Shank Length: 1.25 in
• Shank Style: Hex
• Warranty: No Warranty
• Useable Length: 2.296875 in
• Cutting Depth: 2.296875 in
• Pack Qty: 1 Pack
• Size: 7/32"
• Diameter: 7/32"
• Variable Helix: X
• Chip Breaker: X
• Quad Edge Tip: X
• Material Composition: Titanium
• Shank: Hex
