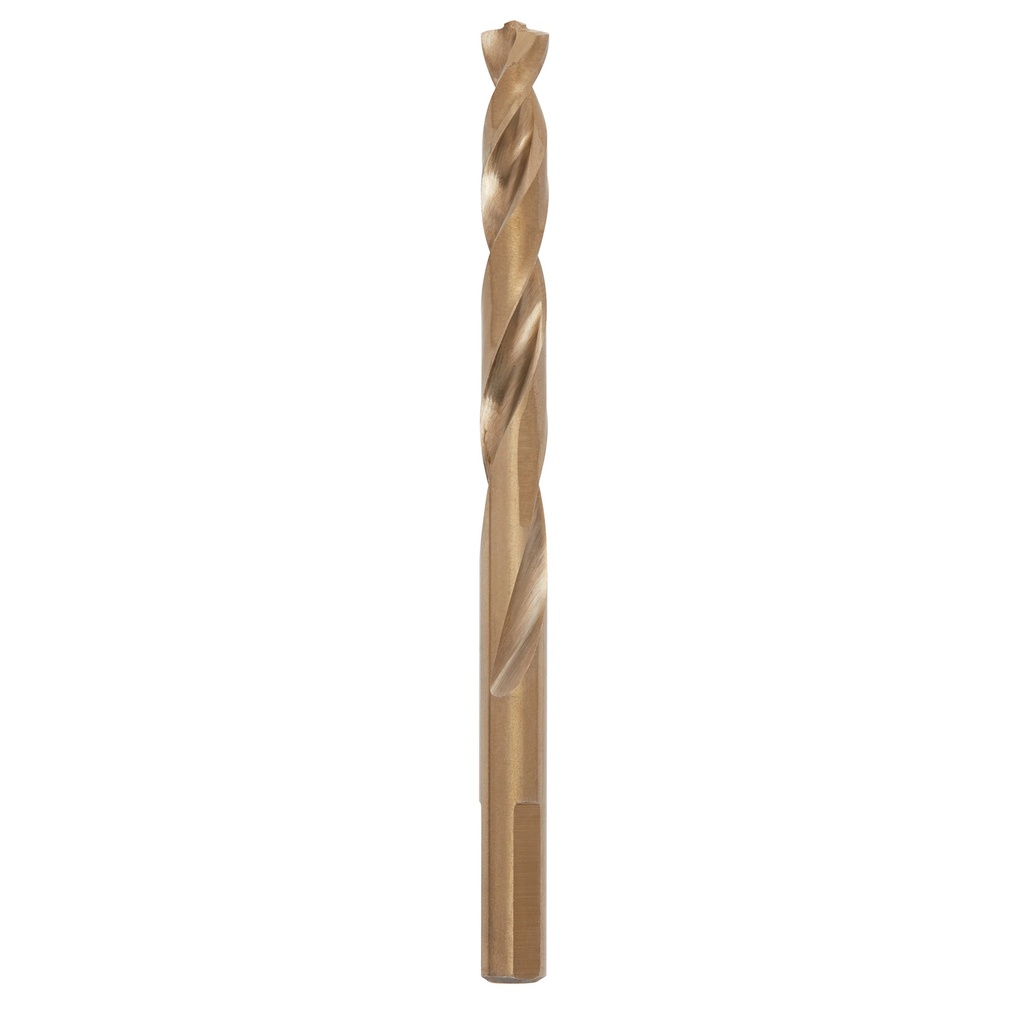

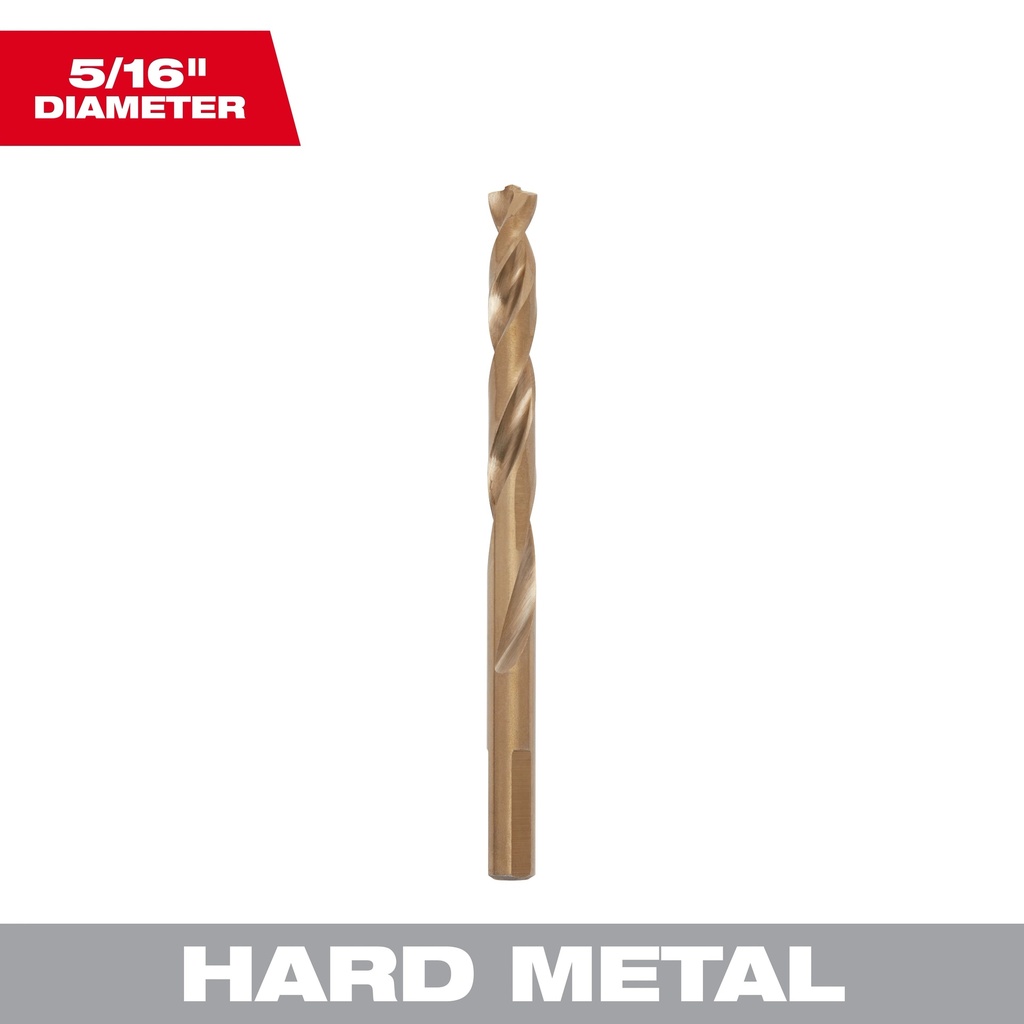

5/16" COBALT RED HELIX™ Drill Bit

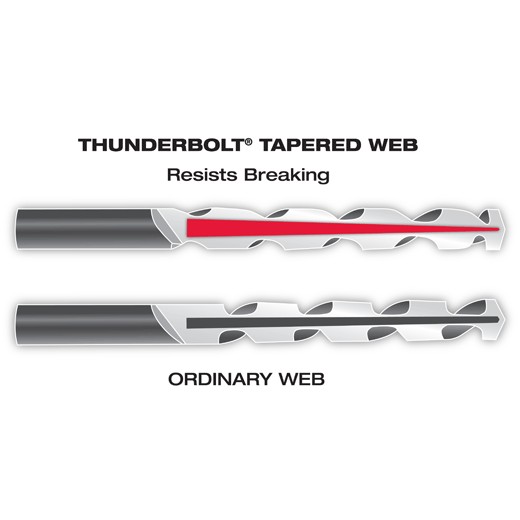

MILWAUKEE® THUNDERBOLT™ Cobalt drill bits are designed for extreme durability and long life in specialty applications. The THUNDERBOLT™ web features a thicker core than a standard drill bit to provide ultimate strength and protect against side-load breakage. A specially designed parabolic flute form clears chips and debris fast to keep the bit cool, while the 3-FLAT SECURE-GRIP™ shank holds the bit firmly in the drill chuck. The 135° split point tip delivers a precision start and prevents walking for fast, accurate holes. Effective for drilling on curved surfaces, MILWAUKEE® THUNDERBOLT™ Cobalt bits require less effort to drill through stainless steel, high alloy steel and cast iron, and are highly recommended for use with portable drills.

Specifications

• Height: 0.31 in (0.8 cm)
• Length: 4.37 in (11.1 cm)
• Width: 0.31 in (0.8 cm)
• Weight: 0.08 lb (0.04 kg)
• Bit Diameter: 5/16"
• Bit Length: 4.5
• Bit Type: Specialty
• Drill Bit Type: Twist
• Drill Point Design: Split
• Flute Length: 3.27 in
• Kit Type: Non-Kit
• Material Application: Aluminum
• Number of Pieces Included: 1
• Overall Bit Length: 5.62
• Pack Quantity: 1
• Shank Size: 3/8"
• Shank Length: 1 in
• Surface Coating: Uncoated (Bright Finish)
• Warranty: No Warranty
• Coating: Cobalt
• Application: Wood|Stainless Steel|Metal|Plastic|PVC
• Decimal Equivalent: 0.3125
• Pack Qty: 1 Pack
• Size: 5/16"
• Diameter: 5/16"
• Variable Helix: X
• Chip Breaker: X
• Material Composition: High Speed Steel
• Shank: 3-Flat
