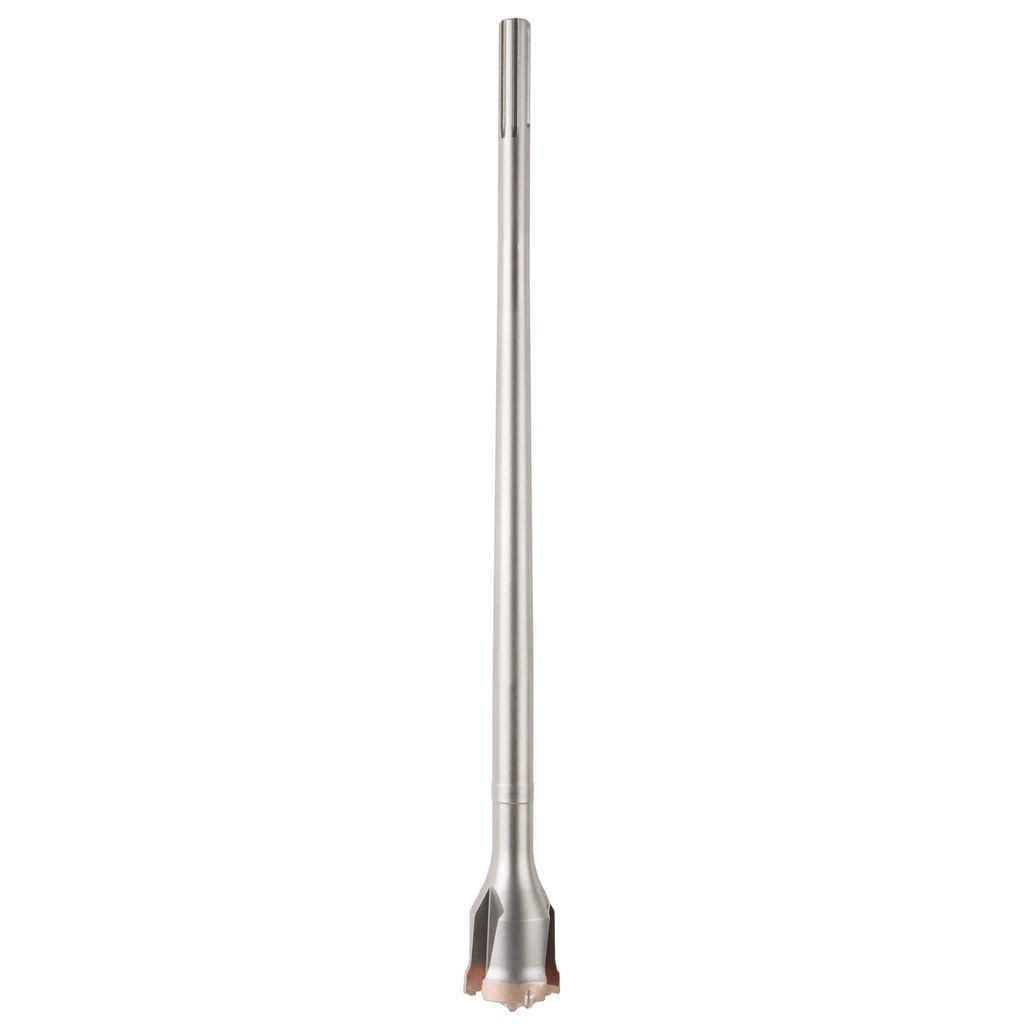

Milwaukee 48-20-5302 1-1/2" X 22" One Piece SDS Max Tunnel Bit
SKU: 48-20-5302

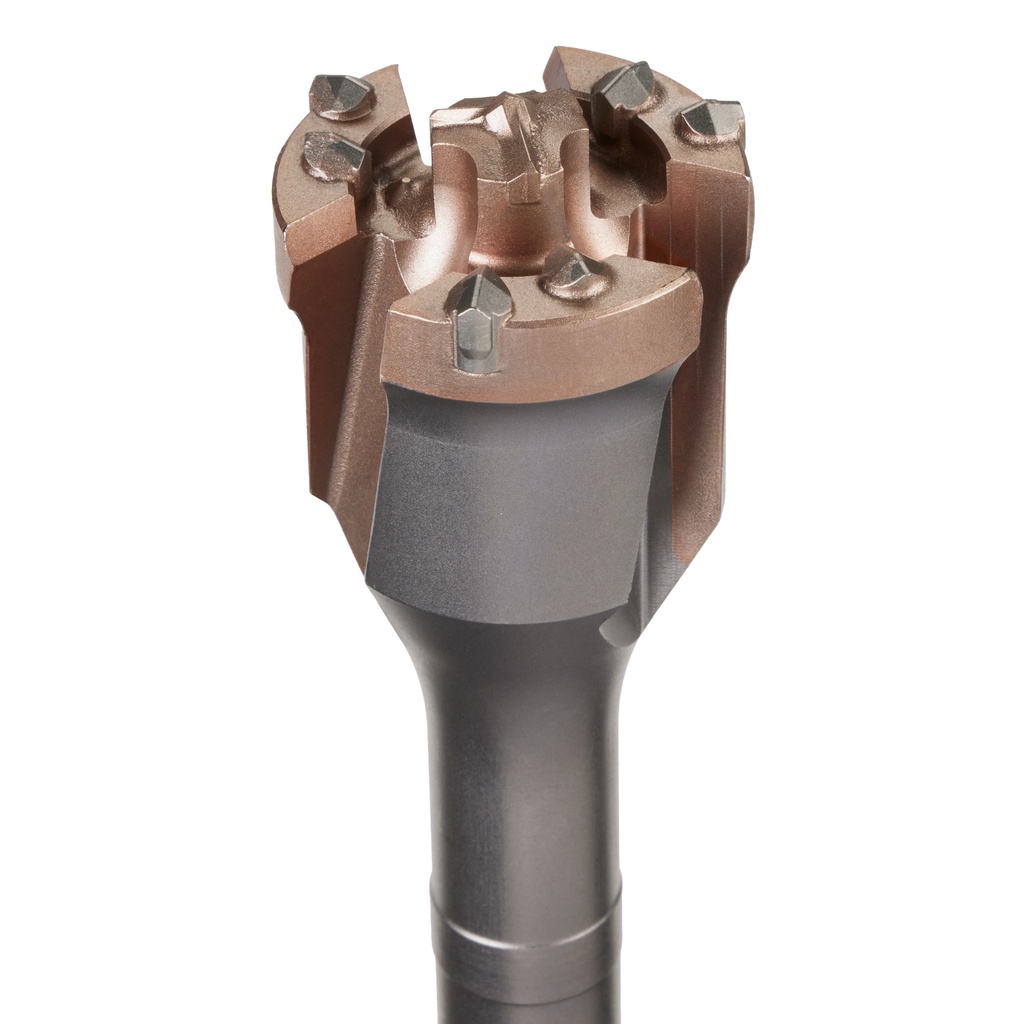

- Robust Head with Concrete Breakers for faster and more durable drilling in rebar
- 3-Cutter Carbide Centering Tip: for precise starts and fast grinding of concrete and rebar
- Carbide Teeth with Rebar Chamfers provide increased durability in tough applications
- Alternating Carbide Geometry for fast shearing through concrete and rebar
- High Volume Sloped Flutes for faster dust removal
- 22' long shaft for deep hole drilling
- Ideal for concrete, concrete with rebar, brick, and block
- For Use in SDS Max Rotary Hammers
48-20-5302
1-1/2" X 22" One Piece SDS Max Tunnel Bit
Our MILWAUKEE® 1-1/2" X 22" SDS Max Tunnel Bits are ideal for drilling deep, large holes in concrete, concrete with rebar, brick, and block. The high volume sloped flutes and 22" long shaft allow for continuous deep hole drilling and faster dust removal avoiding the need to clear out a core. The SDS Max tunnel bits feature a robust head equipped with a 3-cutter design and sharp carbide centering tip for precise starts and fast grinding of concrete and rebar. The carbide teeth are engineered with rebar chamfers to quickly shear through the embedded rebar while maintaining maximum durability and preventing tooth breaks. For use in SDS Max Rotary Hammers.
Specifications
- Height: 1.5 in (3.8 cm)
- Length: 22 in (55.9 cm)
- Width: 1.5 in (3.8 cm)
- Weight: 3.08 lb (1.40 kg)
- Arbor Hole Diameter: No Arbor Hole
- Bit Diameter: 1 1/2"
- Bit Length: 22"
- Bit Type: Masonry
- Color: Silver
- Drill Bit Type: Percussion Bit
- Drilling Depth: 20 in
- Flute Length: 2 in
- Kit Type: Non-Kit
- Material Application: Rebar
- Number of Pieces Included: 1
- Overall Bit Length: 22
- Shank Style: SDS Max
- Usable Length in.: 20 in
- Warranty: No Warranty
- Useable Length: 20 in
- Cutting Depth: 20 in
- Hole Diameter: 1 1/2 in
- Type: Percussion Bit
- Diameter: 1-1/2"
- Material Composition: Carbide Tipped|Steel
| Brand | Milwaukee Tool |
