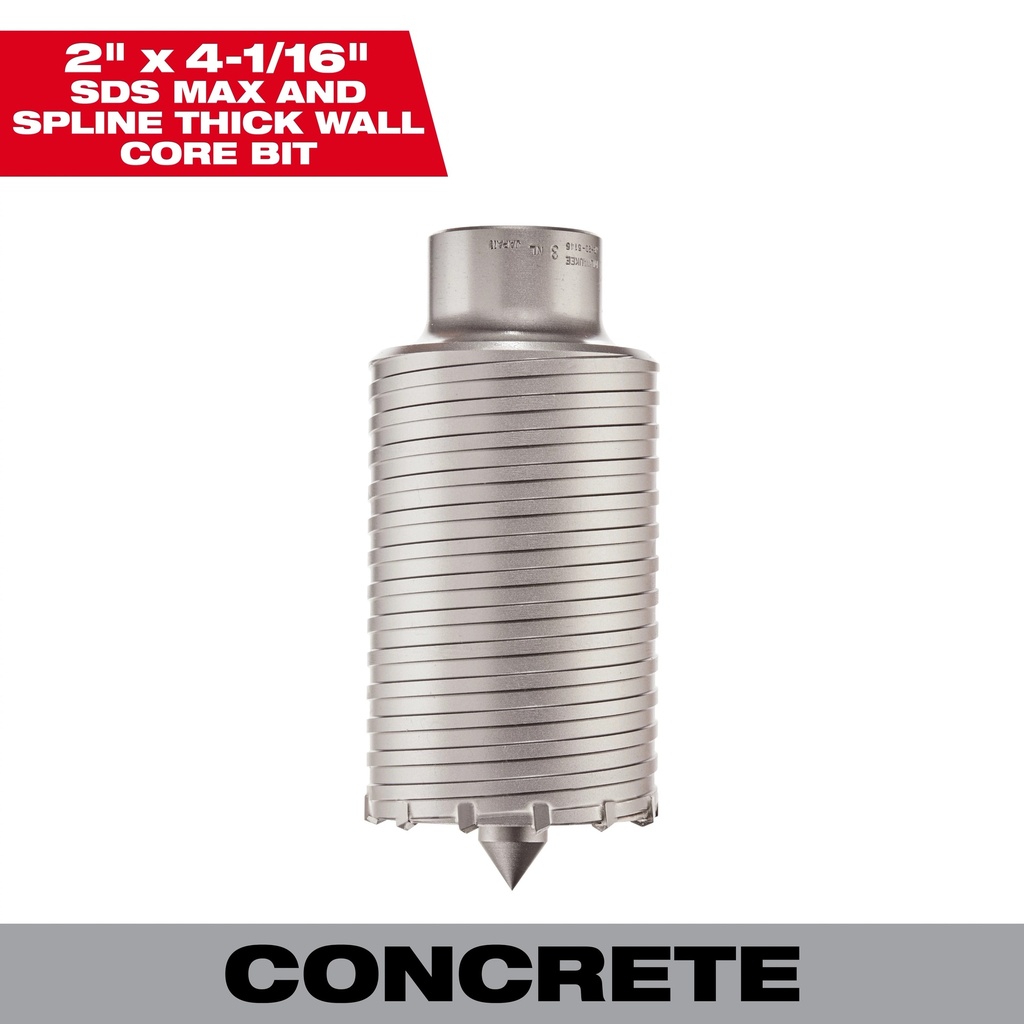

Milwaukee 48-20-5135 SDS Max and SPLINE Thick Wall Carbide Tipped Core Bit 2"

https://www.etisupply.com/web/image/product.template/481970/image_1920?unique=5e9e560

SKU: 48-20-5135

  • 2" Diameter
  • Includes Core Body with Guide Plate & Centering Pin
  • Thick Wall Design
  • Usable Cuting Depth 4-1/16"
  • Use with 12" or 18" Spline Adapter Shanks (48-03-3564, 48-03-3565 ) and 12" or 18" SDS Max Adapter Shanks (48-03-3572, 48-03-3573)
  • Use With 7-1/2" Extension 48-95-6085
  • Use With Guide Plate 48-20-5170 and Centering Pin 48-20-5199

$ 145.56 145.56 USD $ 145.56 $ 230.40

Not Available For Sale

($ 145.56 / Units)
  • Brand

This combination does not exist.

Milwaukee Tool SDS-Max SDS
Contact Us
Milwaukee Tool


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

48-20-5135

SDS Max and SPLINE Thick Wall Carbide Tipped Core Bit 2"

Milwaukee®'s SDS-Max and Spline Thick Wall Core Bits are used for drilling large through holes into brick, block, concrete. Includes core bit, guide plate, and centering pin.

Specifications

  • Height: 8 in (20.3 cm)
  • Length: 2.5 in (6.3 cm)
  • Width: 2.5 in (6.3 cm)
  • Weight: 2.325 lb (1.05 kg)
  • Bit Diameter: #2
  • Bit Group: Core Body with Guide Plate and Centering Pin
  • Bit Size: 2"
  • Bit Style: Thick Wall for SDS-MAX or Spline
  • Bit Type: Percussion
  • Drill Bit Depth: 4-1/16"
  • Drilling Depth: 4.0625 in
  • Kit Type: Non-Kit
  • Number of Pieces Included: 1
  • Shank Size: 45/64"
  • Warranty: No Warranty
  • Useable Length: 4.0625 in
  • Group: Core Body with Guide Plate and Centering Pin
  • Cutting Depth: 4.0625 in
  • Size: 2"
  • Diameter: 2"
  • Depth: 4-1/16"
  • Material Composition: Carbide Tipped
  • Style: Thick Wall for SDS-MAX or Spline
