Milwaukee 48-20-2172 SDS MAX Vacuum Bit 1-3/8" x 27" x 35"

https://www.etisupply.com/web/image/product.template/502457/image_1920?unique=be2b9b7

SKU: 48-20-2172

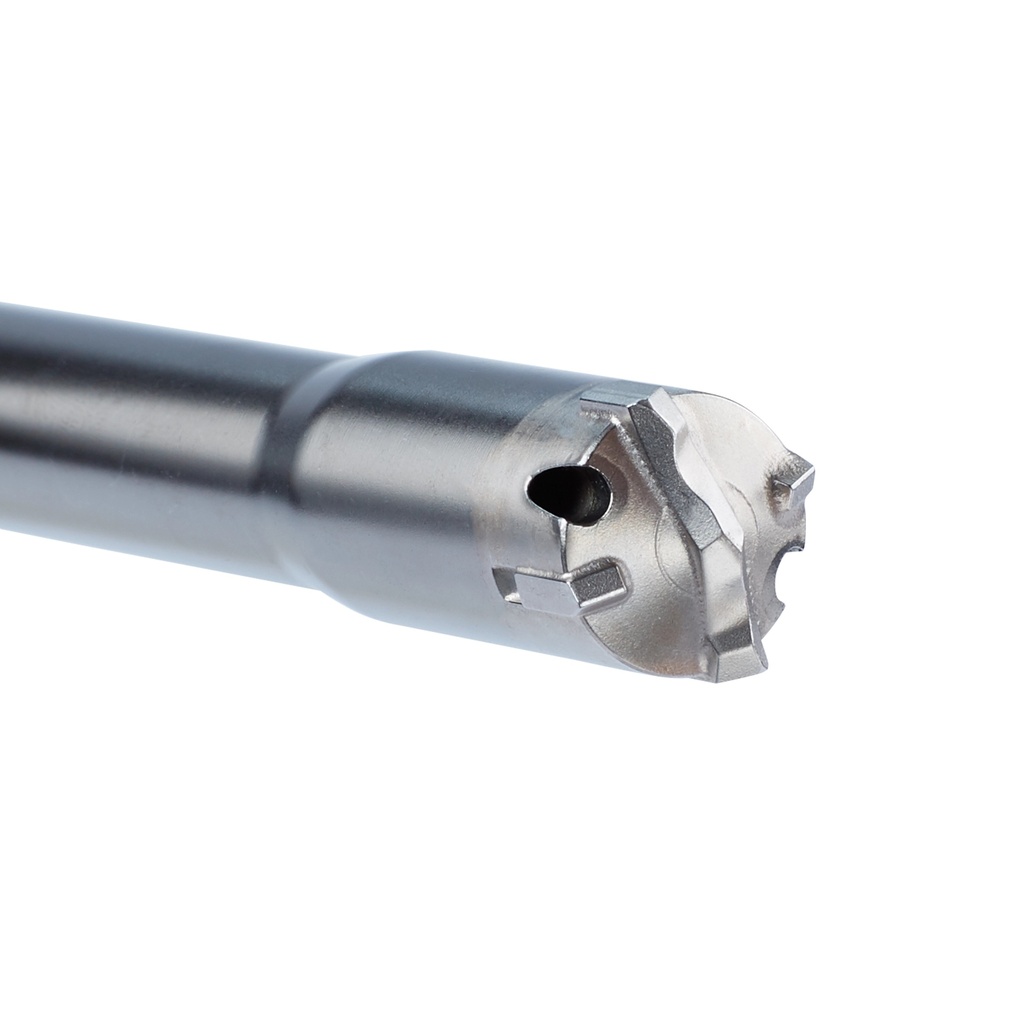

  • 4-cutter carbide tip for long life in concrete and concrete with rebar applications
  • ANSI specificed to fit common anchors
  • Dust extraction holes remove dust from the hole while drilling
  • OSHA Table 1 compliant drilling solution for the regulation on respirable crystalline silica dust (29 CFR 1926.1153)
  • Replacement adapter available (48-20-2150)
  • Universal adapter fits most common dust extractor vacuums
  • Up to 2x faster chemical anchor preparation due creating a clean hole while drilling
  • Use in SDS-Plus Rotary Hammers in rotary hammer mode

$ 327.74 327.735 USD $ 327.74 $ 502.60

Not Available For Sale

($ 327.74 / Units)
  • Brand

This combination does not exist.

Milwaukee Tool SDS-Max SDS
Contact Us
Milwaukee Tool


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

48-20-2172

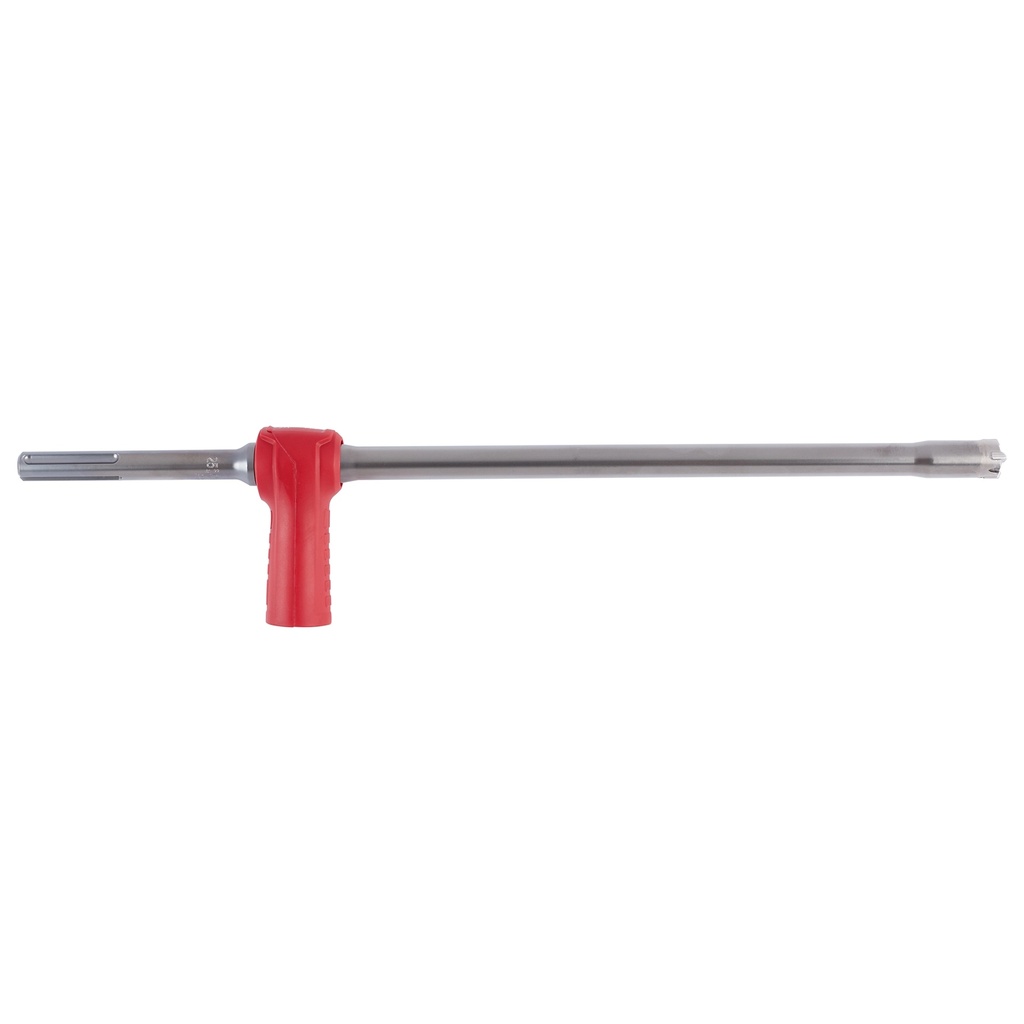

SDS Max Vacuum Bit 1-3/8" x 27" x 35"

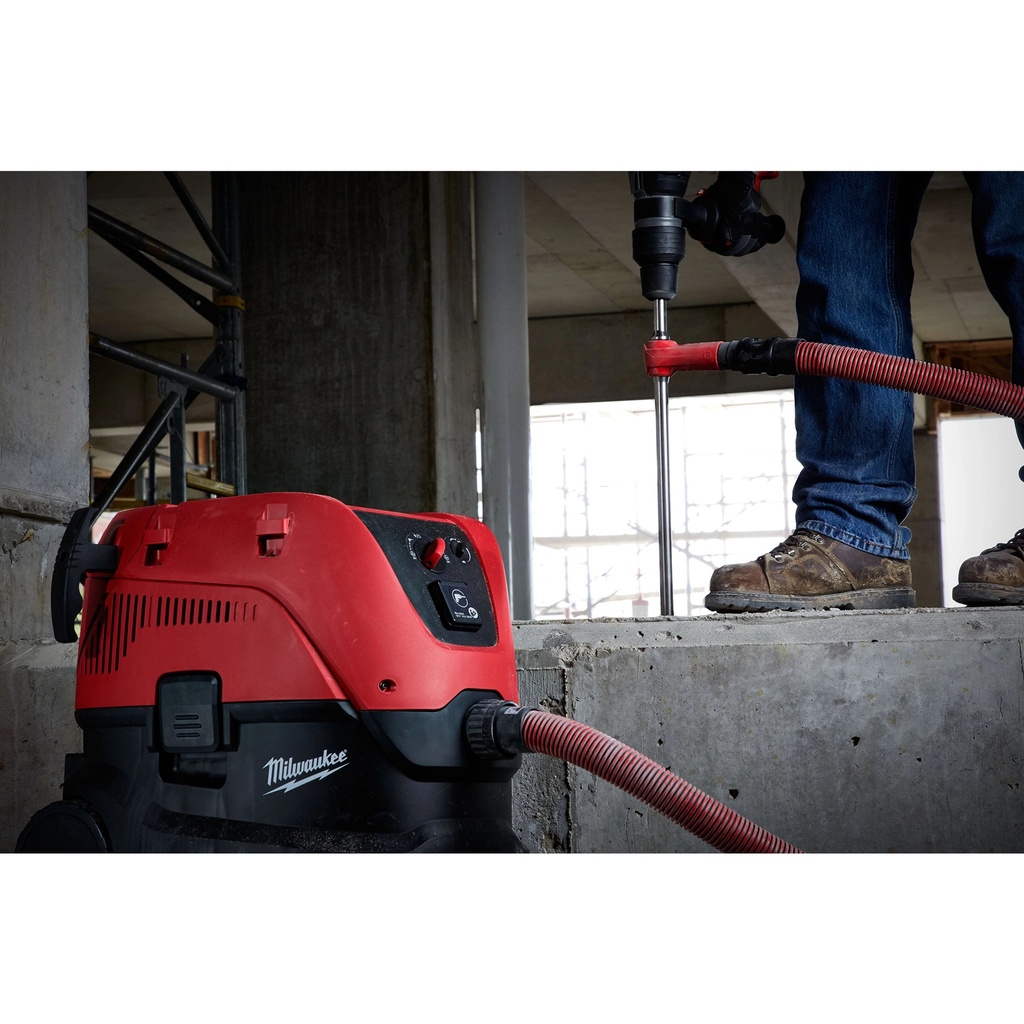

The Milwaukee® Vacuum Drill Bits reduce airborne silica dust and provide increased productivity during the chemical anchor preparation process. The combination of dust extraction holes at the bit tip and the hollow shaft design allow dust to be removed through the bit while drilling holes, reducing airborne silica dust in the process. Milwaukee® Vacuum Drill Bits are an OSHA Table 1 compliant solution when used with dust extraction vacuums. Additionally, Vacuum Drill Bits leave clean holes which are ready for the chemical anchor installation, removing the need to use standard drill bits with the “blow-brush-blow” cleaning method, delivering up to 2x faster chemical anchor preparation. The 4-Cutter tip designs delivers durability in concrete and concrete with rebar applications. The universal adapter fits most common dust extractor attachments.

Specifications

  • Height: 1.63 in (4.1 cm)
  • Length: 35 in (88.9 cm)
  • Width: 35 in (88.9 cm)
  • Weight: 5.2 lb (2.36 kg)
  • Bit Diameter: 1 3/8"
  • Bit Group: SDS MAX Vacuum Bits
  • Bit Length: 35
  • Brand Model Compatibility: SDS-Max Drills
  • Color: Red
  • Drill Bit Type: 4-Cutter
  • Drilling Depth: 35 in
  • Flute Length: 27 in
  • Kit Type: Non-Kit
  • Number of Pieces Included: 1
  • Overall Bit Length: 3-1/2"
  • Pack Quantity: 1
  • Shank Size: 3/4"
  • Shank Length: 2 in
  • Shank Style: SDS Max
  • Useable Length: 27-1/2"
  • Warranty: No Warranty
  • Group: SDS MAX Vacuum Bits
  • Cutting Depth: 35 in
  • Pack Qty: 1 Pack
  • Diameter: 1-3/8"
  • Material Composition: Carbide|Steel|Rubber
  • Shank: SDS Max

Brand Milwaukee Tool
