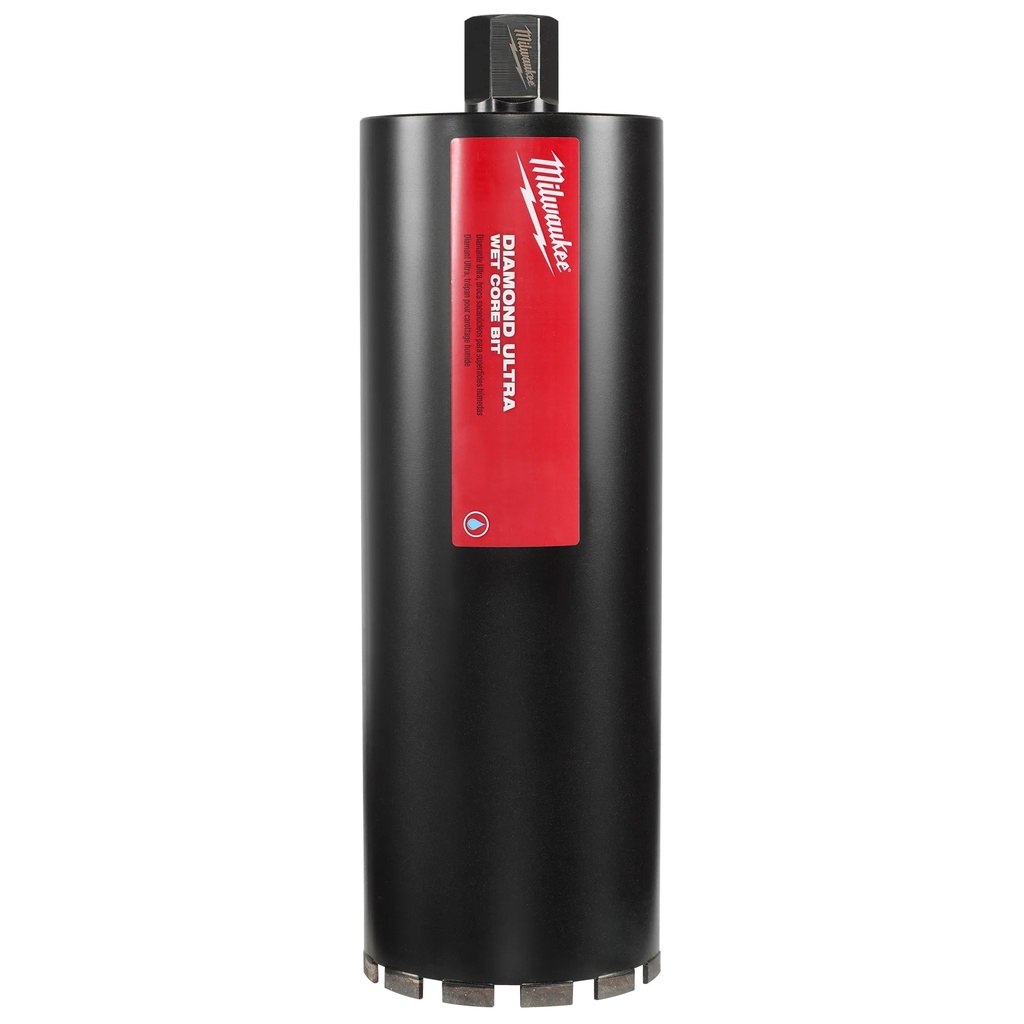

3-1/2" DIAMOND ULTRA™ Wet Core Bit

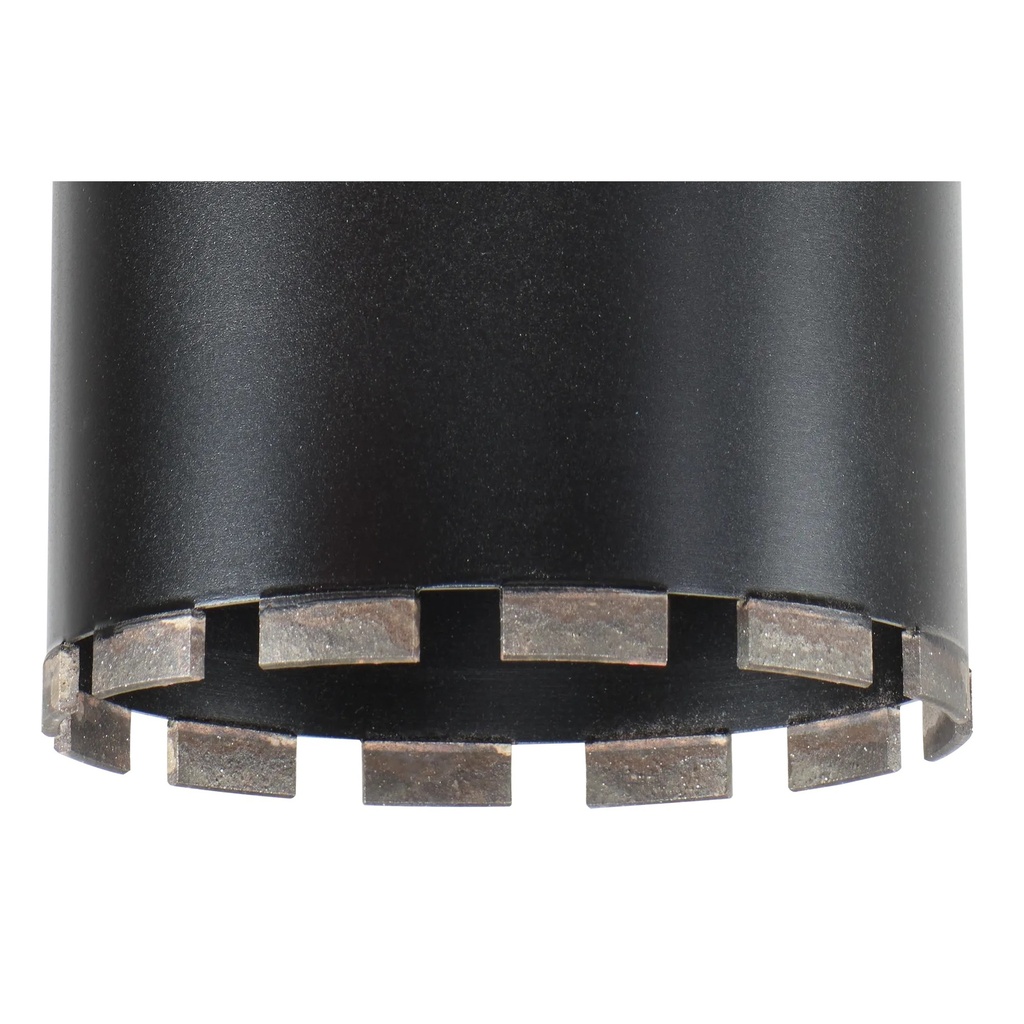

Our Diamond Ultra™ Wet Core Bits are engineered using only top-quality diamonds to provide the fastest drilling and maximum run time. The thin kerf, segmented diamond rim and laser weld allow for faster holes in concrete, rebar, and even solid steel. These core bits deliver up to 20% longer run-time vs. our previous generation of wet core bits. The Milwaukee® Diamond Ultra™ Wet Core Bits are designed for use with MX FUEL™ Core Drills and corded core drills for maximum versatility. The Diamond Ultra™ Core Drill Bit sizes range from 5/8” to 14” to meet all your needs when drilling into even the toughest materials. Sizes from 5/8” – 1-1/2” are compatible with all core drills with a 5/8”-11 thread. Sizes from 2” – 14” are compatible with all core drills with a 1-1/4”-7 thread. Designed for wet use only.

Specifications

• Height: 18.7 in (47.5 cm)
• Length: 3.5 in (8.9 cm)
• Width: 3.5 in (8.9 cm)
• Weight: 4.62971 lb (2.10 kg)
• Arbor Hole Diameter: 1-1/4 in
• Bit Diameter: 3 1/2"
• Bit Length: 18.7
• Bit Type: Core
• Drilling Depth: 16 in
• Kit Type: Non-Kit
• Material Application: Concrete
• Number of Pieces Included: 1
• Overall Bit Length: 18.7
• Pack Quantity: 1
• Shank Size: 1 1/4"
• Shank Length: 6 in
• Shank Style: Hex
• Threads Per Inch: 7 TPI
• Warranty: No Warranty
• Pack Qty: 1
• Size: 3 1/2"
• Max RPM: 750
• Thread: 1-1/4"-7
• Material Composition: Diamond Coated
