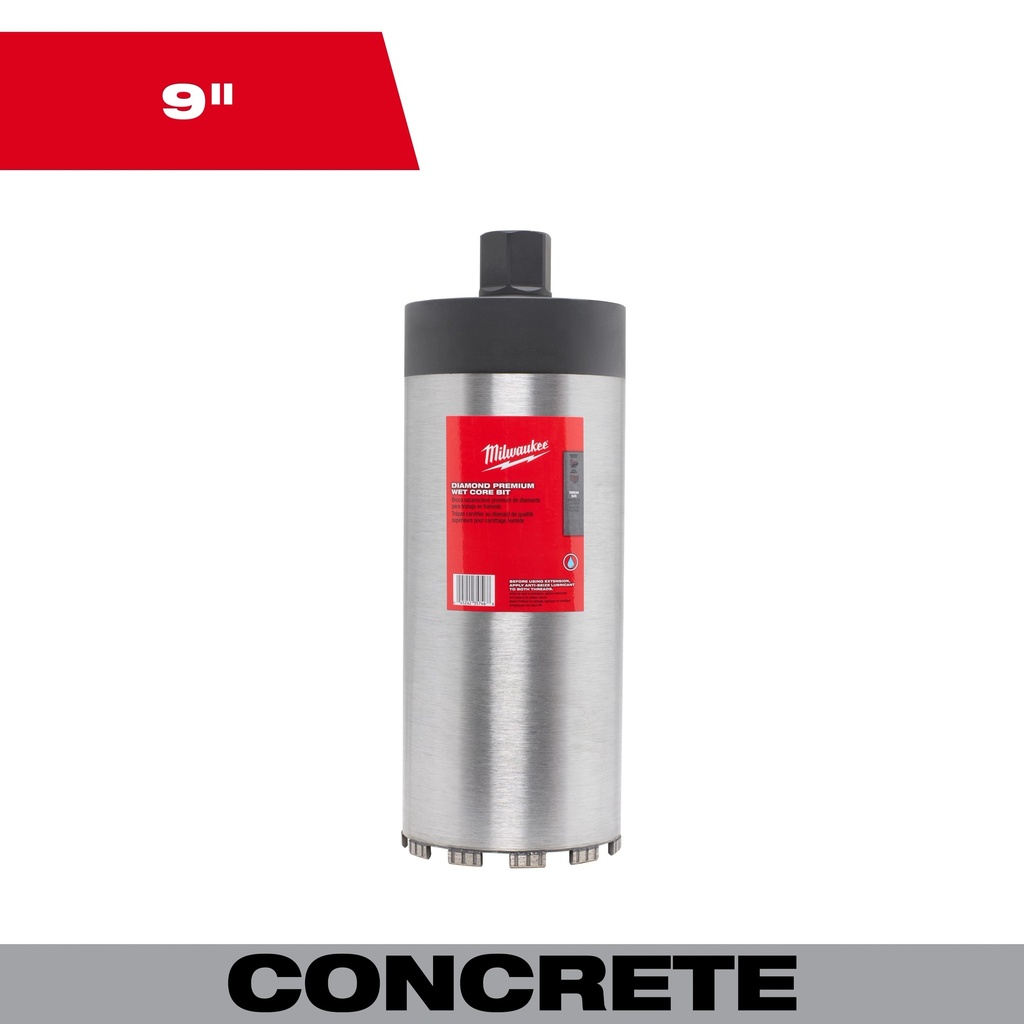

9" Diamond Premium Wet Core Bit

Our Diamond Premium Wet Core Bits are designed to the highest standards, only using quality diamonds. Available in sizes 3/4" - 14", Diamond Premium Wet Core Bits offer exceptional drilling life and speed in cured concrete with hard aggregate and medium steel reinforcement. Designed with a threaded cap for easily extending the core bit. Designed for use with MX FUEL™ Core Drills and corded core drills for maximum versatility. Sizes from ¾” – 1-1/2” are compatible with all core drills with a 5/8”-11 thread. Sizes from 2” – 14” are compatible with all core drills with a 1-1/4”-7 thread. Designed for wet use only.

Specifications

• Height: 10.5 in (26.7 cm)
• Length: 15 in (38.1 cm)
• Width: 10.5 in (26.7 cm)
• Weight: 23 lb (10.43 kg)
• Arbor Hole Diameter: 1-1/4 in - 7
• Bit Diameter: 9"
• Bit Length: 17 in.
• Bit Size: 9"
• Bit Type: Core
• Drill Bit Type: Core
• Drilling Depth: 15 in
• Kit Type: Non-Kit
• Material Application: Concrete
• Number of Pieces Included: 1
• Shank Size: 1 1/4"
• Shank Length: 2 in
• Shank Style: Threaded
• Warranty: No Warranty
• Size: 9"
• Material Composition: Diamond Coated|High Carbon Steel
• Arbor Size: 1-1/4" - 7
• Maximum RPM: 505 rpm
