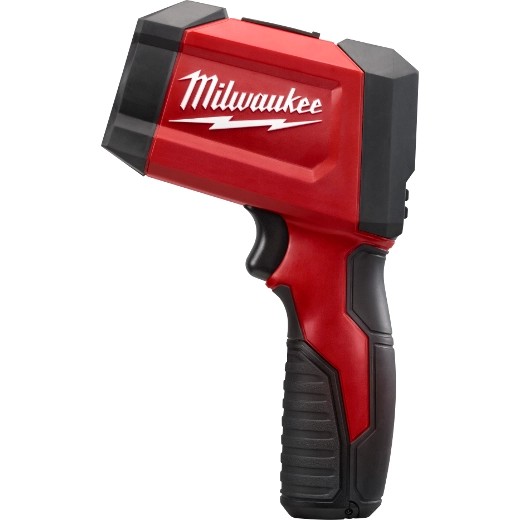

Milwaukee 2269-20 30:1 Infrared/Contact Temp-Gun™
SKU: 2269-20

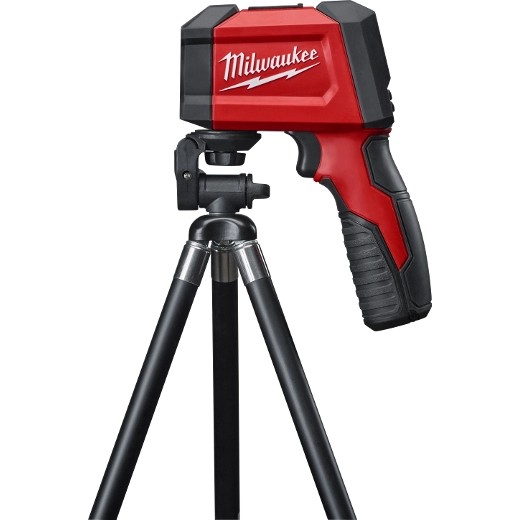

- 1/4-20 Thread for mounting to tri-pods or other accessories

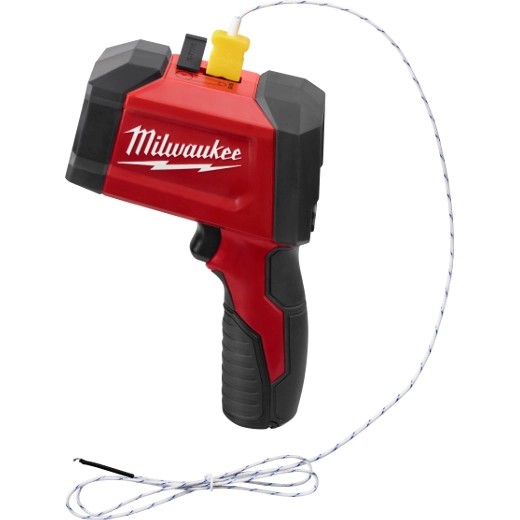

- Additional contact measurement from -40⁰F to 1022⁰F for use in a variety of applications
- Adjustable Emissivity 0.1 to 0.99
- Audible, user-configurable High/Low Temperature Alert
- Fully bumpered nose, shielded LCD Survives 6' ft drops

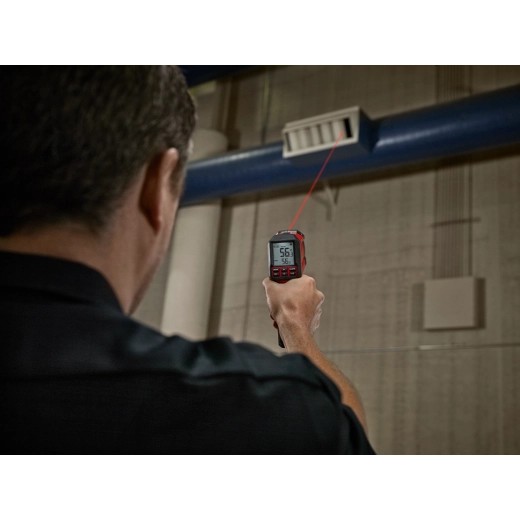

- High performance 30:1 distance-to-spot ratio measures a 1 ft. spot from 30 ft. way
- Hold, Max, Min, Avg, Diff Modes
- Log 99 Measurements for tracking performance
- Measures surface temperatures -40⁰F to 1472⁰F for use in a variety of applications

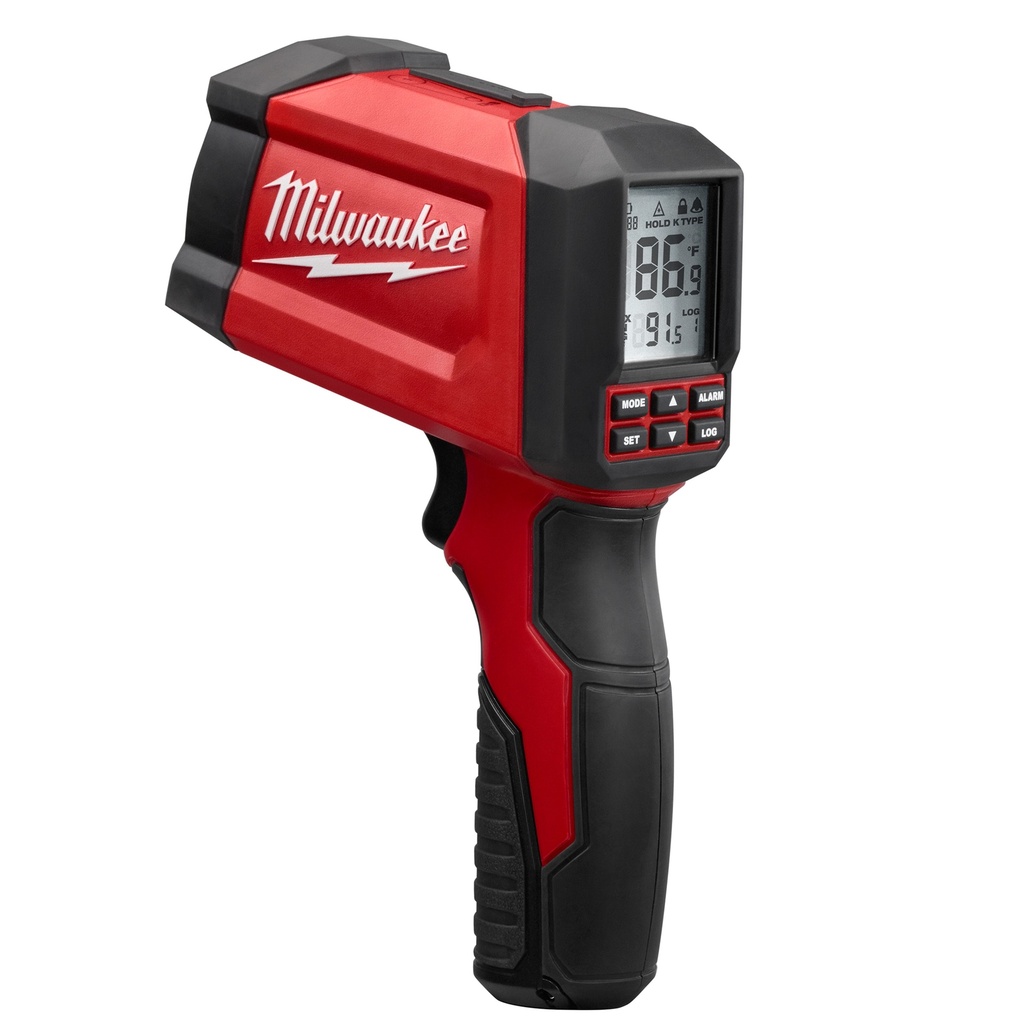

- Premium LCD display for clear readings
2269-20
30:1 Infrared/Contact Temp-Gun™
The MILWAUKEE® Infrared TEMP-GUN™ delivers the clearest screen and more tracking capabilities. With stunning readability indoor & outdoor, this infrared TEMP-GUN™ provides easier readings for professional, residential, commercial and industrial users in any environment. Track performance closer with 4X more built-in measurement storage. With a 7-point reinforced frame, fully bumpered nose, and shielded LCD, the MILWAUKEE® Infrared TEMP-GUN™ survives 6ft drops for superior durability.
Specifications
- Height: 2.5 in (6.3 cm)
- Length: 11 in (27.9 cm)
- Width: 25.7 in (65.3 cm)
- Weight: 0.7188 lb (0.33 kg)
- Battery System: Not Applicable
- Data Logging Capability: Yes
- Number of Pieces Included: 3
- Warranty: 5 Year Limited Warranty
- Tool Warranty: 5 Years
- Battery Type: 9V Alkaline
- Display Type: LCD
- Material Composition: Plastic
- Drop Test: 6'
- Trigger Lock: Yes
- Emissivity: 0.1-0.99 by 0.01
- Battery Life: Greater than 12 hrs (All Functions)
- Alarm HI LO: Yes, Audible
- MIN MAX AVG DIF: Yes
- Display Resolution: 0.1° F (0.1° C)
- Distance to Spot Ratio: 30:1
- Storage Temperature: -4⁰F to 140⁰F
- Laser On Off: Yes
- Data Storage: 99 Measurements
- Basic Accuracy: +/- 2%
- Infrared Temperature Range: -40⁰F - 1472⁰F
- Contact Temperature Range: -22°F to 1020°F
- Rubber Over molding: Yes
- Repeatability: +/-.08%
- Power Source: Cordless
| Brand | Milwaukee Tool |
Operator's Manual-MKE_2269-20 (58-14-2269d1)
Download
