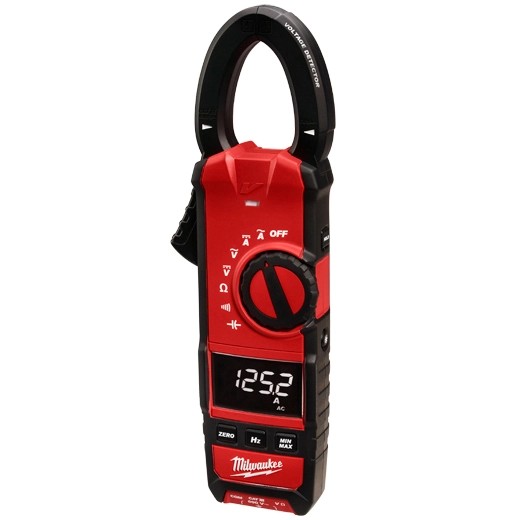

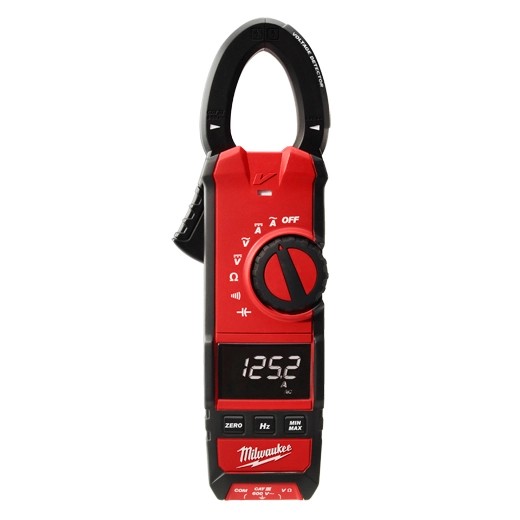

Milwaukee 2237-20NST Clamp Meter (NIST)
SKU: 2237-20NST
- Measures up to 600 amps AC/DC, Large 1.30” jaw opening
- Thin Jaw Profile for easier wire measurement in panels or in bundles
- Wide Voltage range to 600 AC/DC volts
- True-RMS for accurate measurement in all applications
- Built-In Voltage Detector and LED Work Light
- Frequency Measurement
- High Contrast, White on Black Display with Backlight for easy reading
- Rugged over-molding increases durability and user grip
- CAT III 600V for increased safety
2237-20NST
Clamp Meter (NIST)
The Milwaukee Clamp Meter is a heavy duty True-RMS electrical current tester for professional residential, commercial, and industrial applications. The perfect tool for the professional electrician, the 2237-20 Clamp Meter provides a wide 1.3” jaw opening to easily handle large conductors, a thin jaw profile for access to tight spaces and a high contrast white-on-black display for clearer readings. In addition, the Milwaukee Clamp Meter was designed with embedded non-contact voltage detection and an LED work light to increase end user productivity. Covered by Milwaukee 5-Year Warranty.
Specifications
- Height: 2.05 in (5.2 cm)
- Length: 15 in (38.1 cm)
- Width: 7.5 in (19.1 cm)
- Weight: 1.485 lb (0.67 kg)
- Dispaly: Reverse Black LCD
- Number of Pieces Included: 1
- Operating Temperature: 14 Degrees to 122 Degrees F
- Warranty: 5 Year Limited Warranty
- Tool Warranty: 5 Years
- Battery Type: Alkaline (AA)
- Display Type: High Contrast White on Black
- Switch Type: Dial
- TRMS: Yes
- Jaw Size: 1.3"
- Safety Rating: CAT III 600V
- Current AC: 600A
- Current AC DC: 600A
- Voltage AC DC: 600V
- Frequency: Yes
- Resistance: 6 kΩ
- Continuity: Yes
- Capacitance: Yes
- Hold: Yes
- Display Backlight: Yes
- Non Contact Voltage: Yes
- LED Work Light: Yes
- Rugged Over molding: Yes
- Indication: Visual (for NCVD)
| Brand | Milwaukee Tool |
