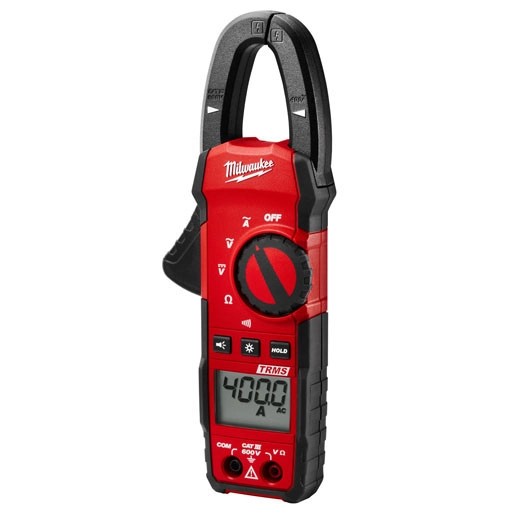

Milwaukee 2235-20NST 400 Amp Clamp Meter Kit (NIST)
SKU: 2235-20NST
- Measures up to 400 amps AC, Large 1.0” jaw opening
- Thin Jaw Profile for easier wire measurement in panels or in bundles
- Wide Voltage range to 600 AC/DC volts
- True-RMS for accurate measurement in all applications
- Built-In LED Work Light
- CAT III 600V for increased safety
- Black on White Display with Backlight for easier reading
- Rugged over-molding increases durability and user grip
400 Amp Clamp Meter Kit (NIST)
Heavy duty True-RMS electrical current tester for professional residential, commercial, and industrial applications. The perfect tool for the professional electrician; includes all the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2235-20 clamp meter features: jaw size of 1.0 in. measuring up to 350 MCM cable; rated cat III 600 V; current measurement to 400 A AC; voltage measurement to 600 V AC/DC; LED work light to improve task lighting; resistance measurement to 4000 ohms; test for continuity; black on white display and backlight for easier reading; rugged over-molding for increased durability and user grip; includes one (1) electrical test lead set, two (2) AAA batteries, and manual; covered by 5 year warranty.
Specifications
- Height: 3.3 in (8.4 cm)
- Length: 10.1 in (25.7 cm)
- Width: 11.1 in (28.2 cm)
- Weight: 1.27 lb (0.58 kg)
- Color: Black
- Number of Pieces Included: 1
- Warranty: 5 Year Limited Warranty
- Tool Warranty: 5 Years
- Battery Type: Alkaline (AAA)
- Display Type: Black on White Display
- Switch Type: Dial
- TRMS: Yes
- Jaw Size: 1"
- Safety Rating: CAT III 600V
- Current AC: 400A
- Voltage AC DC: 600V
- Resistance: 400Ω
- Continuity: Yes
- Hold: Yes
- Display Backlight: Yes
- LED Work Light: Yes
- Rugged Over molding: Yes
- Indication: Audible
| Brand | Milwaukee Tool |
