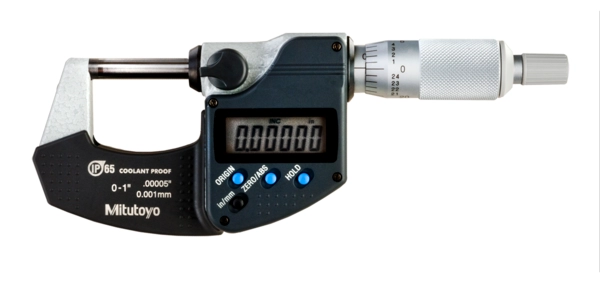

Mitutoyo 293-340-30 Digital Micrometer IP65 Inch/Metric 0-1", w/o Output
Description
A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.Features
| Digital/Analog: | Digital |
| Delivered: | Including box, spanner, SR44 battery, setting standard, certificate of inspection |
| Inch-Metric: | Inch/Metric |
| Range: | 0 - 1 " |
| Digital step: | 0,00005"/0,001 mm |
| Max. Permissible Error J MPE: | ±0,00005" |
| Flatness: | 0,000012" |
| Parallelism: | 0,00004" |
| Display: | LCD, character height 7.5 mm |
| Measuring face: | Carbide-tipped, micro-lap finish |
| Measuring spindle: | With spindle lock, ø6,35 mm, spindle pitch 0,5 mm |
| Scale: | Thimble and sleeve satin chrome finish, ø18 mm |
| Measuring force: | 5 - 10 N |
| Power supply: | 1 battery SR-44 |
| Battery life: | Approx. 2.4 years for models ≤4" 1.2 years for >4" |
| ABS / INC (INC ZERO): | Yes |
| Auto Power OFF after 20 min. non use: | Yes |
| Low voltage alarm: | Yes |
| Function lock: | Yes |
| HOLD: | Yes |
| 2 x PRESET (over 100 mm): | Yes |
| Mass: | 270 g |
| L: | 0 mm |
| a: | 6,5 mm |
| b: | 25 mm |
| c: | 2.5 mm |
