SPXV020

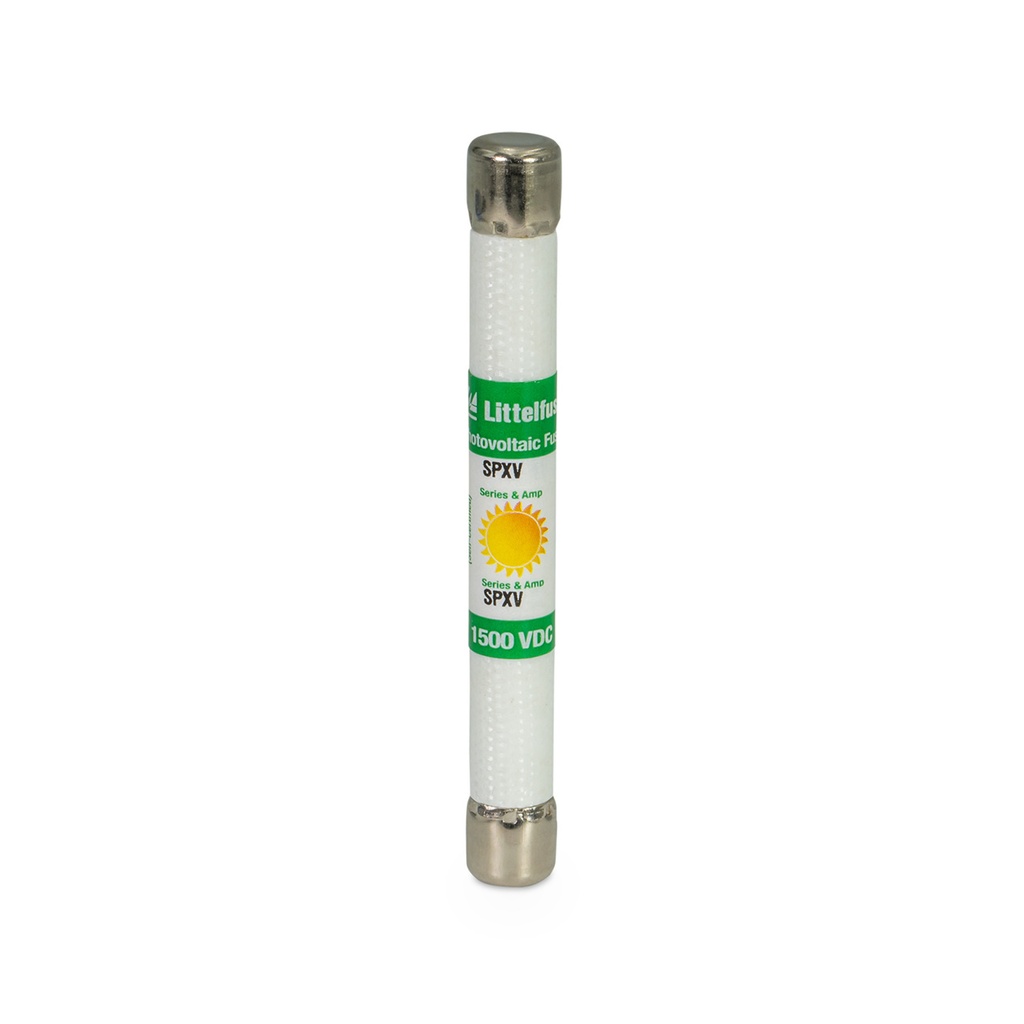

1500 VDC 20 AMP PHOTOVOLTAIC FUSE | Series: SPXV

The Littelfuse SPXV solar string fuse is designed specifically for 1–60 A 1500 V dc applications.

Property	Value
Current Rating (Continuous) in Amps	20
Interrupting Rating	50 kA
Opening	Fast-Acting (F)
Voltage Rating (V)	1500
Amp Code (Part Number)	20
Body Material	Melamine
Family style	Solar Protection
IEC Standard	60269-6
Indicating	No
interrupt Voltage Type AC/DC) - 1	DC
interrupt Voltage (V) -1	1500
Mounting Method	Fuse Block

Brand

Littelfuse
