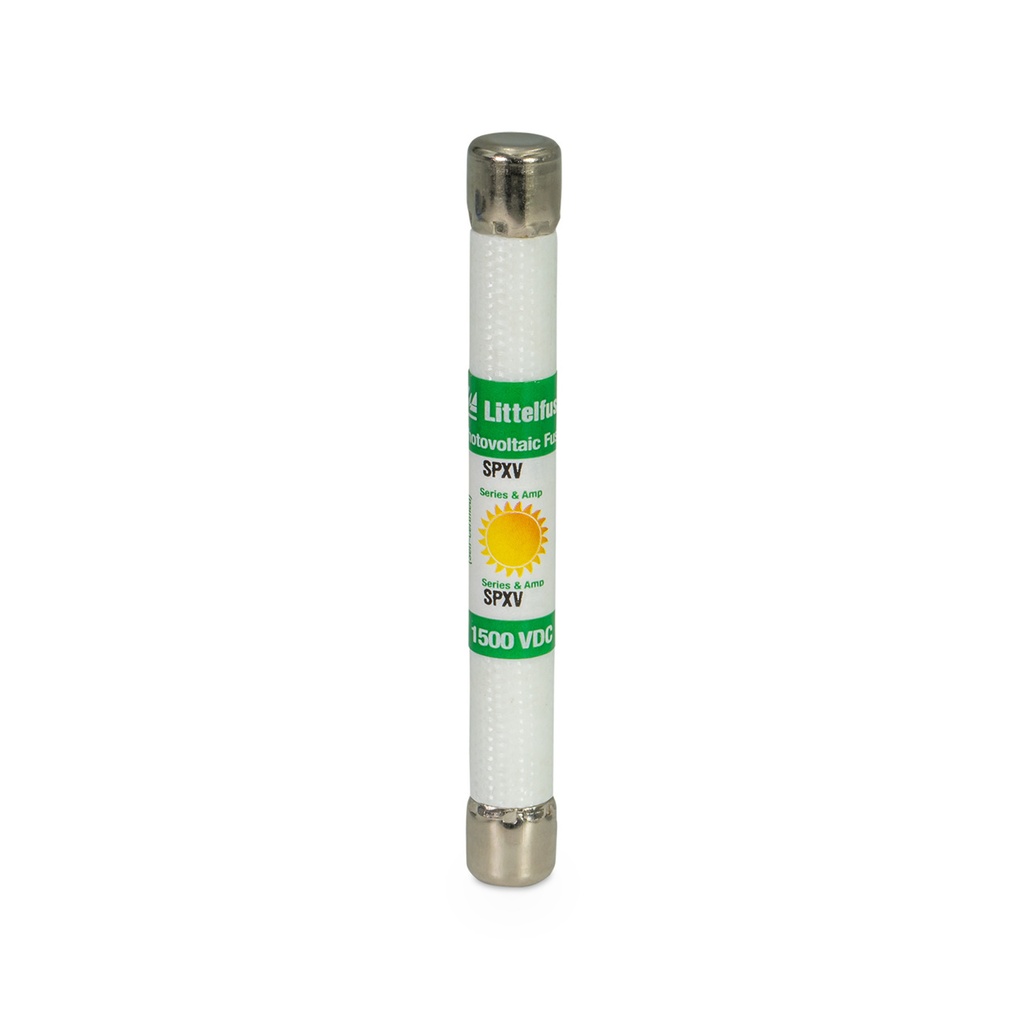

Littelfuse SPXV020 Photovoltaic Fuse 1500VDC 10x85 20A
SPXV020
1500 VDC 20 AMP PHOTOVOLTAIC FUSE | Series: SPXV
The Littelfuse SPXV solar string fuse is designed specifically for 1–60 A 1500 V dc applications.
Specifications
Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 20 |
Interrupting Rating | 50 kA |
Opening | Fast-Acting (F) |
Voltage Rating (V) | 1500 |
Amp Code (Part Number) | 20 |
Body Material | Melamine |
Family style | Solar Protection |
IEC Standard | 60269-6 |
Indicating | No |
interrupt Voltage Type AC/DC) - 1 | DC |
interrupt Voltage (V) -1 | 1500 |
Mounting Method | Fuse Block |
Features
- UL 248-19 Listed
- 50 kA interrupting rating
SPXV020 Applications
- Inverters
- Combiner boxes
Resources
Specifications
| Brand | Littelfuse |
