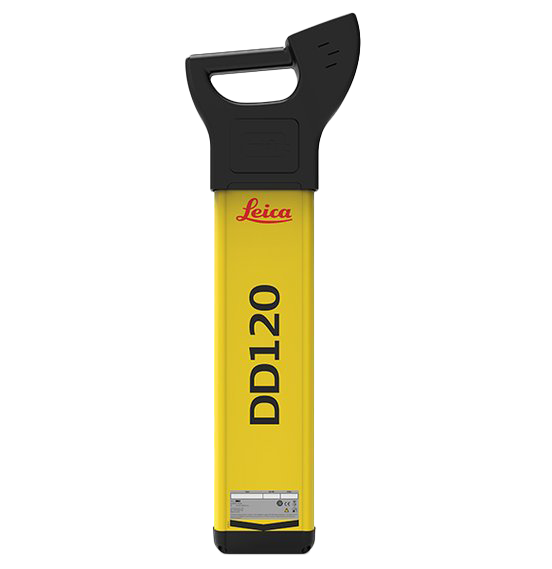

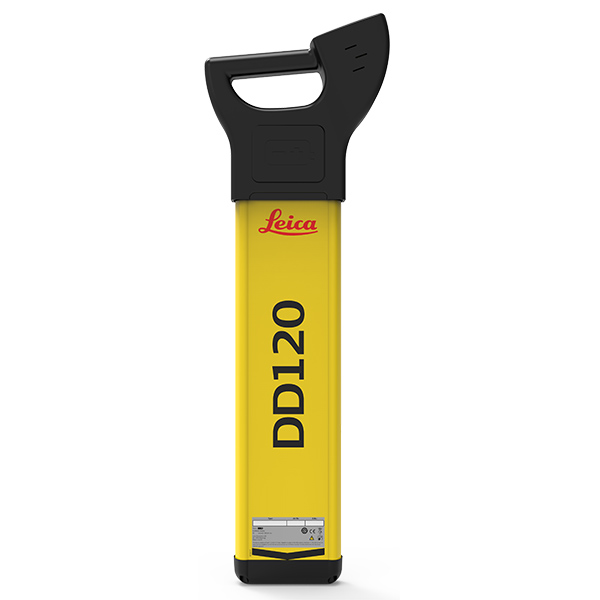

Leica Detect DD120 (60Hz) Depth Package
SKU: 6014155
- Ease of Use – minimal adjustment; no sensitivity control to miss services
- In-built Self Test
- Signal Strength Indication (SSI) numeric readout
- Hazard Zone – alert for shallow services within 30cm
- Modes: Auto, Power, Radio, Transmitter
- Depth estimation with signal transmitter or sonde (line 0.3–3 m, ±10%)
- Power: 60 Hz mains and harmonics
- Radio: 15–60 kHz
- Transmitter: 33 kHz, 8 kHz
- IP54; 6x AA; ~15h; dimensions 85 x 250 x 760 mm
6014155

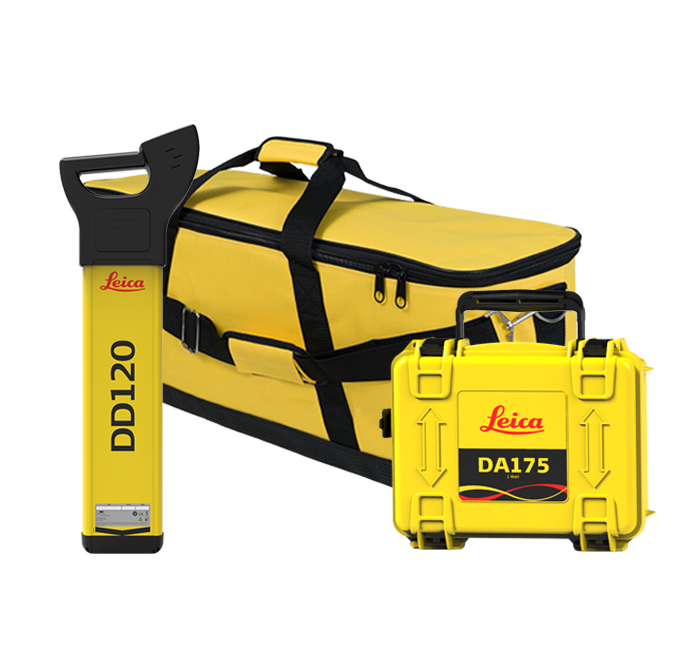

Leica Detect DD120 (60Hz) Depth Package
Combines the DD120 locator with a DA175 transmitter for depth estimation and enhanced signal detection. Suitable for locating buried cables and pipes before excavation.
Specifications
- Article Number: 6014155
- Package: Depth Package (60 Hz)
- Included: DD120 Utility locator, DA175 1W signal transmitter, System carry bag, Alkaline Batteries, User Manuals
- Modes: Auto, Power, Radio, Transmitter
- Power: 60 Hz mains electrical and harmonics
- Radio: 15 kHz to 60 kHz
- Transmitter: 33 kHz, 8 kHz
- Depth Estimation: Line 0.3 m to 3 m (±10%, undistorted signal); with transmitter or sonde
- Hazard Zone: Alert for shallow services within 30 cm
- Signal Strength Indication: Numeric SSI readout
- Self Test: In-built
- Display: Monochrome panel; 2 membrane push buttons
- Audio: 85 dBA @ 30 cm
- Battery: 6x AA alkaline; ~15 hours typical
- Protection: IP54
- Operating Temperature: -4 °F to +122 °F (-20 °C to +50 °C)
- Dimensions: 3.4 x 10 x 30 in (85 x 250 x 760 mm)
- Weight: 6.61 lb (3.0 kg)
- Warranty: One year
