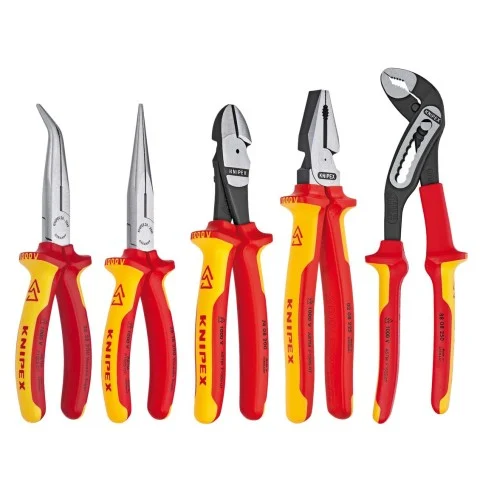

5 Pc 1000V Insulated Pliers Set

9K 00 80 142 US

• Professionals trust their tools when working on electrical installations. The insulation of KNIPEX insulated tools is designed in accordance with national and international standards to reduce risk of injury if the tools make contact with an energized source with voltage up to 1000 volts. Includes one (1) of each: High Leverage Combination Pliers, Long nose Pliers with Cutter, Angled Long Nose with Cutter, High Leverage Diagonal Cutters and Alligator® Water Pump Pliers
• 02 08 225 US - 9" High Leverage Combination Pliers-1000V Insulated
• 35% less effort required than with conventional combination pliers, enabling easier cutting, strong gripping, bending, and pulling
• Long cutting edges for thicker cables and gripping zones for flat and round material for a variety of uses
• 26 18 200 US - 8" Long Nose Pliers with Cutter-1000V Insulated and 26 28 200 SBA - Long Nose 40° Angled Pliers with Cutter-1000V Insulated
• Elastic tips remain stable even when twisted, along with half-round pointed jaws and hardened cutting edges (approx. 61 HRC)
• Slim long nose is ideal for working in confined areas
• 74 08 200 US - 8" High Leverage Diagonal Cutters-1000V Insulated
• 20% less effort required compared to conventional diagonal cutters of the same length
• More output and comfort compared to conventional water pump pliers of the same length
• 88 08 250 US - 10" Alligator® Water Pump Pliers-1000V Insulated
• Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire
• Offers 9 adjustment positions for 30% more gripping capacity

Technical details

• Part Number: 9K 00 80 142 US
• UPC: 843221027063
• Country of Origin: Germany
• Width: 4 1/2"
• Height: 4 1/4"
• Weight: 4.3 lbs.
• 1000 Volt Insulated: Yes
• ESD Indicator: No
• Material Type: Chrome vanadium electric steel, forged, oil-hardened|Chrome vanadium heavy-duty steel, forged, oil-hardened|High-grade special tool steel, forged, multi stage oil-hardened|Vanadium steel, forged, multi stage oil-hardened
• Handle Type: 1000V Insulated, multi-component, ASTM
• Gripping Surface: Serrated
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• Joint Type: Box-joint|Rivet|Forged-in axle
• Cutting Capacity - Piano Wire: 3/32" (02 08 225 US and 74 08 200 US)
• Cutting Capacity - Hard Wire (Steel Wire): 1/8" (02 08 225 US and 74 08 200 US); 3/32" (26 18 200 US and 26 28 200 SBA)
• Cutting Capacity - Medium Hard Wire (Nail): 1/8" (26 18 200 US and 26 28 200 SBA); 11/64" (74 08 200 US)
• Cutting Capacity - Cu and Al conductor: 35/64" (02 08 225 US)
• Cutting Edge Shape: Bevel
• Jaw Type: Half-round
• Jaw Length: 2 7/8" (26 18 200 US)
• Jaw Width: 45/64" (26 18 200 US)
• Jaw Thickness: 3/8" (26 18 200 US)
• Tip Thickness: 3/32" (26 18 200 US)
• Tip Width: 1/8" (26 18 200 US)
• Angled Head: 40 degree (26 28 200 SBA)
• Max Jaw Opening - Round Pipe: 1 31/32" (88 08 250 US)
• Max Jaw Opening - Hex: 1 13/16" (88 08 250 US)
• DIN:  DIN ISO 5746 (02 08 225 US); DIN ISO 5745 (26 18 200 US); DIN ISO 5749 (74 08 200 US); DIN ISO 8976 (88 08 250 US)
• Reach: does not contain SVHC
• RoHS: not applicable
